CS2: SPARE PARTS, TECHNICAL DRAWINGS
CS2: PARTI DI RICAMBIO E DISEGNI TECNICI

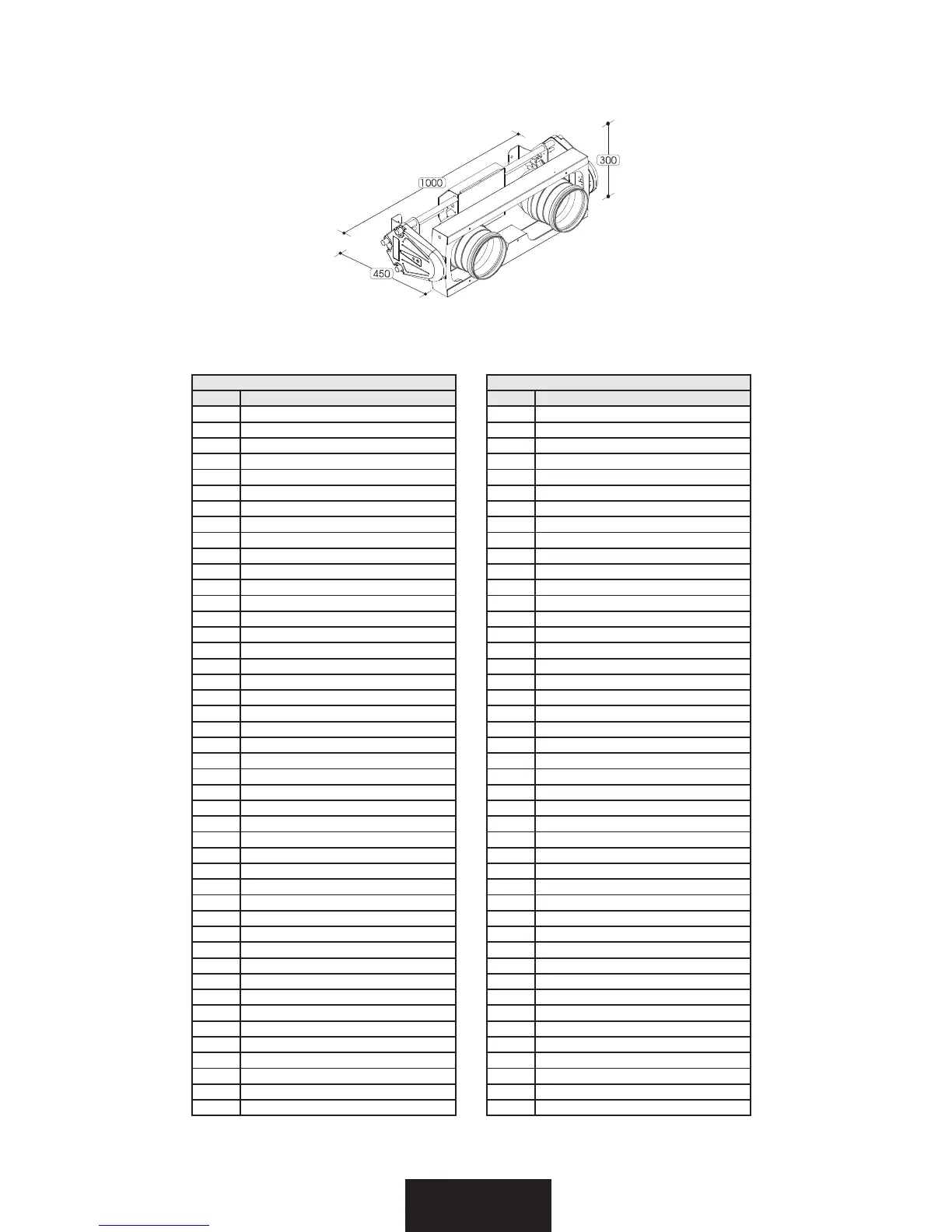

--- CS/2 ---
N. Description
1 base structure
2 fan grille
3 fan
4 voltage transformer
5 fixing plate
6 connecting terminal
7 lateral motor plate
8 lateral block plate
9 EMC filter
10 tilt motor
11 tilt flywheel
12 pulley
13 belt 230XL
14 spacer
15 encoder
16 PCB encoder
17 lateral cover
18 label
19 spiral spring
20 belt stretcher
21 ball bearing
-
23 wire protection plate
24 tilt gear
25 protection cable
26 tilt stop plate
27 bearing
28 tilt hub
29 dimmer transformer coil
30 dimmer PCB
31 heat dissipator
32 display panel
33 electronic cover plate
34 DMX panel
35 electronic cover
36 DMX connector plate
37 jack input connector (female)
38 fuse holder
39 speakon power connector
40 input power connector
41 fixing bracket
42 fast lock
43 fast lock sliding ring
--- CS/2 ---
N. Description
50 lamps cable
51 motors cables
-
60 head structure
61 lateral cover
62 lateral cover (shaped)
63 motor cover
64 pan gear
65 pan fixing flange
66 pan ball bearing
67 pan idler
68 spiral spring
69 ball bearing
70 encoder board
71 pulley
72 spacer
73 encoder
74 belt 230XL
75 surface raceway
76 surface raceway cover
77 pan hub
78 pan motor
79 pan flywheel
80 lock structure
81 stop pin
82 pan spacer
83 pan stop flange
-
85 spot complete
86 colour filter fixing ring
87 lamp stop spring
