Studiomaster XR-80 - Features; System Options; Operating Instructions; Receiver Features: Front & Rear Panel

1. Features
2
• High Quality UHF Band Frequency Duet Wireless Microphone System.
• 80+ UHF selectable channels.
• UHF Operating Frequency Range: 583-683MHZ.
• Two microphones can be used at the same time.
• Individual Channel Output with Level Control & Mix Output.
• Display for channel number indication, transmitter reception indication (RF) and Audio level indication (AF).
2. System Options
Model :
• XR - 80 HH (Handheld + Handheld)
• XR - 80 HL (Handheld + Lapel).
3. Operating Instructions

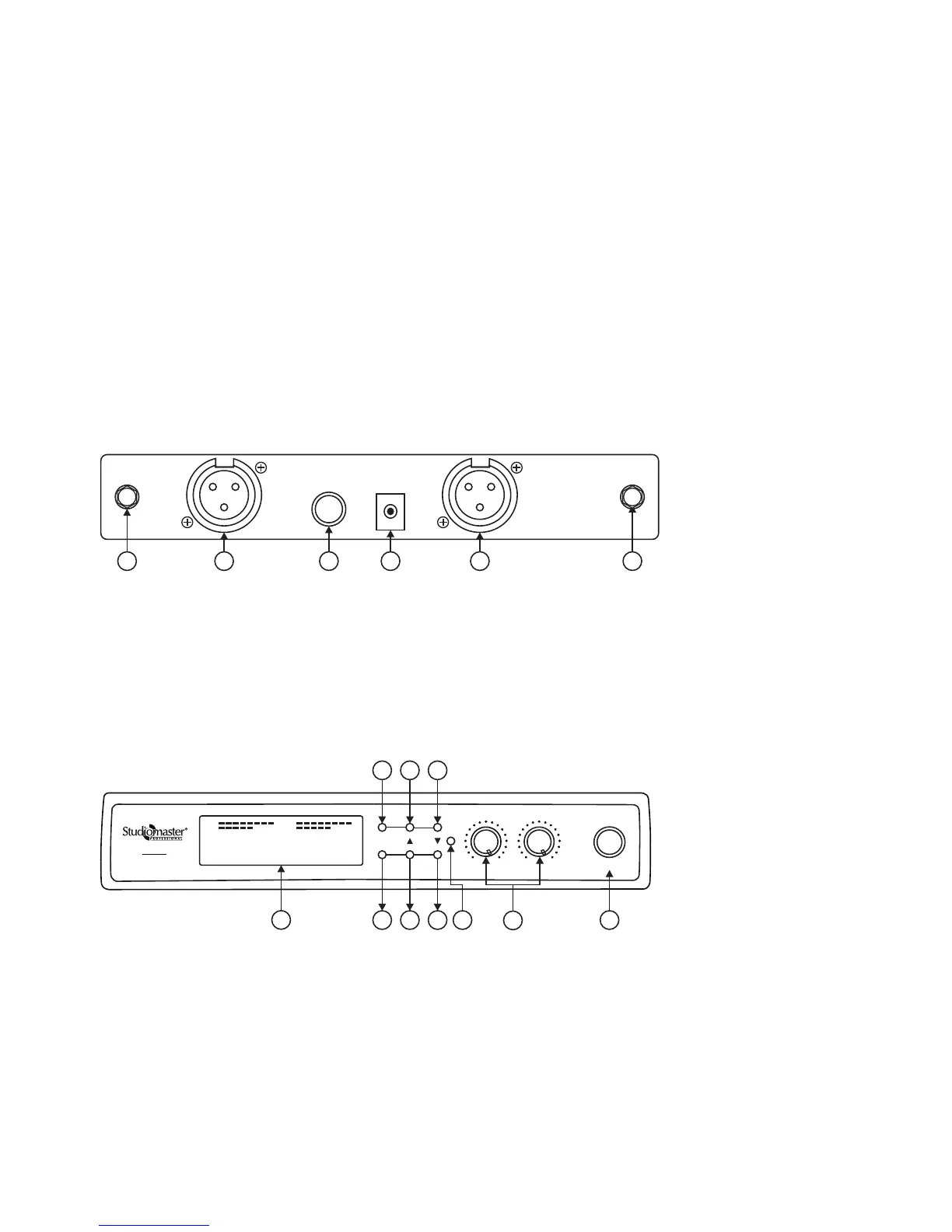

3.1 Receiver Features: Front & Rear Panel
Rear Panel
4
3
1 1 2 2
BAL A NCED-B
ANT- B
MIX O U T
DC IN P UT
12- 1 5VDC
BAL A NCED-A
ANT- A
Front Panel
1. The antenna receives signals from Transmitter, for better strength keep the antenna fully extended.Antenna :
2. 3 Pin XLR female connectors are provided to connect to the input of the Mixer/Amplifier/Balanced audio output :
Powered speaker.
3. 1/4” (6.35) Unbalanced TRS Jack is provided to connect the mix out to the input of Mixer/Amplifier/Mix out :
Powered speaker.
4. 12VDC Input voltage to power up the unit.Power Jack :
1. To switch ON/OFF the receiver module. Single press to switch ON the unit & long press toPower ON/OFF Switch :
switch it OFF.
2. To adjust the Input signal level.Volume Controls :
3. The IR sensor is provided for synchronization of the transmitter.IR Sensor:
4. It is used to decrease channel number.▼ Down Key :
5. Up key is use to increase channel number.▲ Up Key :
6. After changing channel frequency press ‘’Set’’ button to set it.Set :
7. The display screen is provided to indicate channel numbers (CH-001 to CH-200), Transmitter reception (RF)Display :
and Audio level indication (AF).
POWER
XR-80
RE CE IV ER
MIN MINMAX MAX
IR
CHANNEL B
CHANNEL A
SET
VOL A VOL B
CH–
003
007
CH–
RF RF
AF AF
5 510 1015 15
20 20
25 25
30 30
35 3540 40
-30 -30-25 -25-20 -20
-15 -15
-10 -10
-5 -5
0 0PEAK PEAK
CHANNEL A CHANNEL B
13
2
4
7
6 5
46 5
