Stulz ASD series - Page 56

4
B
A
500
B
E
Baugröße 1 2 3 4 5 7
A mm 884 884 884 884 884 974
A1 mm 840 840 840 840 840 930
A2 mm 784 784 784 784 784 874
B mm 950 1400 1750 2200 2550 3110
E mm - - - - - 939
A2 A1 A
E
B
E
EN/11.2016 © STULZ GmbH – all rights reserved
air side connection
11.3.3 Duct

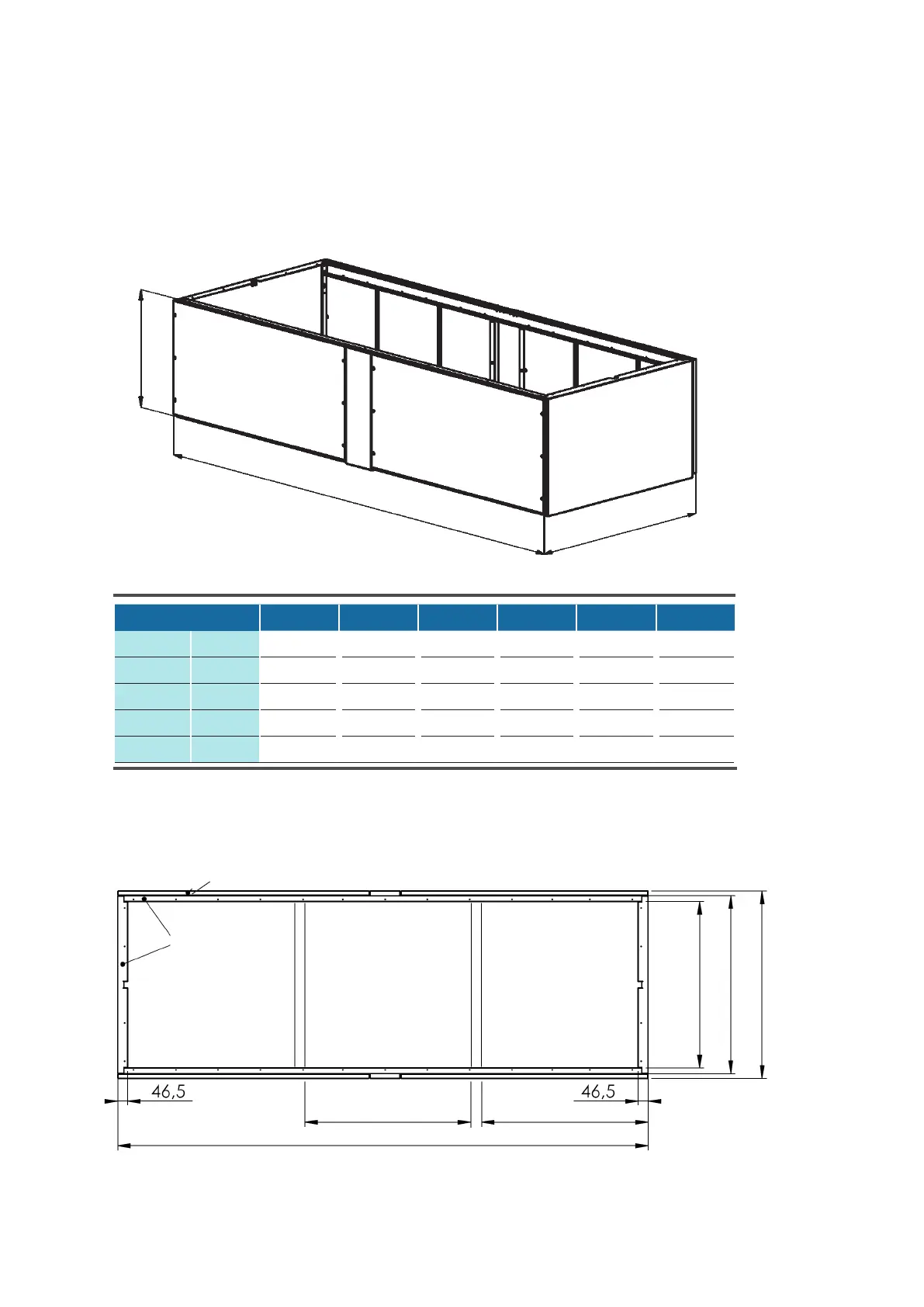

For the air side connection on top of the unit exist different options, which are delivered in a completely
assembled condition. On the installation site these set-ups must be set upon the unit and connected to it.
Top view:
Frame
Panel
• set the duct on top of the unit and screw it with the unit.
Cabinet size
