Stulz Mini-Space DX CCD251A - Air Damper (Upflow)

6
/01.2017/air_MSDXEN

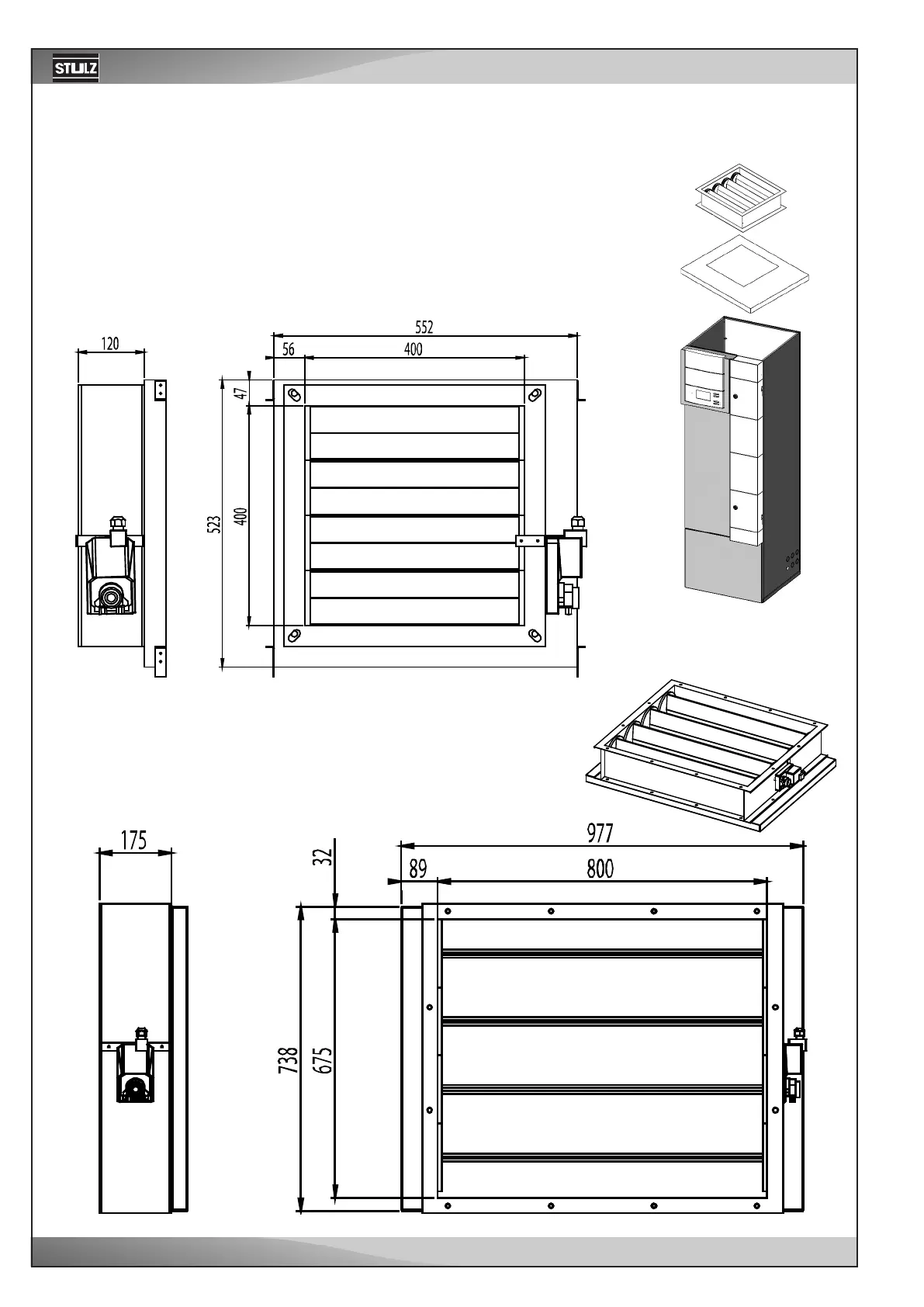

Air damper - Upflow
An air damper can only be provided on the discharge side for downflow and upflow
units. The most frequent use of the air damper is shown, on the discharge side of
upflow units. For the installation of an air damper on the upflow unit a connection
base (see page before) is necessary.
Size 2:
Size 1:
