Stulz SCS-024 - Interconnecting Field Wiring - Glycol Systems; Interconnecting Field Wiring - Remote Condenser

16
M
INI-SPACE EC INSTALLATION, OPERATION AND MAINTENANCE MANUAL

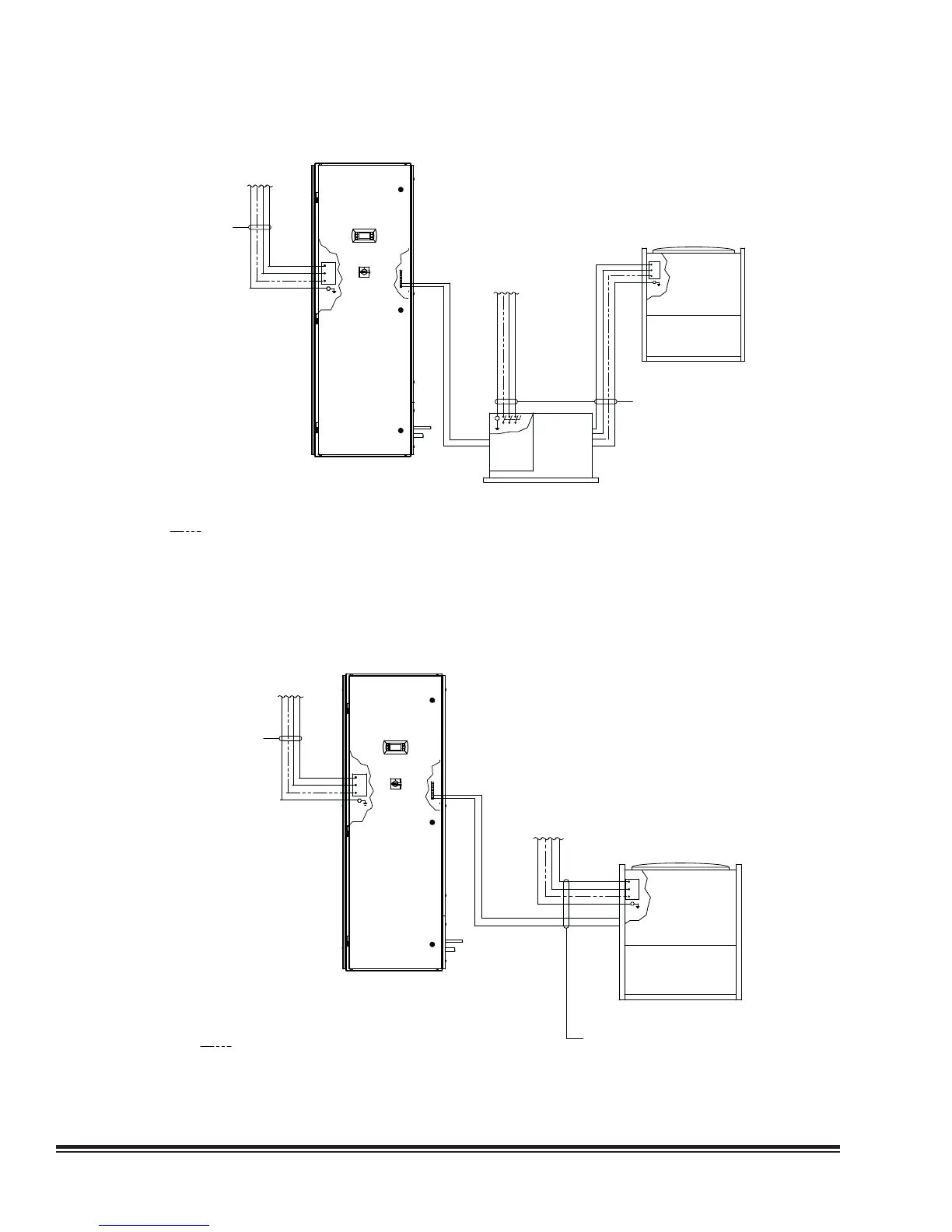

Figure 9. Interconnecting Field Wiring - Glycol Systems
24VAC
(GLYCOL UNITS ONLY)
PUMP PACKAGE
ELECTRIC
BOX
MAIN POWER SUPPLY
208-460V/1PH-3PH/60Hz
DRYCOOLER
L3
L1
L2
2. WIRE CONNECTION POINTS SHOWN IN THE ILLUSTRATION ARE NOTIONAL. POSITION
OF TERMINATION POINTS IN THE CABINET WILL DIFFER FROM THAT SHOWN.
1. PHANTOM WIRES ( ) NOT APPLICABLE FOR SINGLE PHASE POWER SUPPLIES.
NOTES:
INTERCONNECTING FIELD WIRING
(TO BE INSTALLED IN ACCORDANCE
WITH NFPA 70, N.E.C.)
MAIN POWER SUPPLY
208-460V/1PH-3PH/60Hz
MODELS CC()-041/121-W/G
INTERCONNECTING FIELD WIRING
(TO BE INSTALLED IN ACCORDANCE
WITH NFPA 70, N.E.C.)
L3
L1
L2
Figure 10. Interconnecting Field Wiring - Remote Condenser
2. WIRE CONNECTION POINTS SHOWN IN THE ILLUSTRATION ARE NOTIONAL. POSITION
OF TERMINATION POINTS IN THE CABINET WILL DIFFER FROM THAT SHOWN.
1. PHANTOM WIRES ( ) NOT APPLICABLE FOR SINGLE PHASE POWER SUPPLIES.
NOTES:
INTERCONNECTING FIELD WIRING
(TO BE INSTALLED IN ACCORDANCE
WITH NFPA 70, N.E.C.)
MAIN POWER SUPPLY
208-460V/1PH-3PH/60Hz
MODELS CC()-041/121-W/G
L3
L1
L2
AIR COOLED CONDENSER
WITH NFPA 70, N.E.C.)
INTERCONNECTING FIELD WIRING
(TO BE INSTALLED IN ACCORDANCE
24VAC
208-460V/1PH-3PH/60Hz
MAIN POWER SUPPLY
L2
L3
L1
