7INSTALLATIONHBASE STÛV16
2
.2 OPTION: OUTISE AIR INTAKE
7mm

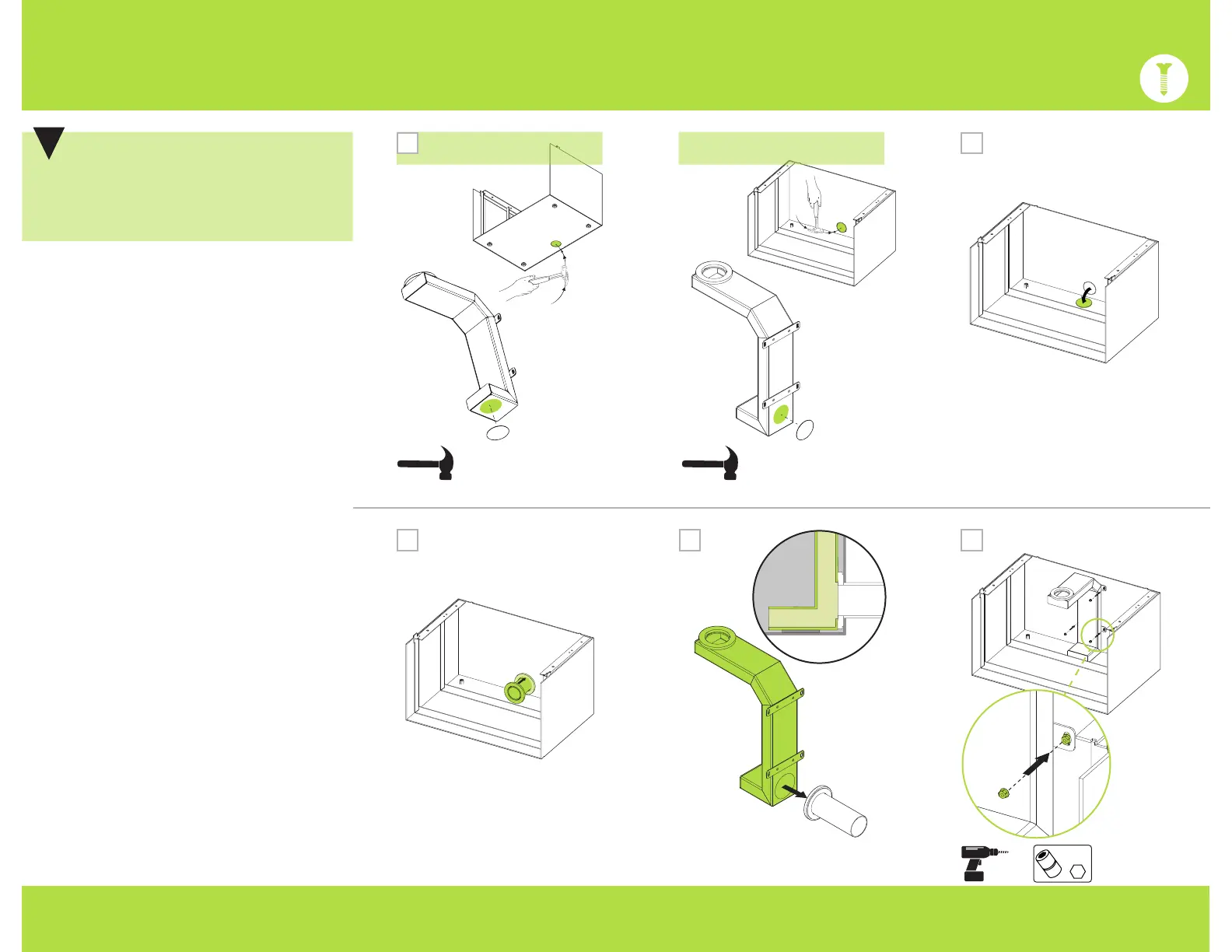

Step 8 Fit the cylindrical connector into
the selected opening and insert it all the
way in.
Step 9 When installing the air inlet
channel, make sure both the circles from
the cylindrical connector and the air inlet
channel are aligned. See the sectional
view in the circle in Figure 9.
Step 10 Using the four (4) M4 nuts
provided, attach the air inlet channel to
the H base.
Step 6 The outside air connector can be
connected either at the bottom OR to the
back of the base. Using a hammer, knock
out the pre-cut circle in the base and the
air inlet channel.
Step 7 If connecting at the back, use
the pre-cut circle previously removed and
place it between the bottom of the air
inlet channel and the bottom of the base.
OR
1098
7
IMPORTANT
Only follow these steps if the outside air
intake option was selected.
If not, go to page 8.
!
6
UNDER BEHIND
x4
