9INSTALLATIONHBASE STÛV16
2

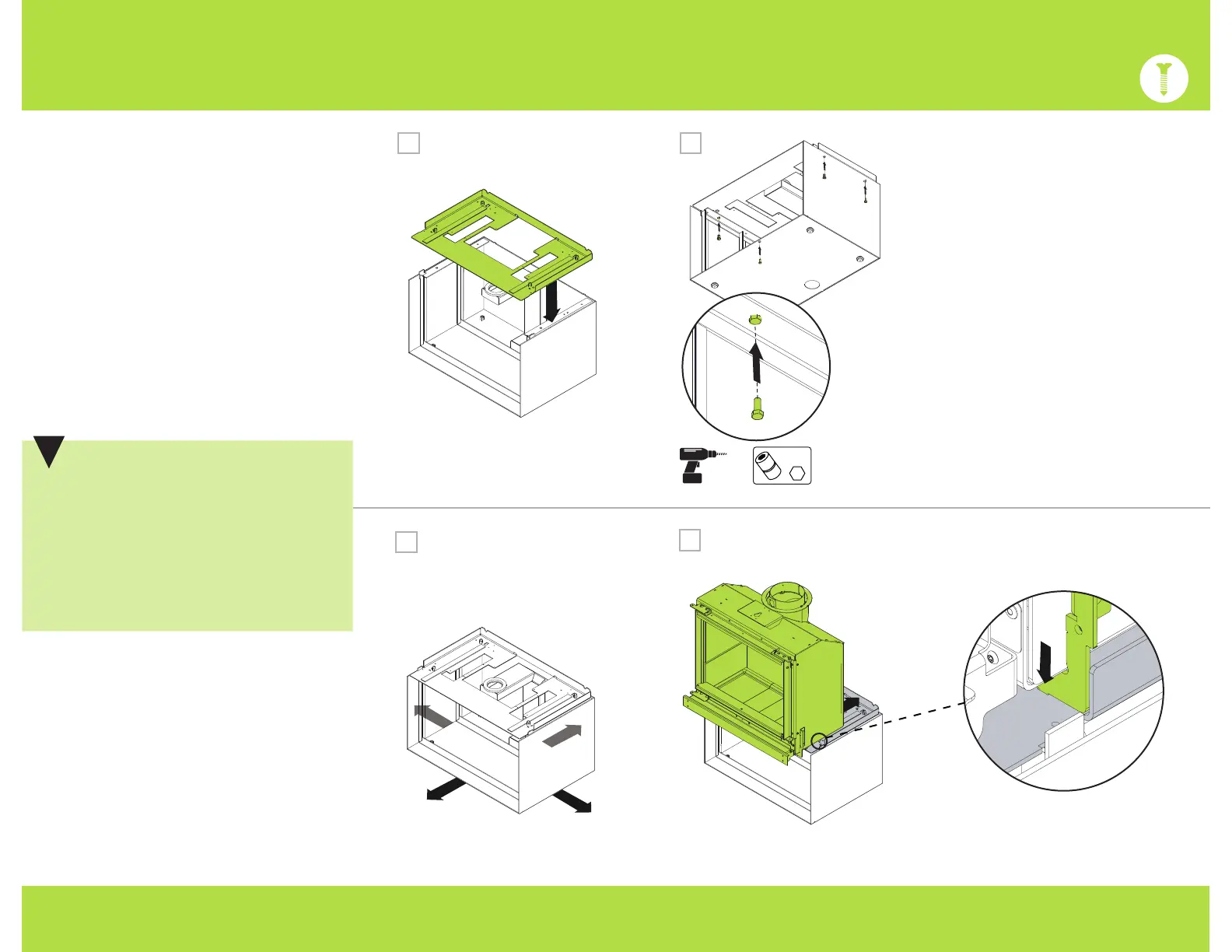

Step 16 Place the base plate on the H
base. Locate the threaded holes adjacent
to the leg insert notches.
Step 17 Thread the M6x16 hex bolts, but
do not screw them in completely.
ATTENTION
Confirm that the positioning respects
all the safety standards indicated in the
Stûv 16 installation manual.
The steps to follow for preparing the
stove without its shell can be found in
the Stûv 16-cube installation manual.
Refer to this manual for instructions.
!
18
1716
10mm
x4
1919
Step 18 Position the base in its final
location. A final adjustment may be need
to be once the cube shell is in place.
Step 19 Place the stove (without the
shell or door) on the base plate. Validate
the positioning by checking the notches
inserted in the cut-outs.
.3 INSTALLING THE STOVE
