Stuv 30 - Page 2

S30 maint. EN
10-06
2
1
A
B
E
F
D
2
3
6
2 Tools needed :
- 1 flat screwdriver
- 1 3 mm and 1 4 mm Allen key
- 1 8 mm open-end spanner
- 1 adjustable locking wrench
- 1 socket-head screwdriver and
7 mm and 8 mm sockets
- 1 spatula
3 Open the door using the cold
handgrip.
6 Re-assembly :
- vertical refractories (4B)
- smoke deflector (5)
- horizontal refractories (4A)
CC

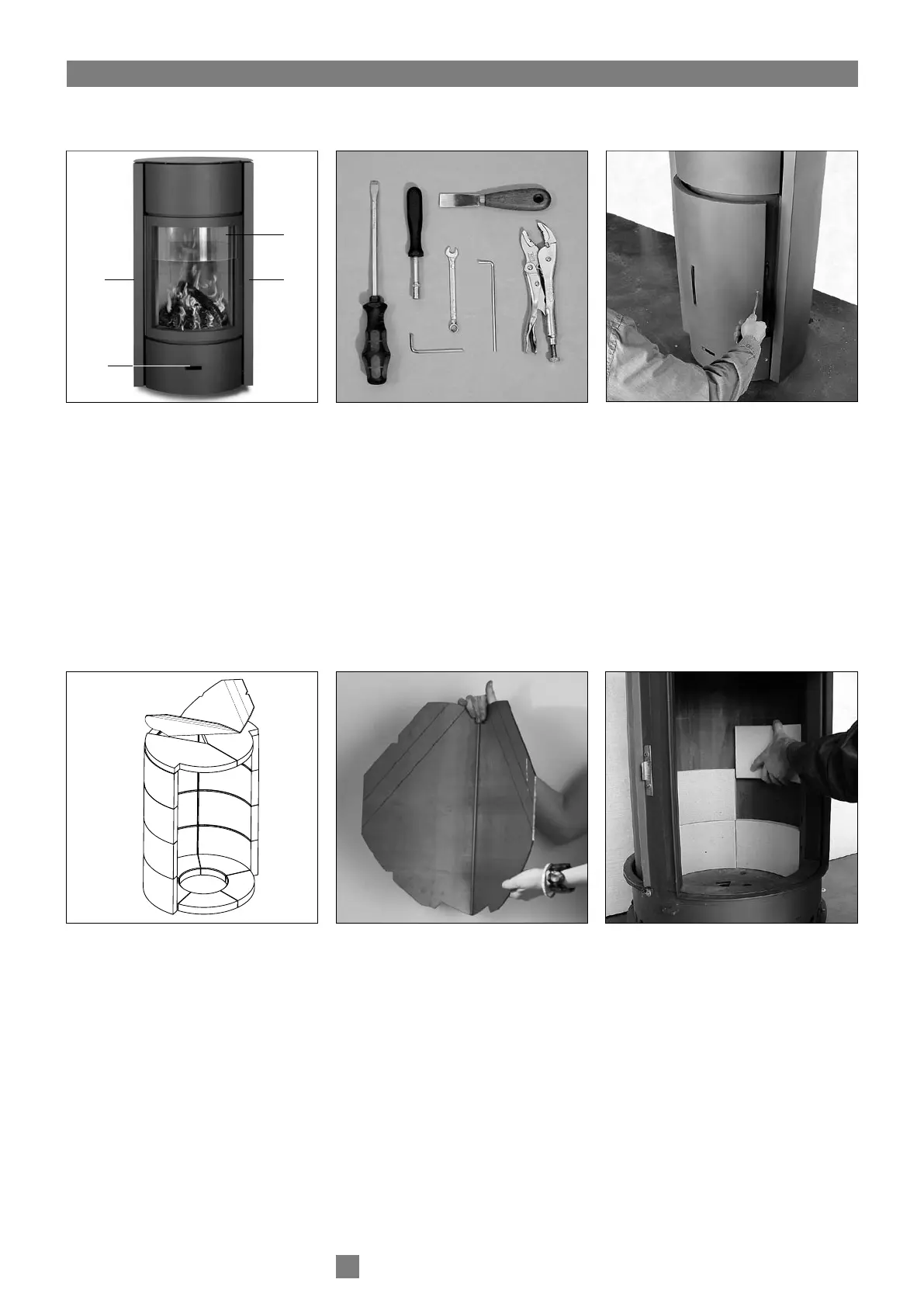

1 General view of the Stûv 30
A front panel
B «open fire» door
C side facings
D combustion chamber
E damper regulator
F ashpan door
Replacement of refractories
5
4 & 5 Remove steel bar supporting
horizontal vermiculite refractors by
simply pushing it out of its notches.
Remove horizontal vermiculite
refractors (4 C) then smoke deflec-
tor (4 D & 5) upwards.
Then remove horizontal refractors from
the bottom of the hearth which are lose
(4 A).
Remove the smoke deflector at least
once a year to prevent soot clogging
the smoke outlet.
4
A 5 parts
B 12 parts
C 2 parts
B
D
A
C
B
