Stuv 30 - Of the Bolt and the Bolt Spring of the Drum

S30 maint. EN
10-06
4

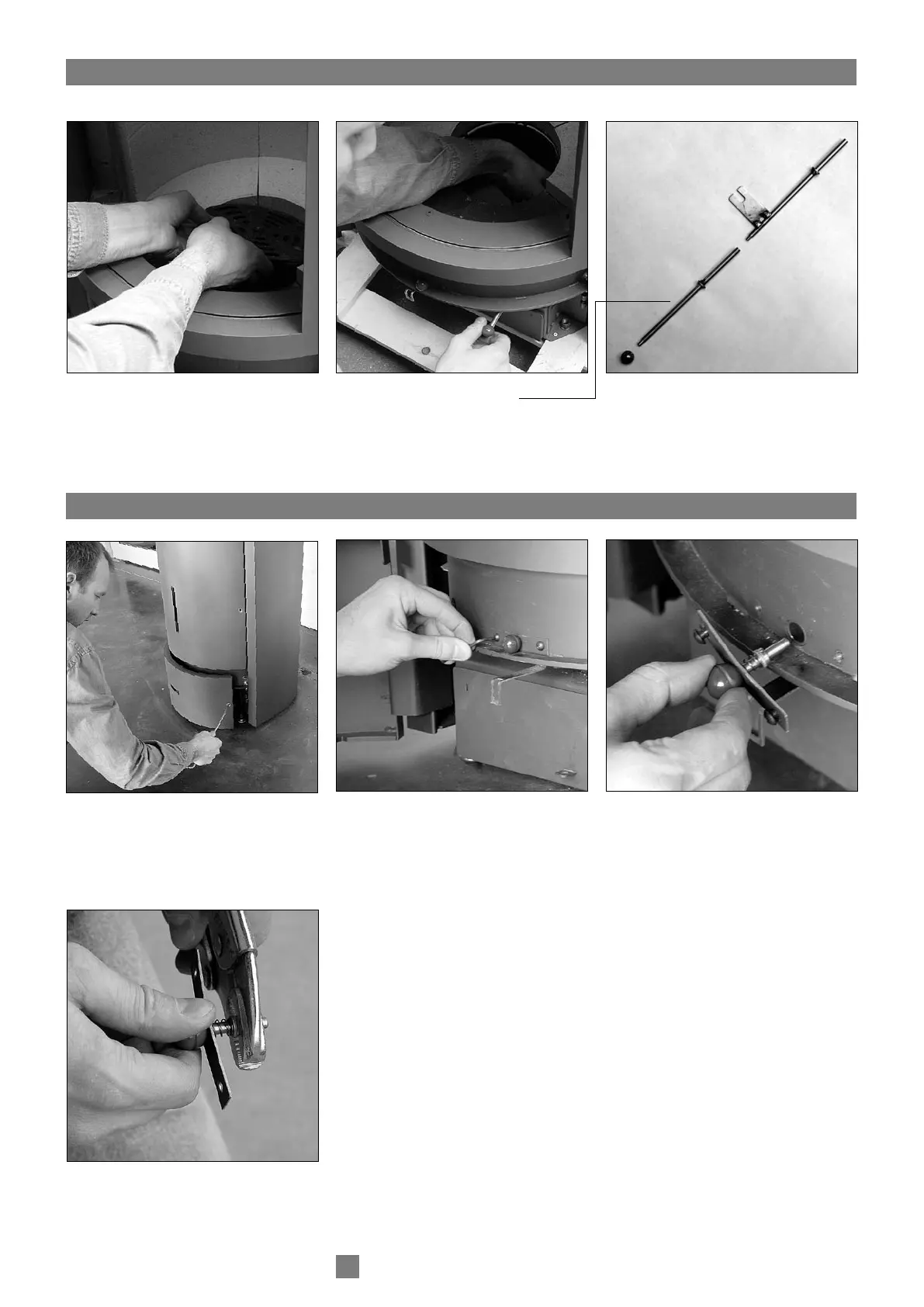

2 Unscrew the 2 parts of the grate
shaker by holding the black button
with your right hand and the fork
with your left hand.
1
2
3
1 Open a door. Take out the front
refractories. Remove the grate and
the grate holder.
3 Unscrew the black button of the
metal rod to allow the 2 parts of
that rod to come out through the
inside of the fireplace.
2
3
4
4 Unscrew the black button to take
out the spring.
2 Unscrew the 2 M5 screws, using
the 8 mm socket spanner.
3 Take the bolt out of the drum.
Replacement of the grate shaker
Replacement of the bolt and the bolt spring of the drum
1
1 Open the ashpan door.
