2 Open a door.
Take out the 2 front refractories.
4 & 5 Detach the 3 parts making up the grate. Position the support for fixed
lower grate. the three lugs should fit into the half-moons cut out of the bot-
tom of the fireplace. Be careful : the opening marked A should be on the
right.
1 Grate mechanism
A black button
of the grate shaker
B removable upper grate
C fixed lower grate
D fork
3 Remove the grate with its pin.
6 Refit refractors. Using the black
button of the grate shaker (photo
1 A & 6 A) turn the fork clockwise
(photo 1 D) as far as it will go.
Then position the removable upper
grate (photo 1B), making sure
to insert its shank into the fork
(photo 1D).
1
A
B
C
D
4
A
5
3

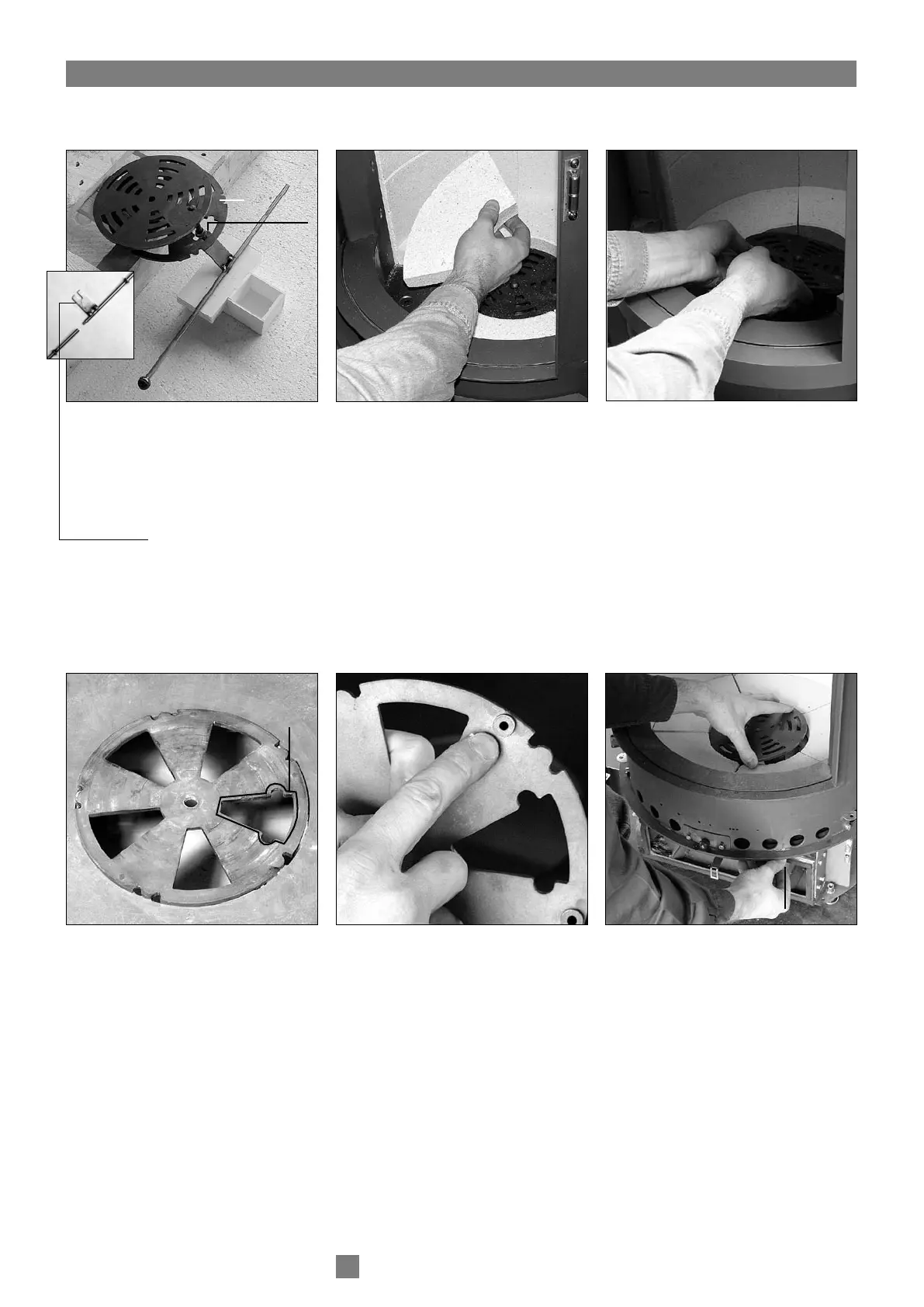

1. Disassembly of the grate
2. Re-assembly of the grate
A
6
Replacement of the grate of the ashpan
