Style selections 1599749 - Assembly Instructions

4
IS2265

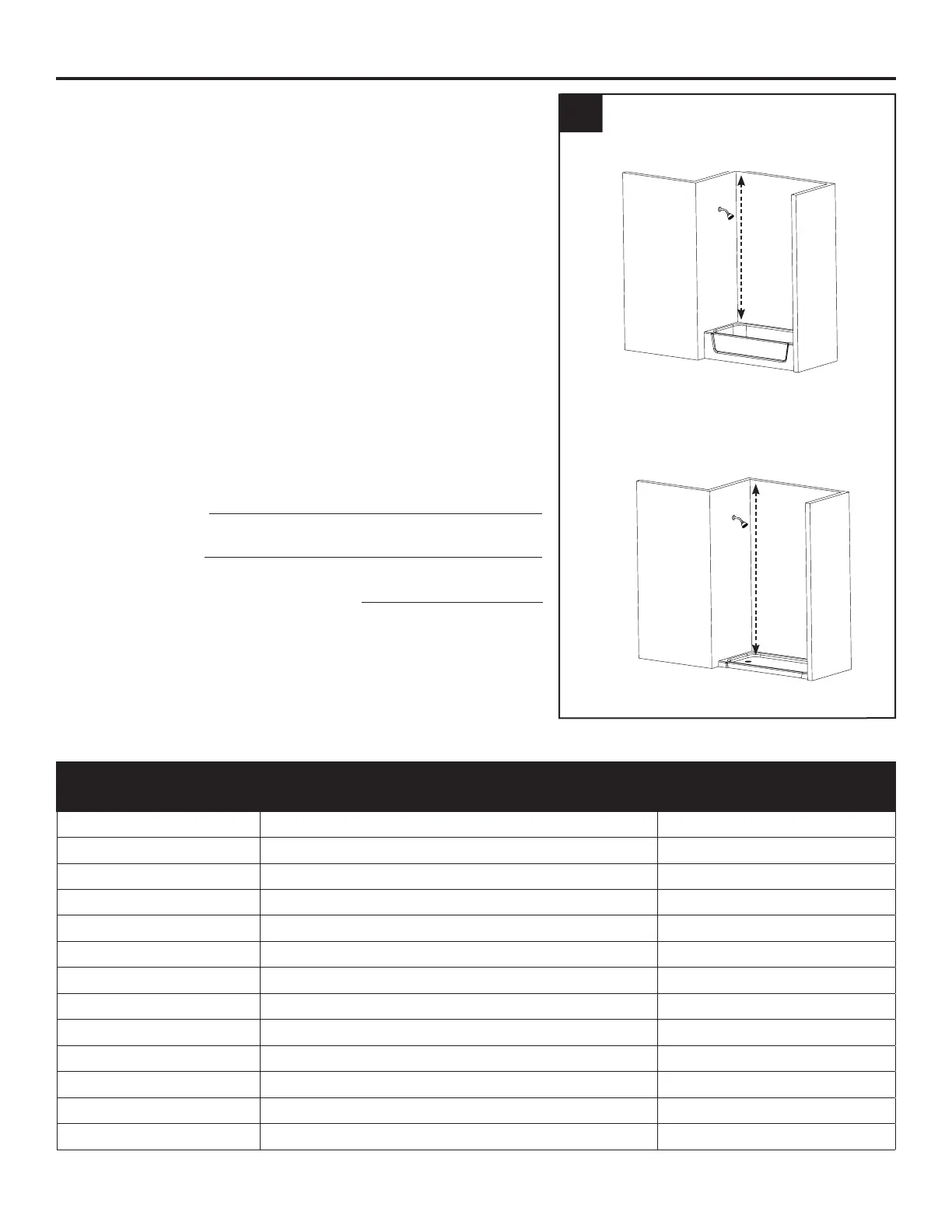

1. Measure the distance between the tub ledge or
the shower stall oor to the ceiling to the nearest
half inch.
NOTE: See the below chart to determine what
tubes (C), (D) and (E) are needed.
NOTE: No matter the distance, tubes (A) and (B)
are ALWAYS used.
Please write down your measurements, tubes and
spacers needed below, you will need this later.
Opening Height:
Tubes Needed: A + B +
Number of Spacers (AA) Needed:
1
ASSEMBLY INSTRUCTIONS
tub ledge
(opening height)
shower stall oor
(opening height)
DISTANCE
TO CEILING
USE TUBES (C), (D), AND (E)
AS NEEDED
NUMBER OF
SPACERS (AA) USED
60 - 61.5 in. (D) 3
62 - 64 in. (C) 2
64.5 - 67 in. (C) 3
67.5 - 71 in. (C) and (E) 0
71.5 - 73 in. (C) and (E) 1
73.5 - 75 in. (C) and (D) 0
75.5 - 78 in. (C) and (D) 1
78.5 - 81 in. (C) and (D) 2
81.5 - 84.5 in. (C) and (D) 3
85 - 88.5 in. (C), (D) and (E) 0
89 - 91.5 in. (C), (D) and (E) 1
92 - 95 in. (C), (D) and (E) 2
95.5 - 97 in. (C), (D) and (E) 3
