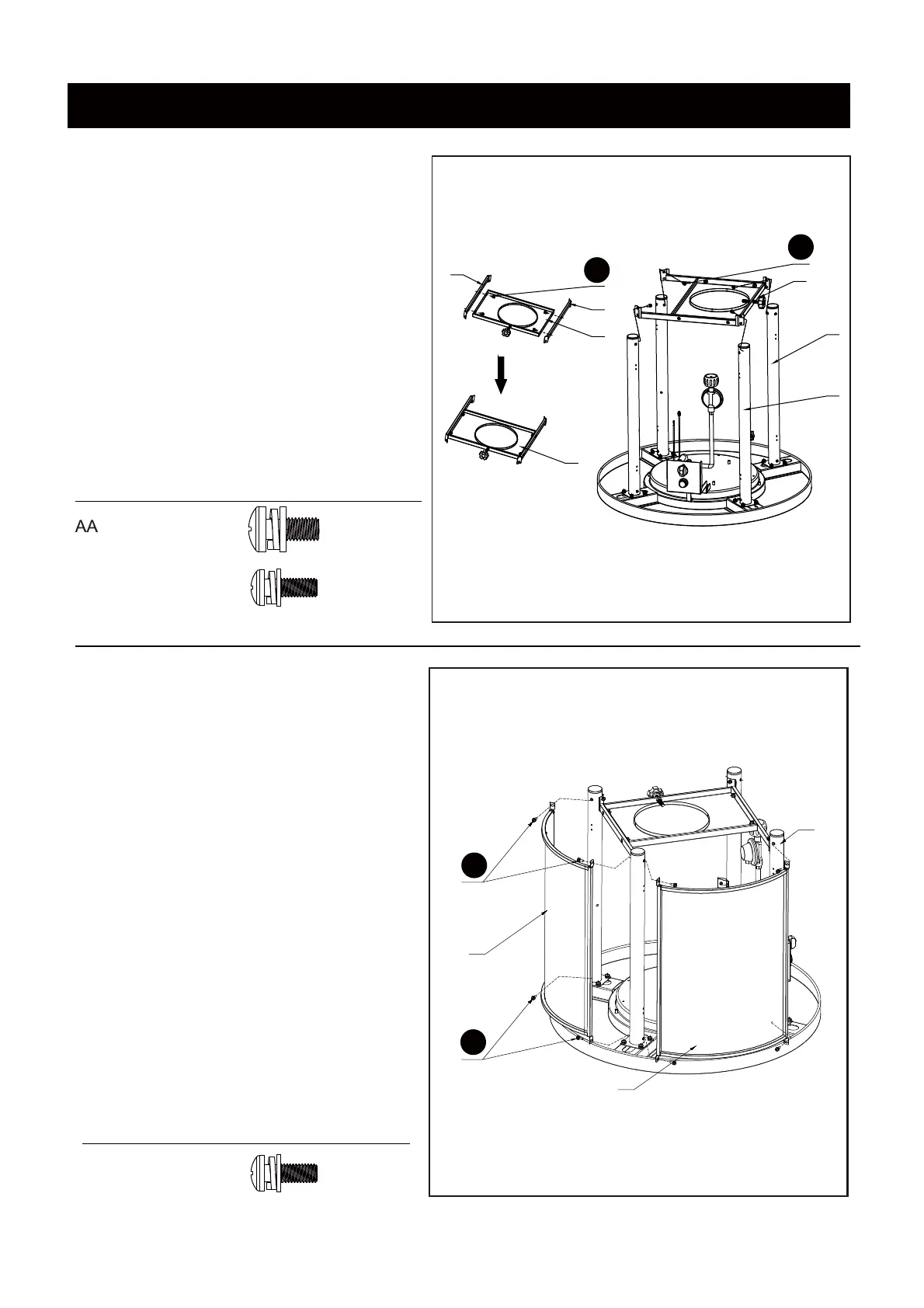

Step 3
Attach the left cylinder support tube (E)
and the right cylinder support tube (F) to
the cylinder holder assembly (G) with (4)
M6 x 14 bolt (AA). Then attach this whole
cylinder support assembly (M) onto the
Leg (C) and the Leg With Door Magnet
(D) with (4) M5 x 14 bolt (BB) as
illustrated.
Assembly Instructions
Step 4
Attach (2) side panels (H) to the Leg
(C) with (8) M5 x 14 bolt assemblies
(BB) as illustrated.
Step 3
Step 4
Hardware Used
Hardware Used
M6x14 4 pcs
M5x14BB 4 pcs
M5x14BB 8 pcs
C
M
D
E
G
M
F
H
H
C
AA
BB
BB
BB
To Next Page
