Assembly (continued)
35

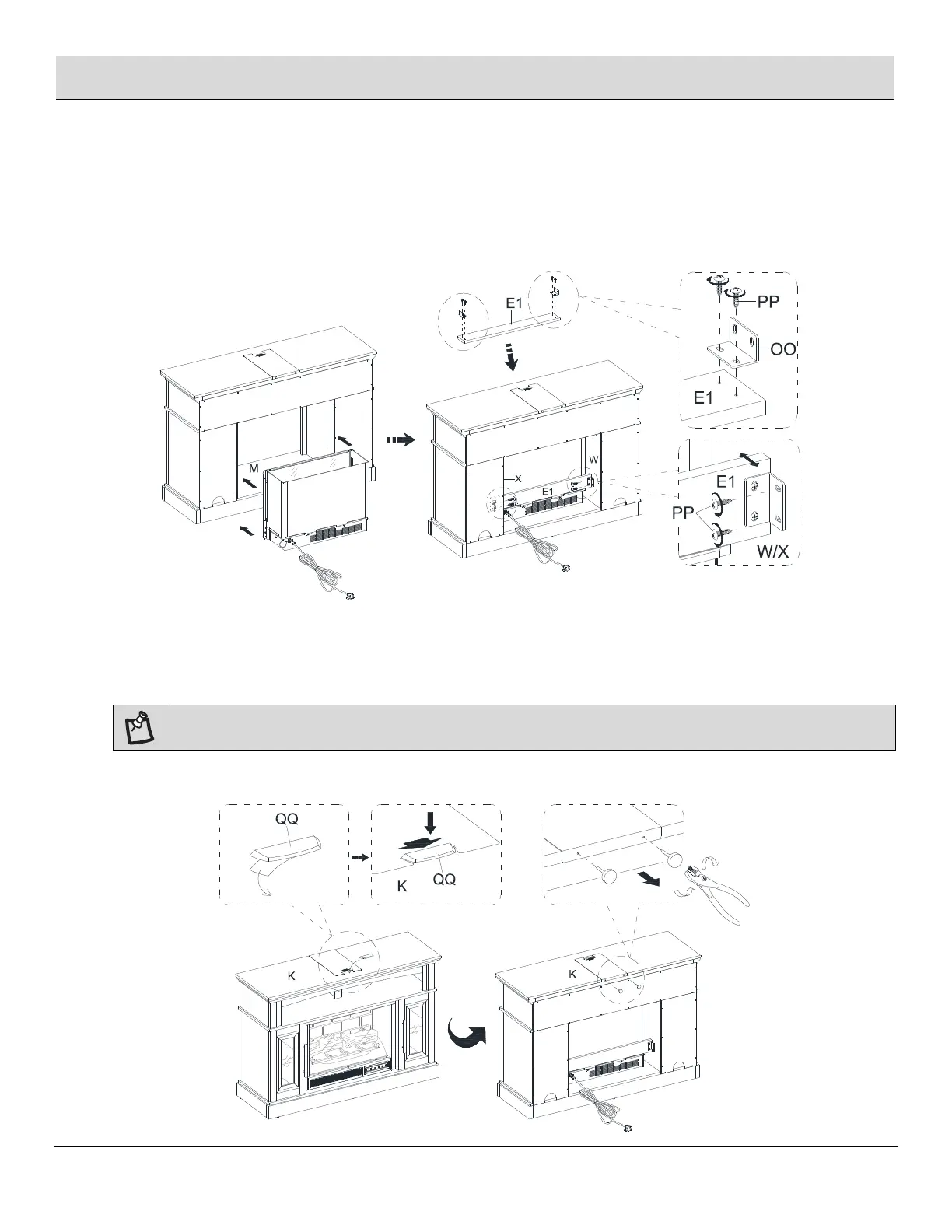

Installing fireplace insert
□ Lift the fireplace insert carefully into the back of the assembled mantel and center it on the bottom panel in the opening.
□ Use the pilot holes as a guide, fasten two large L-shaped brackets (OO) onto the firebox support (E1) with four pan head screws
(PP). Make sure that the right angle side is flush with the short edge of firebox support (E1).
□ Use the pilot holes as a guide, fasten the firebox support (E1) between the partition panels (W and X) with four pan head screws
(PP).
36
Installing the acrylic stopper
□ Remove the paper backing of acrylic stopper (QQ), then properly align the acrylic stopper into the cutout on the acrylic stopper
template on the front of the top panel (K). Press down on the acrylic stopper to help adhesion.
□ At the back of top panel (K), grip the heads of plastic tacks with pliers, with twisting motion pull tacks loose to remove the acrylic
stopper template.
NOTE: To prevent your TV from tipping, you must install the acrylic TV stopper if you place a flat panel television on the top panel.
Otherwise, skip to next step.
