Assembly (continued)
3
Attaching middle crossbar

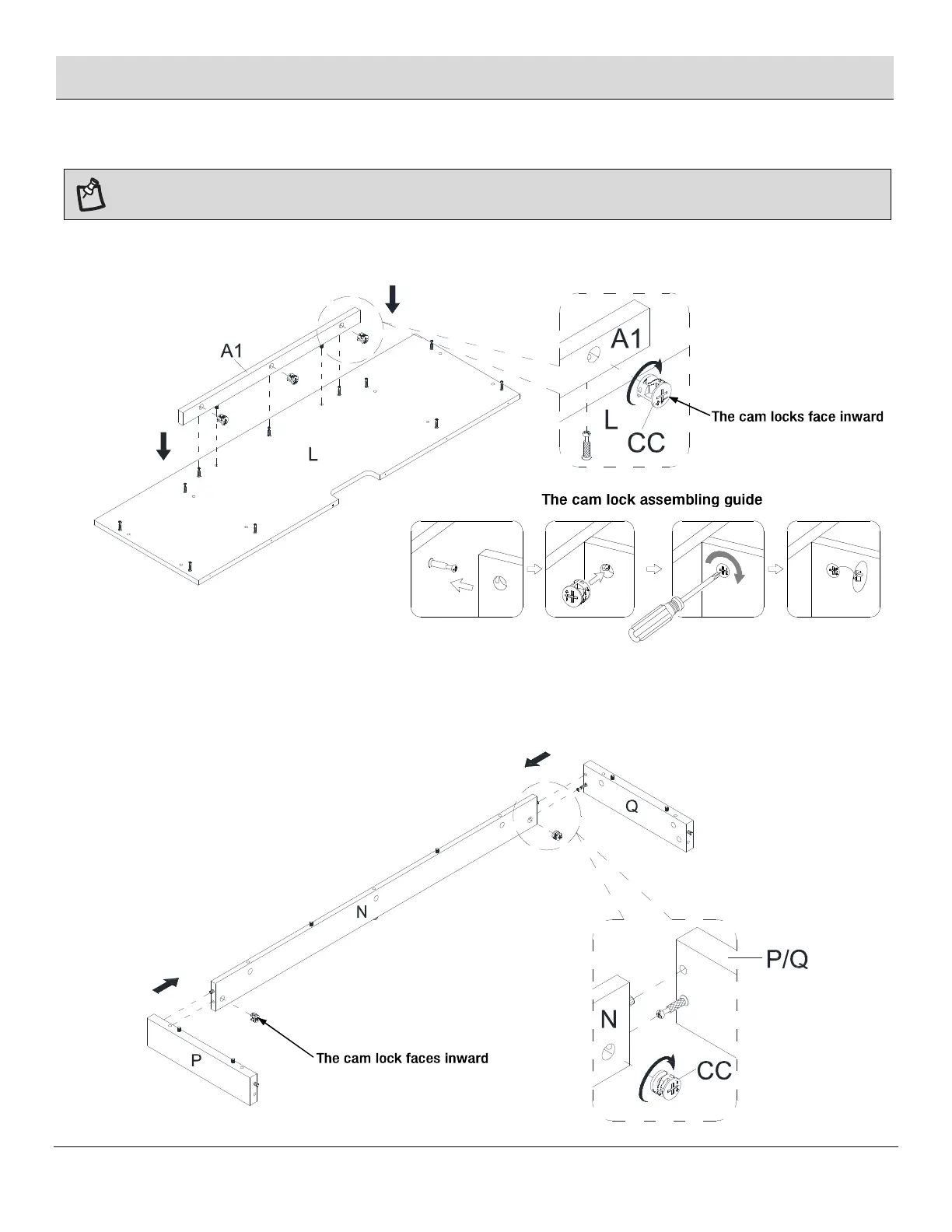

□ Attach the middle crossbar (A1) to the media shelf (L) by engaging three cam locks (CC).
NOTE:
Refer to the cam lock assembling guide drawings in this step for further clarification on how to properly install cam locks. Apply this method
whenever instructed to install cam locks
.
4
Attaching rear skirting
□ Attach rear skirting (N) between the side skirtings (P and Q) by engaging two cam locks (CC).
