StyleWell Stanwich - Preparing Bottom Panel Assembly; Attaching Middle Trims

8
Assembly (continued)
7

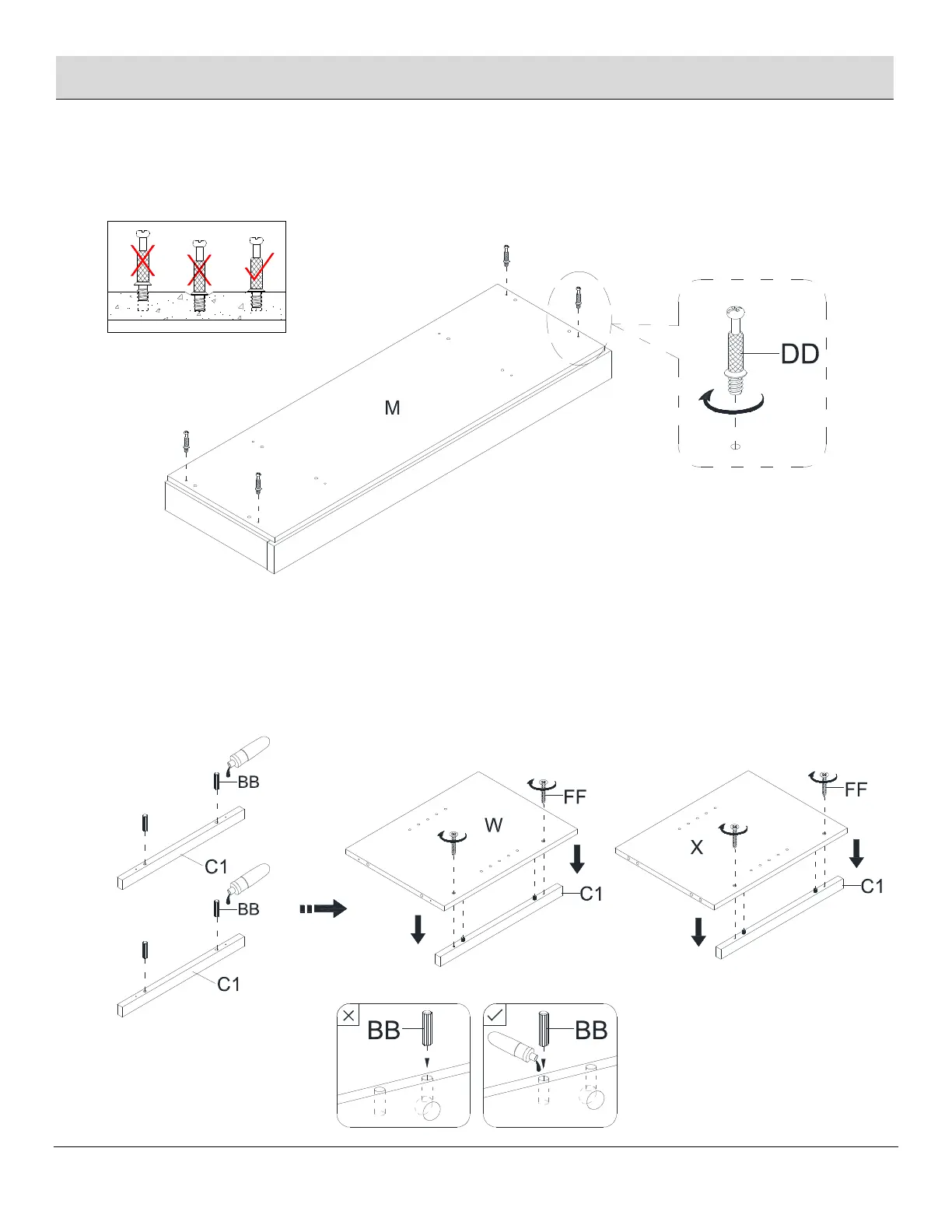

Preparing bottom panel assembly
□ Securely screw four cam bolts (DD) into the designated small holes on the top of bottom panel (M) using a Phillips screwdriver.
8
Attaching middle trims
□ Glue two wood dowels (BB) into the inner holes on each middle trim (C1).
□ Fasten the middle trims (C1) to the lower partition panels (W and X) respectively, using two medium flat head screws (FF) per
trim.
