10
F
E
D
BB
BB
H
H
AA
8
9
7

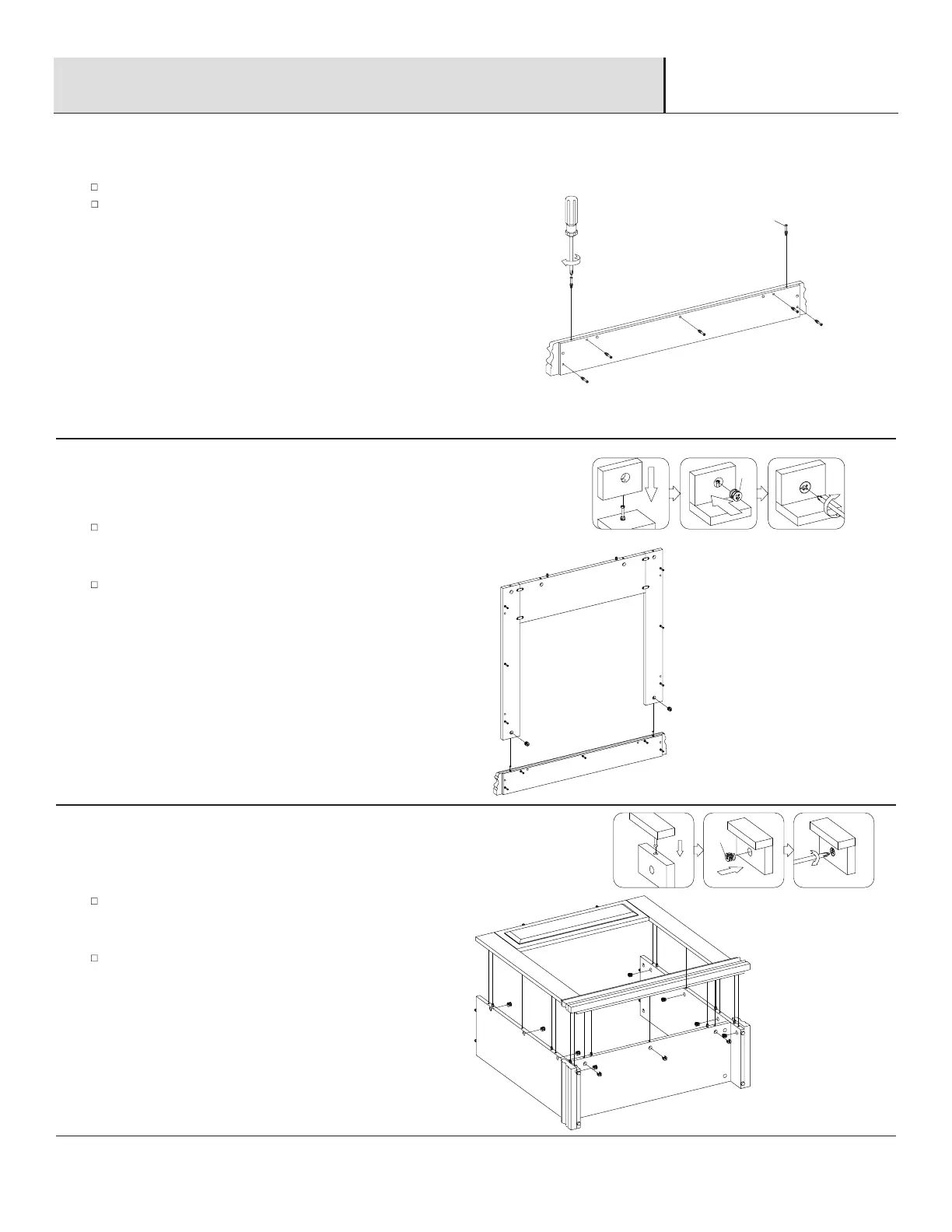

Assembly (continued)
Align the pre-drilled holes of the assembled
surround panels from step 6 (D, E, F) with the cam
lock screws on the edge of the Base Front Rail (H).
Secure the Base Front Rail (H) to the surround panel
assembly (D, E, F) with the Cam Lock Connectors
(BB). Tighten with a Phillips screwdriver.
Attach the front assembly to the sides by aligning
the previously installed cam lock screws with the
pre-drilled holes on each side panel.
Secure together using Cam Lock Connectors (BB).
Locate the Base Front Rail (H).
Place the Base Front Rail (H) on a at surface and insert
Cam Lock Screws (AA) as shown.
Attaching the base to the surround
Attaching the front and sides
Preparing base for assembly
