Model 315I (UC Ice Maker)
Installation Information
2-5
#3757320 - Revision B - August, 2005
INSTALLATION
Installation Instructions (Model 315IP - Drain Pump
Model)
1. Place ice maker in front of installation location.
Level unit as described on previous page.
2. Remove door with hinges, kickplate, lower stainless
steel face plate, control knob and control panel.
3. Route inlet water line through back of compressor
area to front of unit, keeping tubing towards left
side.
4. Locate coil of 3/8” I.D. plastic drain tubing secured
to back of unit.
5. Route plastic drain tube to drain connection point.
NOTE: Often an air gap is required by local codes
between the ice maker drain tube and the drain recep-
tacle.
6. Plug power cord into wall outlet.
7. Push ice maker into installation position.
8. Cut inlet water line to required length.
NOTE: It is recommended to flush the inlet water line
at this time by turning water supply on and letting the
water drain into a bucket.
9. Place flare nut onto inlet water line, then flare end
of tube.
10. Attach flare nut to water valve inlet.
11. Turn water supply on and check for leaks.
12. Switch unit on and pour a couple of quarts of water
into ice storage bin. The pump should start up and
pump water out. Check for leaks.
13. Replace all parts removed in step 2.

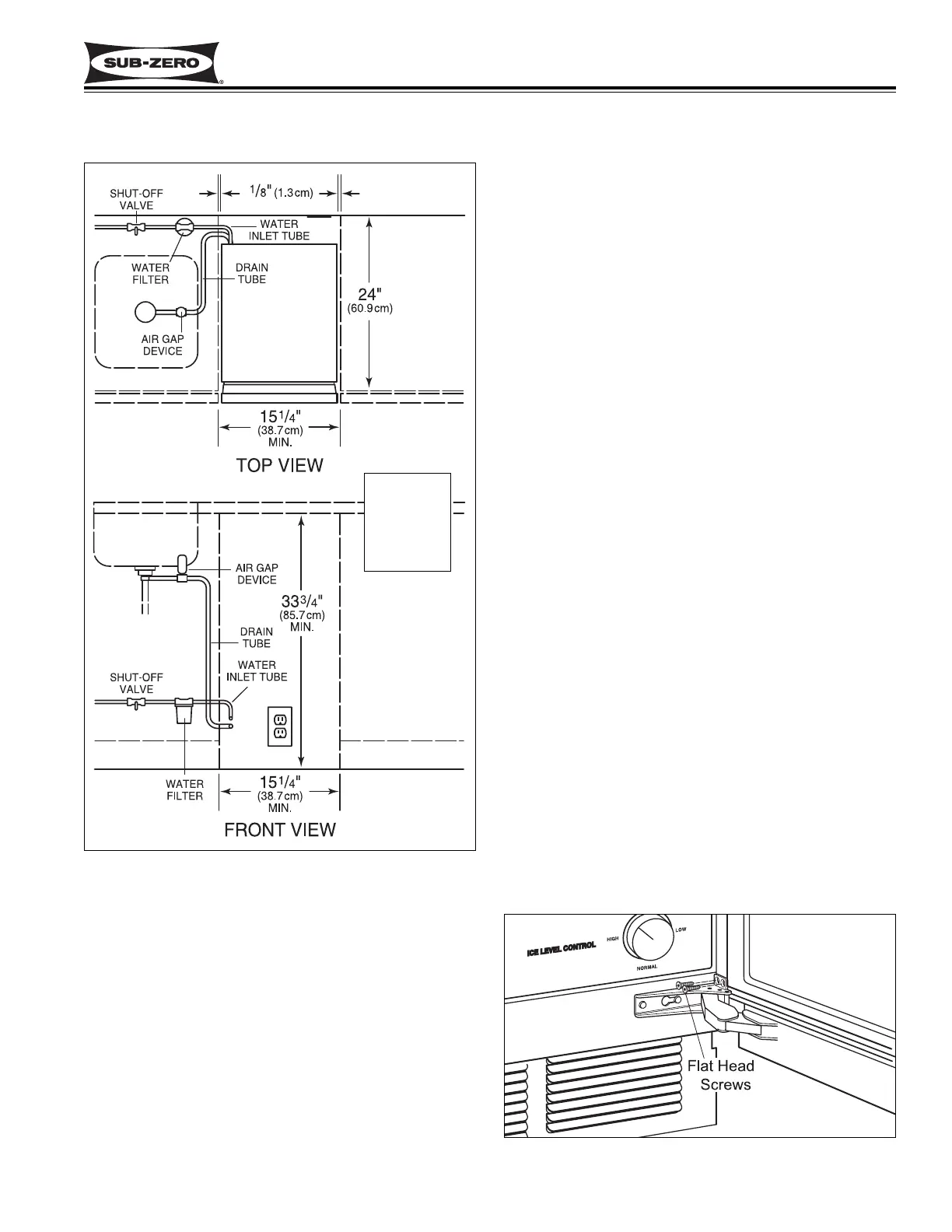

PRE-INSTALLATION SPECIFICATIONS
(Model 315IP - Drain Pump Model)
NOTE: All
plumbing
must meet
local
codes.
Securing the Unit (Model 315I & 315IP)
Once the icemaker is installed, secure the unit to the
cabinet by inserting two #8 x 1/2” flat head screws (sup-
plied with the unit) through the holes in the flange of
each hinge. (See Figure 2-4)
Figure 2-4. Securing Unit to Cabinet
