Sub-Zero 424 User Manual

Installation Notes
For overlay models, you will be adding a door
panel for a custom look. Overlay models also
allow you to match surrounding cabinetry
hardware.
Complete installation specifications, including
panel sizes, can be found on our website,
subzero.com.
Unit dimensions may vary by ±
1
/8".
Specifications
Overall Width 23
7
/8"
Overall Height 34"
Overall Depth 24"
Door Clearance 25
3
/8"
Wine Storage Capacity 46 bottles*
Opening Width 24"
Opening Height 34
1
/2"
Opening Depth 24"
Electrical Requirements 115 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight Glass Door – 190 lbs
Solid Door – 185 lbs
*750 ml bottles.
ANTI-TIP BRACKET
FRONT VIEW
TOP VIEW
34
1
/2"
(876)
ROUGH
OPENING
HEIGHT
34
1
/4"
(870)
MINIMUM
HEIGHT
REQUIRED
24"(610)
ROUGH OPENING
WIDTH
15
1
/2"
(394)
24"
(610)
ROUGH
OPENING
DEPTH
LOCATE ELECTRICAL
WITHIN SHADED AREA
E
4
1
/2"
(
114
)
2
1
/2"
(64)

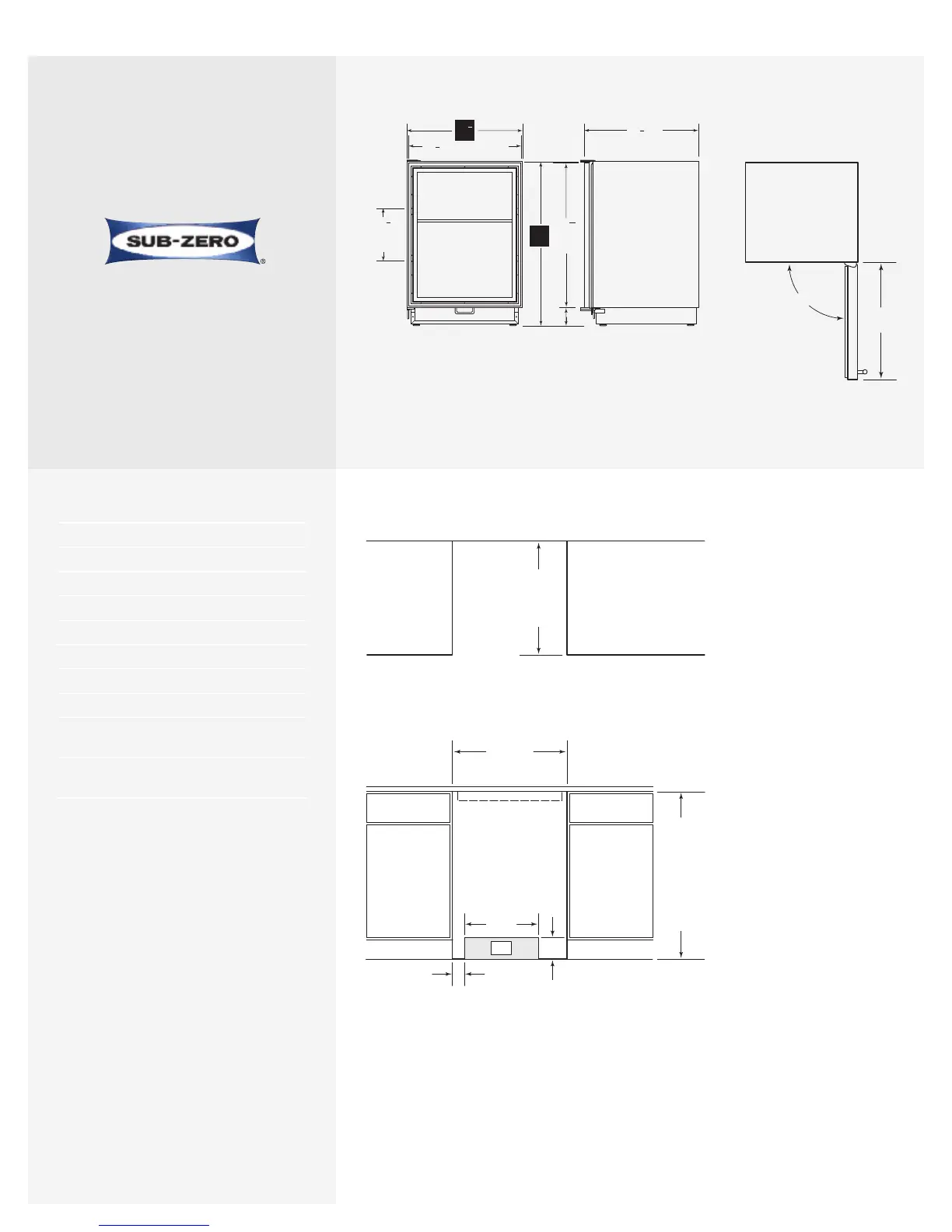

Installation Specifications
Overall Dimensions
Model 424
Undercounter Wine Storage
FRONT VIEW SIDE VIEW
(CABINET DIMENSION)
4
(102)
3
4
(273)
1
0
CENTERED
VERTICALLY
DOOR FRAME
(597)
1
2
2
3
30
(767)
DOOR
FRAME
*34
(864)
(587)
1
8
23
3
16
2
3
7
8
(606)
*
1
/2" (13)
+
_
ADJUSTMENT IN LEVELING LEGS
90˚
25
3
/8"
(645)
TOP VIEW
Dimensions in parentheses are in
millimeters unless otherwise specified.

Sub-Zero 424 Specifications

General

Product Name	Sub-Zero 424 Wine Storage
Category	Wine Cooler
Capacity	46 bottles
Shelves	6
Type	Built-In
Energy Star Certified	No
Installation	Built-In
Width	24 inches
Height	34 inches
Depth	24 inches
