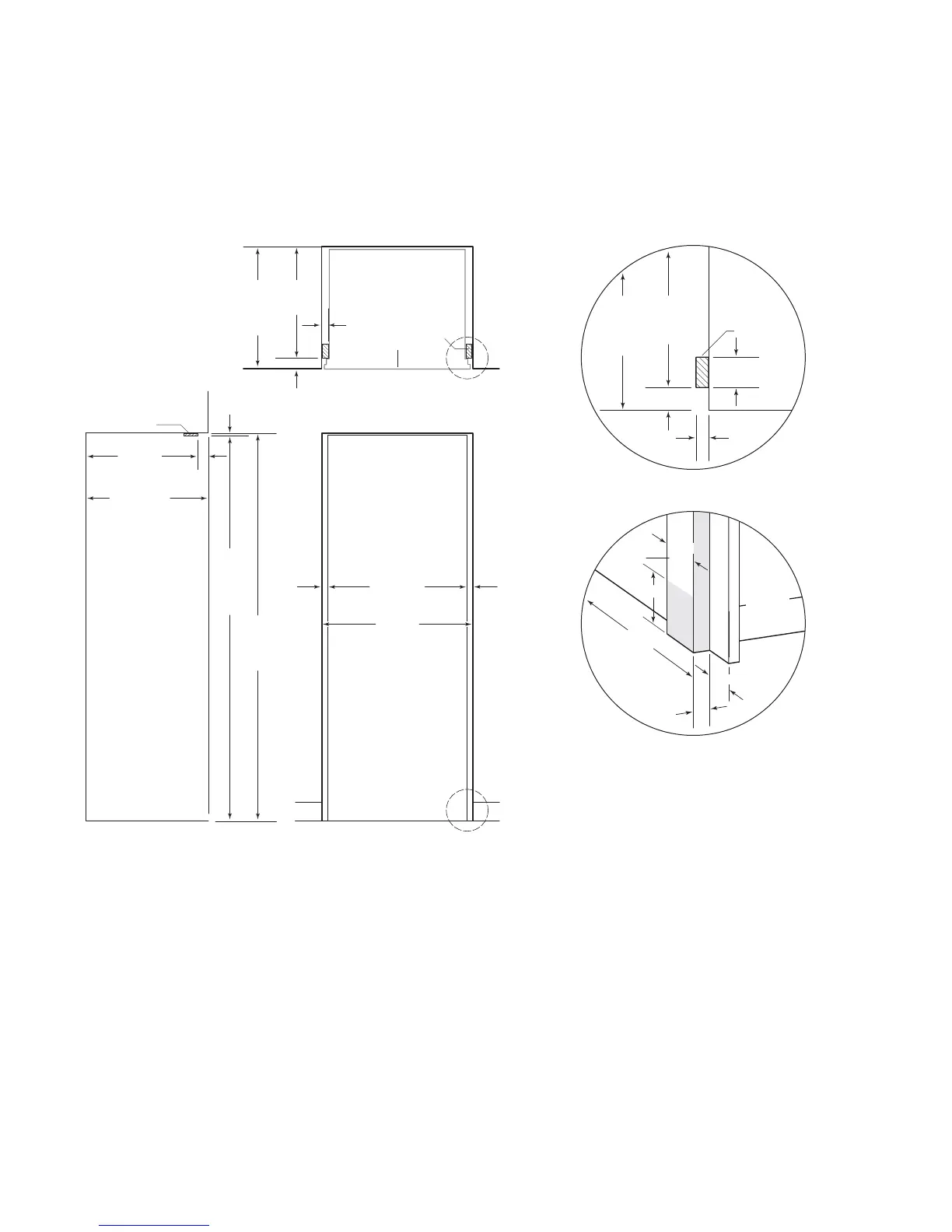

MODEL WS-30 SITE PREPARATION
Opening Dimensions
FLUSH INSET INSTALLATION
Dimensions assume a
3
/4" (19) panel thickness. If two units
are installed side by side, refer to page 21.
OUTLINE OF
UNIT WITH
3
/4" (19)
PANEL
DETAIL A
DETAIL B
FRONT VIEW
29
1
/2" (746)
WIDTH TO CLEAT
32" (813)
FLUSH INSET WIDTH
1
1
/4"
(32)
1
1
/4"
(32)
SIDE VIEW
84"
(2134)
FLUSH
INSET
HEIGHT
1
/4"
(6)
24" (610)
DEPTH TO CLEAT
26
3
/16" (665)
FLUSH INSET DEPTH
2
3
/16"
(56)
83
3
/4"
(2127)
HEIGHT
TO CLEAT
83" min
(2108)
24" (610)
DEPTH
TO CLEAT
26
3
/16"
(665)
FLUSH
INSET
DEPTH
TOP VIEW
2
3
/16"
(56)
1
1
/4"
(32)
CLEAT
CLEAT
Detail A
Detail B
1
1
/4"
(32)
24" (610)
OPENING
DEPTH
TO CLEAT
CLEAT
TOP VIEW
26
3
/16"
(665)
FLUSH
INSET
DEPTH
2
3
/16" (56)
3" (76)
typical
24" (610)
OPENING
DEPTH TO
CLEAT
1
1
/4"
(32)
2
3
/16" (56)
CLEAT
SHADED
AREA
MUST BE
FINISHED
3" typical
(76)
4" (102)
