Hinge Adjustment
IMPORTANT NOTE: T
he wine storage unit must be
installed and leveled before door hinge adjustments can
be made.
The top and bottom cabinet hinges on models 424G and
424FSG are held in place with three permanent adjust-
ment screws and two shipping screws. Refer to the illus-
trations below. The shipping screws must be removed and
discarded to adjust the door alignment and fit. If no
adjustments are necessary, it is recommended that all five
screws remain in place.
On the model 424FSG, only the bottom door hinge can be
adjusted. Remove and discard the two shipping screws
and loosen the three hinge screws to adjust the door.
Models 424G and 424FSG Installation 15
subzero.com
Complete the Installation
W
hen you have completed installation of the model 424G
or 424FSG wine storage unit, refer to page 54 for an
installation checklist and page 55 for service information.

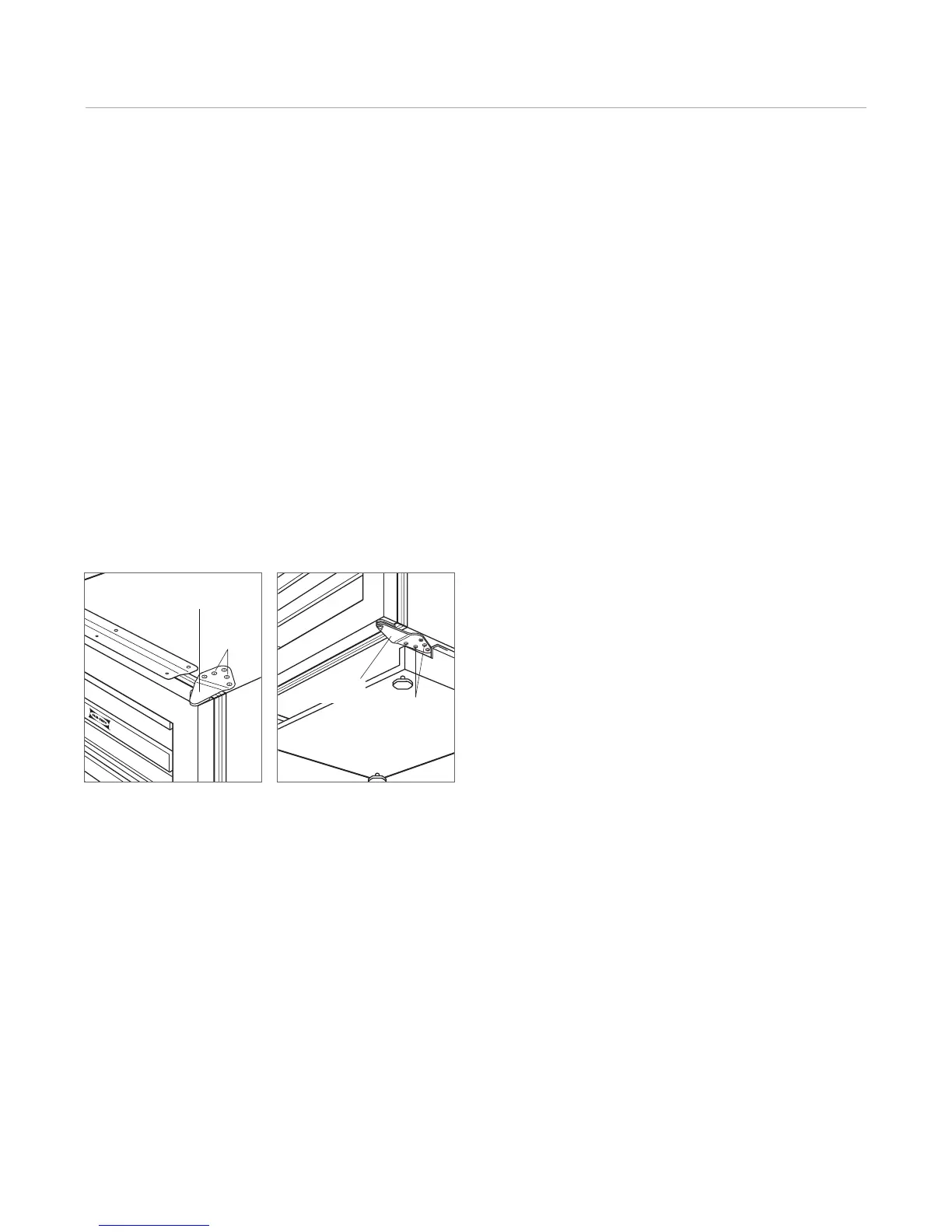

TOP DOOR HINGE
SHIPPING
SCREWS
Top hinge. Bottom hinge.
BOTTOM
DOOR HINGE
SHIPPING
SCREWS
