Models 424G and 424FSG Installation 5
subzero.com
Models 424G and 424FSG Installation
T
he model 424FSG wine storage unit is designed to be
attractive in a stand alone setting. Model 424G must be
built in. Refer to the previous page for overall dimensions
and door swing clearances for models 424G and 424FS.
Make sure that the finished rough opening where the
model 424G wine storage unit is to be installed is properly
prepared. Refer to the illustration. The floor under the unit
must be level with the surrounding finished floor.
IMPORTANT NOTE: To operate properly, the door must
open a minimum of 90°. Use a minimum 3"
(76) filler in
corner installations to assure a 90° door opening. Allow
enough clearance in front of the unit for full door swing.
TOOLS AND MATERIALS REQUIRED
• Appliance dolly able to support 130 lbs (59 kg) and
adequate manpower to handle the weight of the unit.
• Phillips and slotted screwdrivers.
• Allen, standard and crescent wrenches.
• Various sized pliers.
•
5
/16" hex bolt nut driver.
• Cordless drill and assorted drill bits.
• Level—2'
(.6 m) and 4' (1.2 m) recommended.
• Masonite, plywood, pressed fiberboard, cardboard or
other suitable material to protect finished flooring.
• Appropriate materials to cover and protect the home
and furnishings during installation.

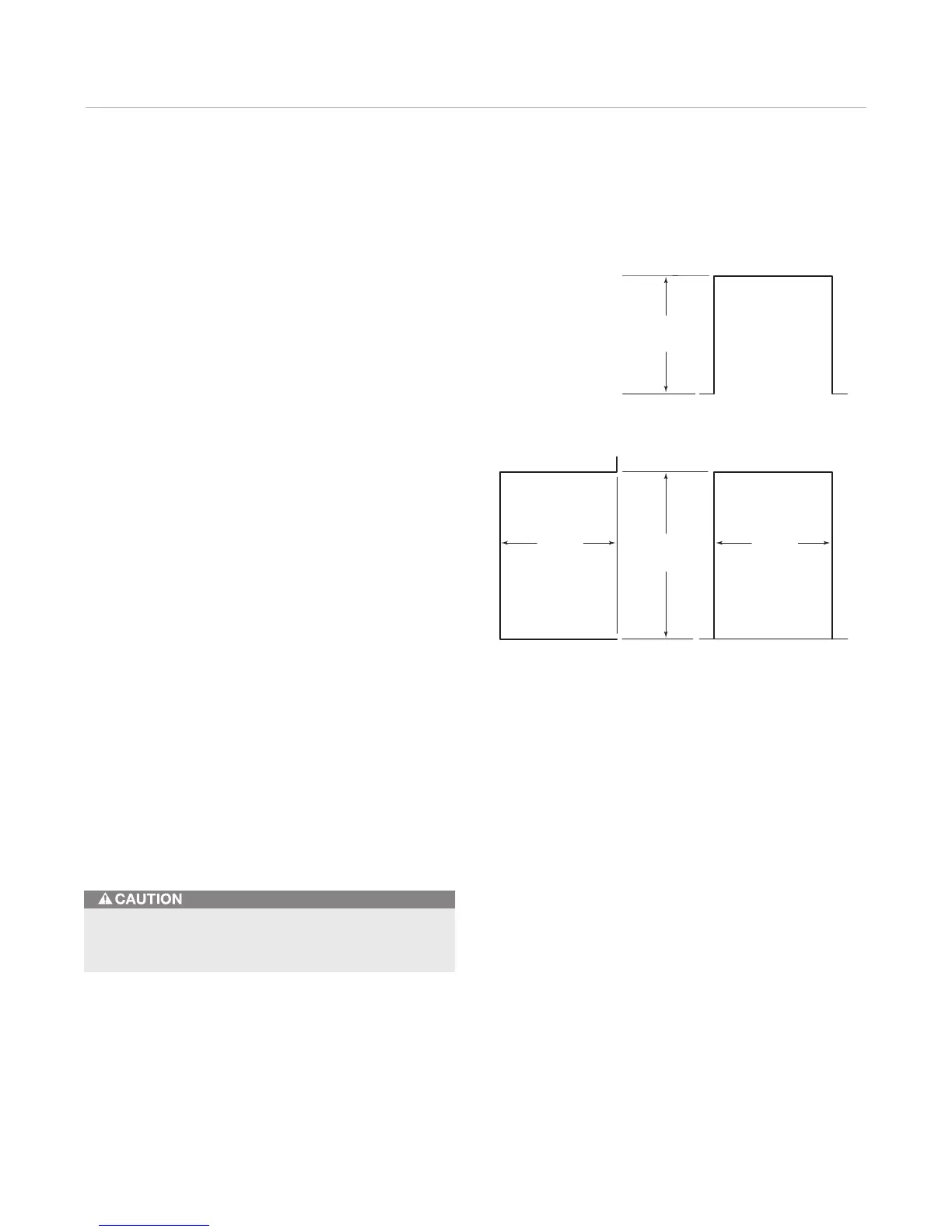

OPENING DIMENSIONS
24" (
610)
OPENING WIDTH
24" (610)
OPENING
DEPTH
24" (
610)
OPENING DEPTH
34
1
/2" (876)
OPENING
HEIGHT
T
OP VIEW
FRONT VIEWSIDE VIEW
MODEL 424G
Do not load wine into the wine storage unit until the
installation is complete.
