Anti-Tip Bracket Installation
MODEL 424FSG
If you are installing the model 424FSG in a space deeper
than 24
5
/8" (625), the anti-tip bracket must be installed no
more than 24
5
/8" (625) deep, so it engages the unit
properly. It is important that this measurement be made
from the front surface of the door, to the back of the anti-
tip bracket. Refer to the illustration below.
An anti-tip bracket and hardware is provided with the wine
storage unit. The anti-tip bracket must be installed on a
solid base to prevent tipover in case several loaded wine
shelves are extended at the same time.
MODEL 424G
The anti-tip bracket should be attached to the wall behind
the unit with the bracket flange located immediately above
the top of the unit. Refer to the illustration below.
For installations that cannot accommodate the anti-tip
bracket, the optional countertop bracket (provided) can be
used to secure the model 424G. This bracket will secure
the front of the unit to the underside of the countertop,
above the unit. Refer to the illustration below. If it is not
possible to use the countertop bracket, wedge shims
along the sides and top of the unit to secure.

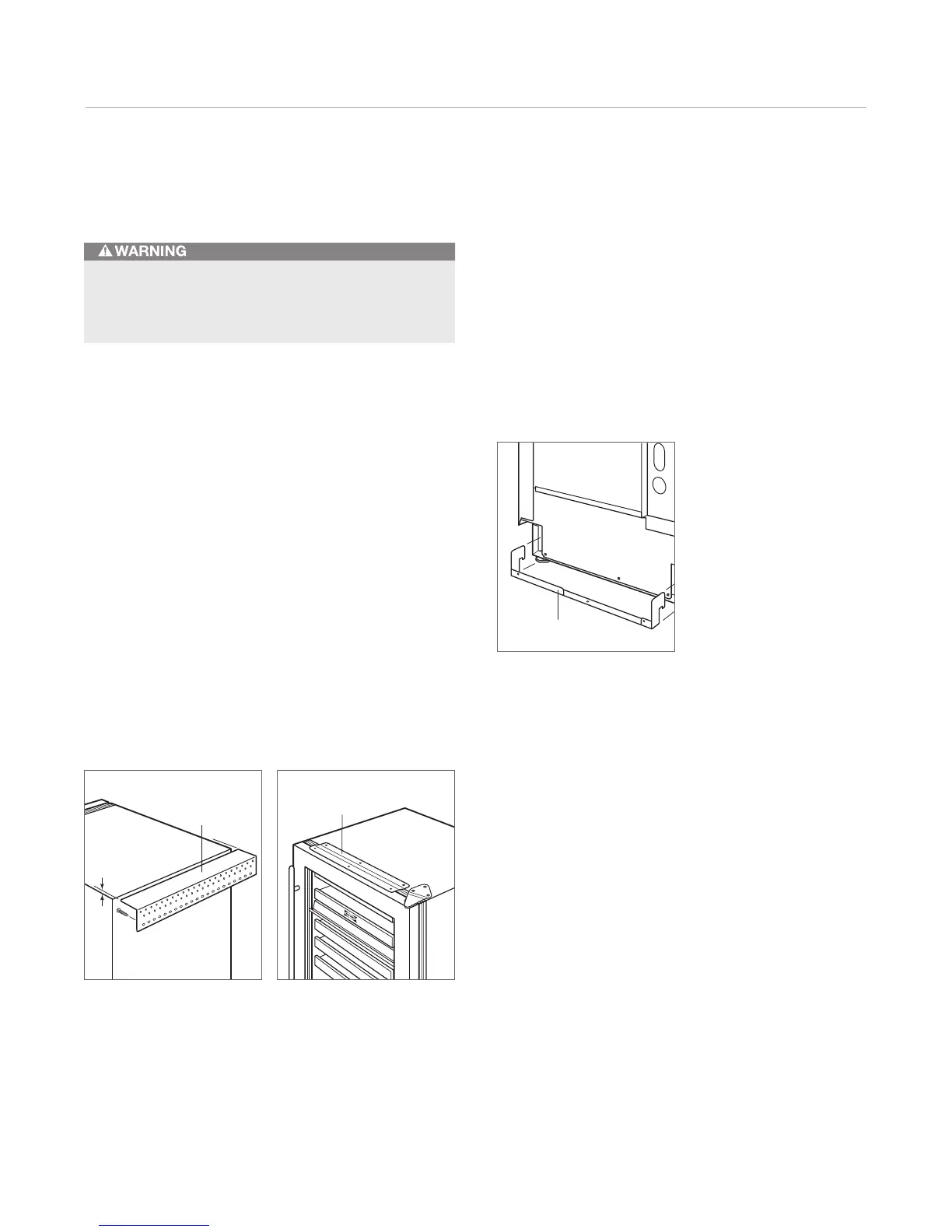

Models 424G and 424FSG Installation 8
Anti-tip bracket (424G). Countertop bracket
To prevent the unit from tipping forward and provide a
stable installation, the unit must be secured in place
with the anti-tip bracket.
Anti-tip bracket (424FSG).
