Sub-Zero 427R Planning Information

Planning Information
Wine Storage Model 427R
Dimensions in parentheses are in
millimeters unless otherwise specified.
13

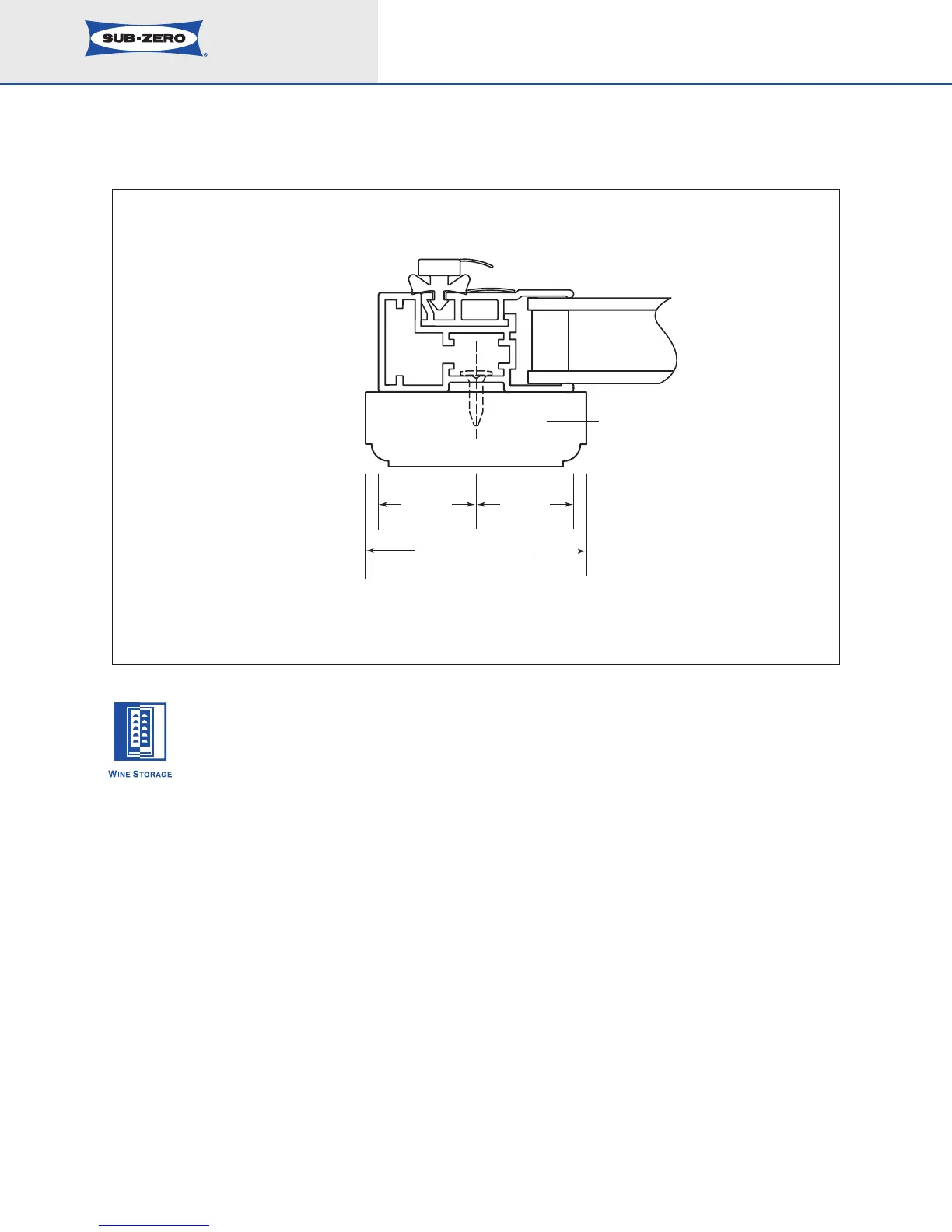

DOOR FRAME PROFILE
7
/8" (
22)
7
/8" (
22)
2
1
/4" (57) Rail/ Stile
Glass
C
L
Cabinet Door
Profile
WINE STORAGE DOOR FRAME
FULL-SCALE TEMPLATE
The full-scale illustr
ations on this page and the following
page enables you to understand some of the unique situa-
tions you may face as you design the Wine Storage units
into homes. These templates can be easily photocopied or
used in y
our tr
acings.
IMPORTANT NOTE: Rails and stiles must be wide enough
to cover the door hinges. The bac
k sides of r
ails and stiles
that will be visible thr
ough the glass door will need to be
finished.
The full-scale illustration above is typical
of the Model 424 door fr
ame profile,
details of the other Wine Storage door
frames will vary slightly.
