Sub-Zero 427R Planning Information

Planning Information
Wine Storage Model 427R
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
INSTALLATION SPECIFICATIONS
DIMENSIONS
Finished Rough Opening Width 27" (686)
F
inished Rough Opening Height
80" (2032)
F
inished Rough Opening Depth
25" (635)*
Location of Electrical Within shaded area
*
The depth of the Model 427R is 24" (610) from the front of the unit to its back. Your design may
necessitate moving the unit back, or cabinets forward to achieve a flush fit. This will require a
minimum r
ough opening depth of 25" (635).
See Installation Instructions shipped with unit for detailed specifications.
ANTI-TIP
BRACKET*
*
PLACEMENT OF THE
A
NTI-TIP BRACKET
S
HOULD BE 24" (610)
FROM THE FRONT OF THE
UNIT WITHOUT PANELS
TO THE BACK OF THE
ANTI-TIP BRACKET.
25"
(
635)
27"
(
686)
2
5"
(
635)
1
1
/2"
(
38)
13
1
/2"
(
343)

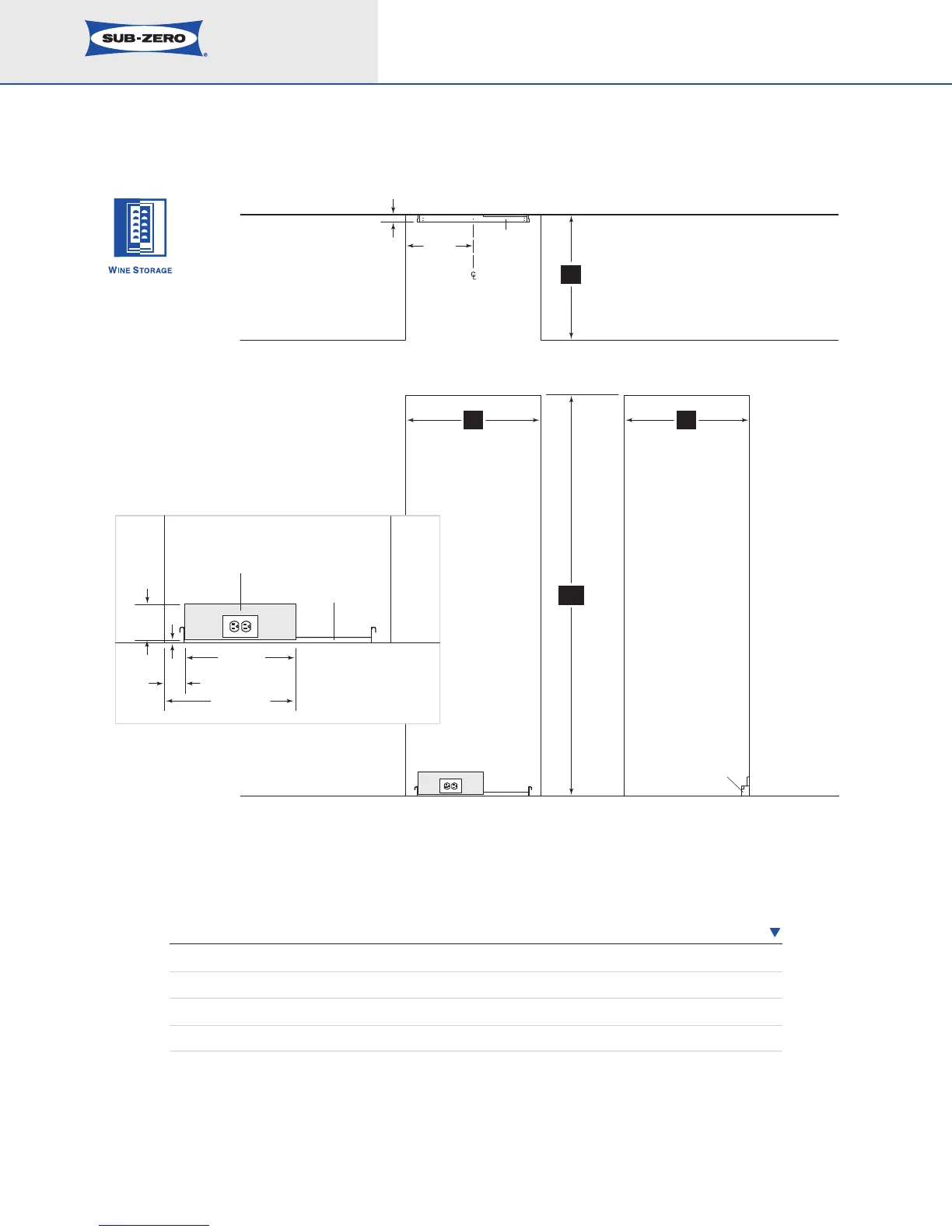

TOP VIEW
SIDE VIEW FRONT VIEW
ANTI-TIP
BRACKET
80"
(
2032)
4
1
/2"
(114)
2
1
/2" (64)
15
1
/2" (394)
1
/4"
(6)
13" (330)
ANTI-TIP
BRACKET
LOCATE ELECTRICAL WITHIN
SHADED AREA – ORIENT GROUND
PRONG TO RIGHT AS SHOWN
NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO
PREVENT UNIT FROM TIPPING FORWARD
