MODEL 430 – OVERLAY PANELS
As with the Sub-Zero Built-In models, you have
the flexibility of ordering grilles in a variety of
heights for either the framed or overlay applica-
tion. Optional panel grille dimensions for the
framed Model 430 are the same as listed for
Built-In Models 611 and 611G on page 21.
Overlay grille panel dimensions for the overlay
Model 430, standard 11" (279) grille, are listed
below. Refer to page 25 for optional grille height
dimensions. The width of the overlay grille,
spacer and backer panel will be the same regard-
less of the height.
In addition, side panel information for a Model
430 is available on page 26 of the Built-In
section. Refer to illustration 12 on page 26 for
placement of toe kick and grille area cut-outs.
*

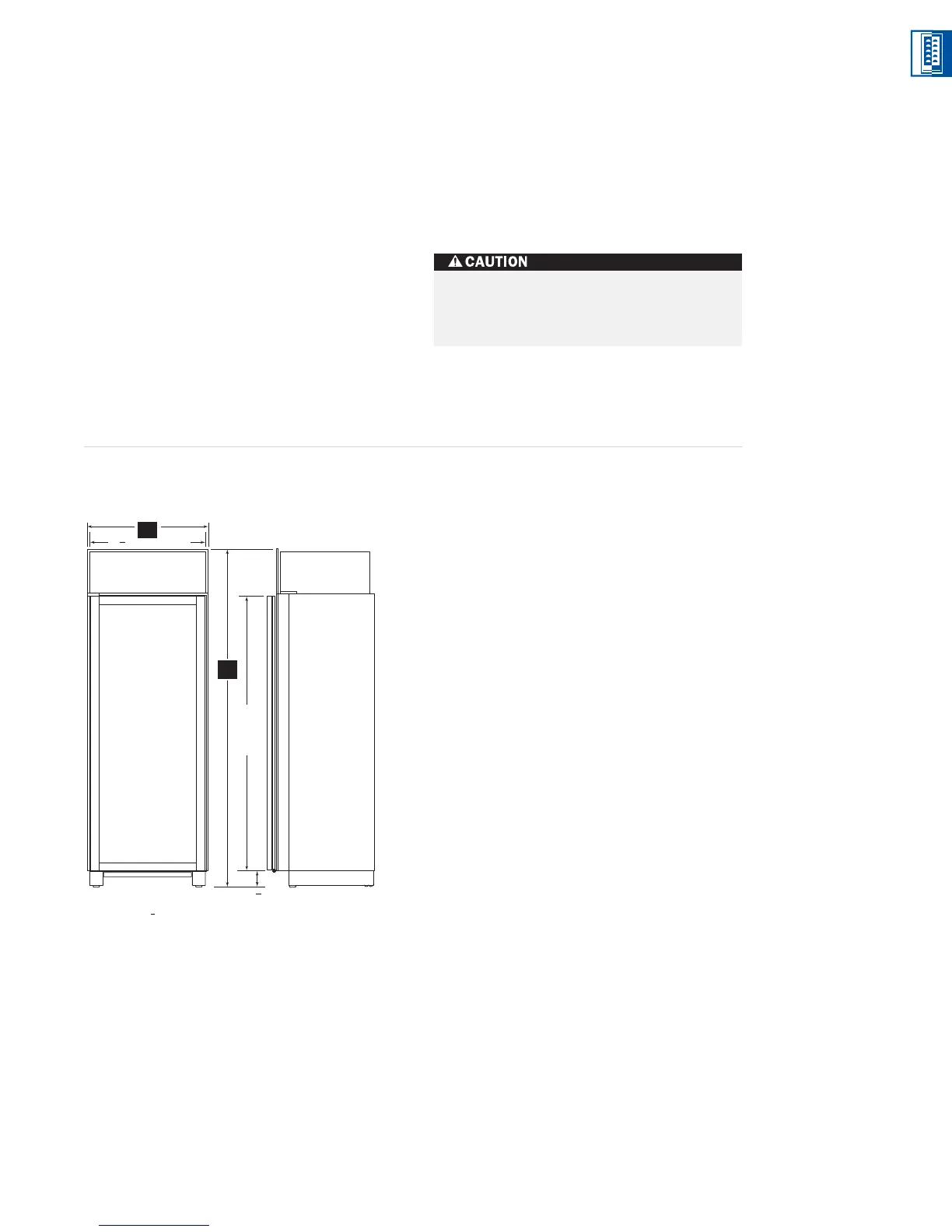

INCH (13) ADJUSTMENT IN LEVELING LEGS
1
2
FRONT VIEW SIDE VIEW
84
(2134)
4
1
16
(103)
68
(1727)
CENTERED
VERTICALLY
DOOR
PA NE L
TOE
KICK
DOOR FRAME
(722)
7
16
28
30
(762)
CABINETRY DIMENSIONS
Model 430
FRAMED PANEL SPECIFICATIONS
Model 430 – Framed (F)
Framed Door Panel Width 28
1
/8" (714)
Framed Door Panel Height 67
11
/16" (1719)
Min Width of Rails and Stiles 2
1
/4" (57)
Door Frame Panel Weight Limit 25 lbs (11 kg)
Solid Door Panel Weight Limit 50 lbs (23 kg)
Min Panel Thickness
5
/8" (16)
OVERLAY PANEL SPECIFICATIONS
Model 430 – Overlay (O)
Overlay Door Panel Width 28
7
/16" (722)
Overlay Door Panel Height 68" (1727)
Spacer Panel Width 27
1
/2" (699)
Spacer Panel Height 67
1
/16" (1073)
Backer Panel Width 28
1
/8" (714)
Backer Panel Height 67
11
/16" (1719)
Min Width of Rails and Stiles 2
1
/4" (57)
Door Frame Panel Weight Limit 25 lbs (11 kg)
Solid Door Panel Weight Limit 50 lbs (23 kg)
Min Panel Thickness
5
/8" (16)
GRILLE PANEL SPECIFICATIONS
Model 430 – Overlay (O)
Overlay Grille Panel Width 28
7
/16" (722)
Overlay Grille Panel Height* 10
1
/4" (260)
Spacer Panel Width 27
1
/2" (699)
Spacer Panel Height* 9
5
/16" (236)
Backer Panel Width 28
1
/8" (714)
Backer Panel Height* 9
15
/16" (252)
Grille Panel Weight Limit 15 lbs (7 kg)
Min Panel Thickness
5
/8" (16)
*Grille panel dimensions are for standard 11" (279)
grille. Refer to page 25 for optional grille heights.
IMPORTANT NOTE: Wine Storage models with a
solid door are available as a special order and
require 90 days for delivery. When ordering
panels for a solid door unit, follow the overall
panel dimensions indicated; rail and stile dimen-
sions do not apply.
A solid panel must not be installed on a
glass door unit, as this may cause moisture
to form behind the panel.
INSTALLATION
To install framed or
overlay panels, see
the detailed proce-
dures outlined in the
Sub-Zero Wine
Storage Installation
Instructions.
