Sub-Zero 427R Design Guide

WINE STORAGE
66
DOOR PANEL
SUB-ZERO DOOR
145
˚
*
1
2
(13)
1
4
(6)
*
1
8
(3)
3
4
(19)
23 (587)
TO BACK OF
APPLIANCE
1
8
*
MODEL 424 MUST
EXTEND A MINIMUM
1/4"
(6) BEYOND THE
FRONT SURFACE OF
ADJOINING
CABINETRY TO
ALLOW THE MAXIMUM
DOOR SWING
SUB-ZERO
DOOR
DOOR
PANEL
24 (610)
CABINETRY
OPENING
23 (600)
DOOR PANEL
WIDTH
3
4

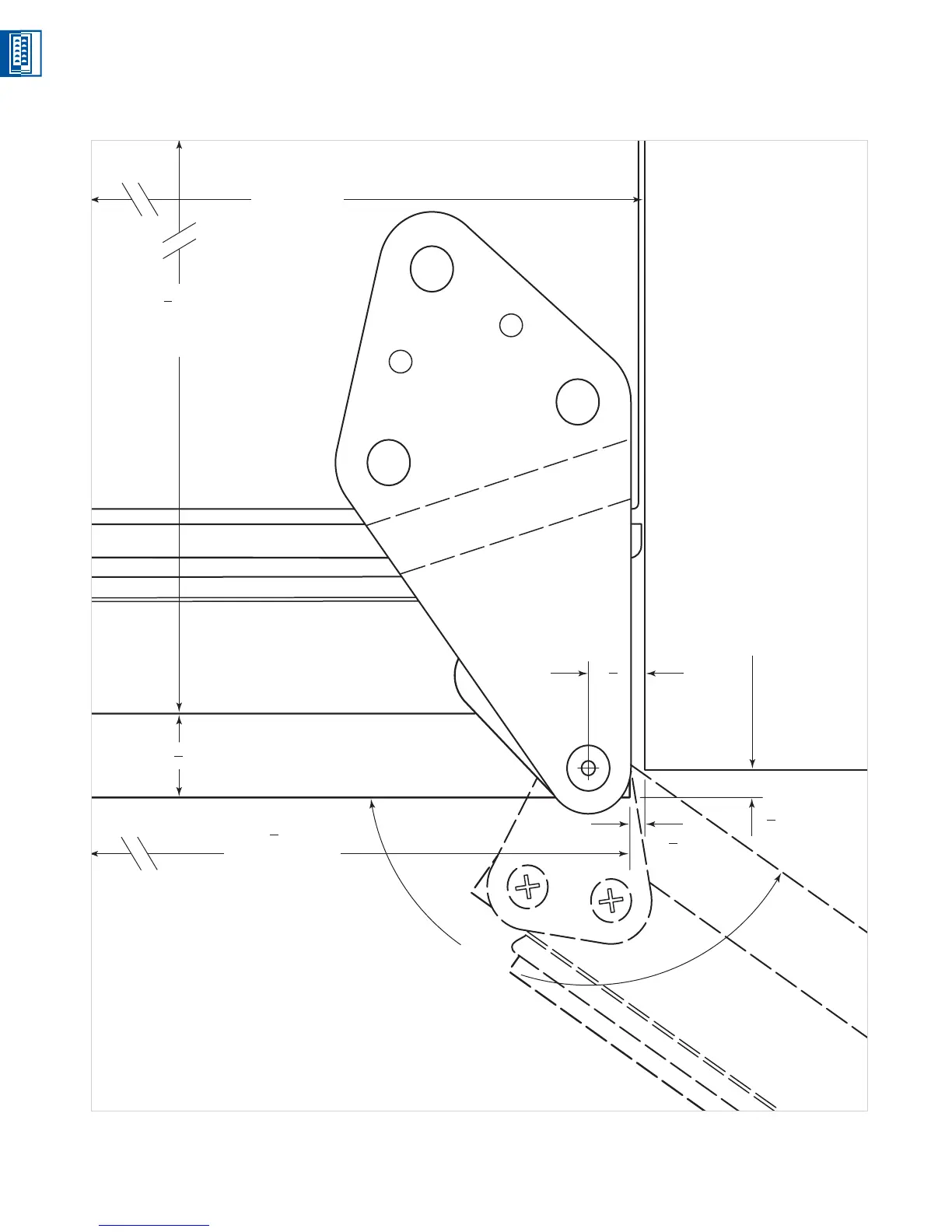

MODEL 424 – DOOR CLOSED AND 145˚ MAX OPENING
The full-scale illustration shows what
considerations you need to make for the
installation of Model 424 and how the
maximum door opening may interact with
adjacent cabinets and countertops.

Sub-Zero 427R Specifications

General

Brand	Sub-Zero
Model	427R
Category	Wine Cooler
Language	English
