Model WS-30 Installation 41
subzero.com
UPPER
HINGE BOLTS
Upper hinge bolts. Door adjustment bolts.
SIDE TO SIDE
TILT ADJUSTMENT
IN AND OUT
ADJUSTMENT
Door height adjustment.

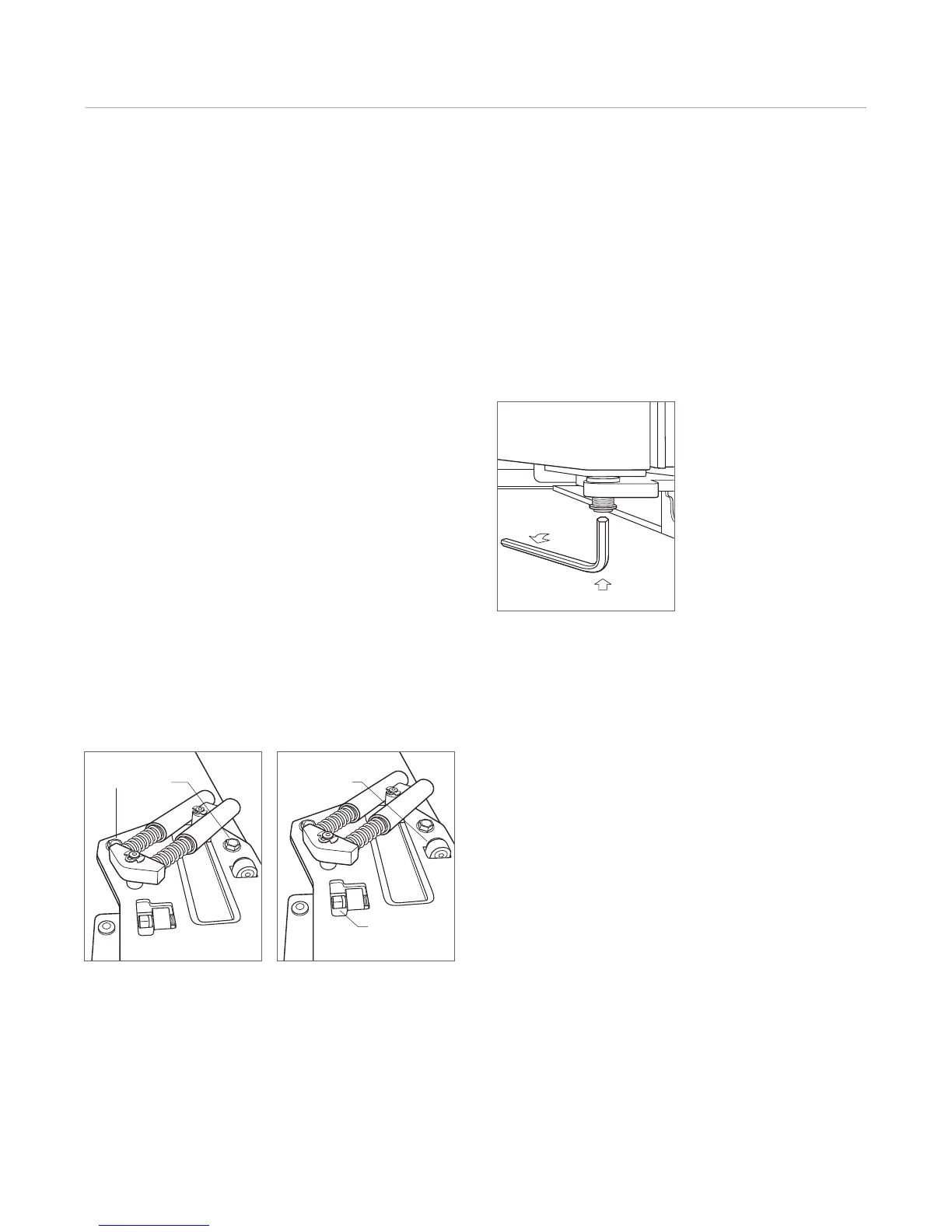

Door Adjustment
T
he door of the model WS-30 can be adjusted in three
ways: In and out, side to side tilt, and up and down.
Regardless of the adjustment being made, start by slightly
loosening the two upper hinge bolts on the upper hinge
plate using a
1
/2" wrench. Refer to the illustration below.
IN AND OUT ADJUSTMENT
Refer to the illustration for location of the bolt for in and
out door adjustment. To adjust a left-hinge door; using a
5
/32" allen wrench, turn the bolt clockwise to bring the
handle side of the door inward, and counterclockwise to
move the handle side of the door outward. Reverse the
directions for a right-hinge door.
SIDE TO SIDE TILT ADJUSTMENT
Refer to the illustration for location of the bolt for side to
side tilt door adjustment. To adjust a left-hinge door; using
a
3
/8" wrench, turn the bolt clockwise to raise the handle
side of the door up and counterclockwise to tilt the handle
side of the door down. Reverse the directions for a right-
hinge door.
DOOR HEIGHT ADJUSTMENT
To adjust a left-hinge door; using a
1
/4" allen wrench, turn
the bolt clockwise to raise the door and counterclockwise
to lower the door. Refer to the illustration below. Reverse
the directions for a right-hinge door.
