Sub-Zero 427RG Design Guide

subzero.com/specs | 7
WINE STORAGE
Custom Panels
Do not install a solid panel on a glass door unit. A solid door
is available as a sales accessory and must be installed if a
solid panel is specied. Service may be required to install
the door. Contact an authorized Sub-Zero dealer for more
information. Overall dimensions are the same for glass and
solid door panels.
D-style handles are recommended. Door handles must be
located near the edge of the panel opposite the hinge and
should be centered top to bottom. Drawer handles must
be located near the top edge of each panel. Stainless steel
tubular and pro handles are avail able through an authorized
Sub-Zero dealer. For local dealer information, visit the nd a
showroom section of our website, subzero.com.
An optional lock kit is available. Review the lock kit
instructions to ensure your panels will allow for adequate
installation. These instructions are available on our website,
subzero.com/specs.

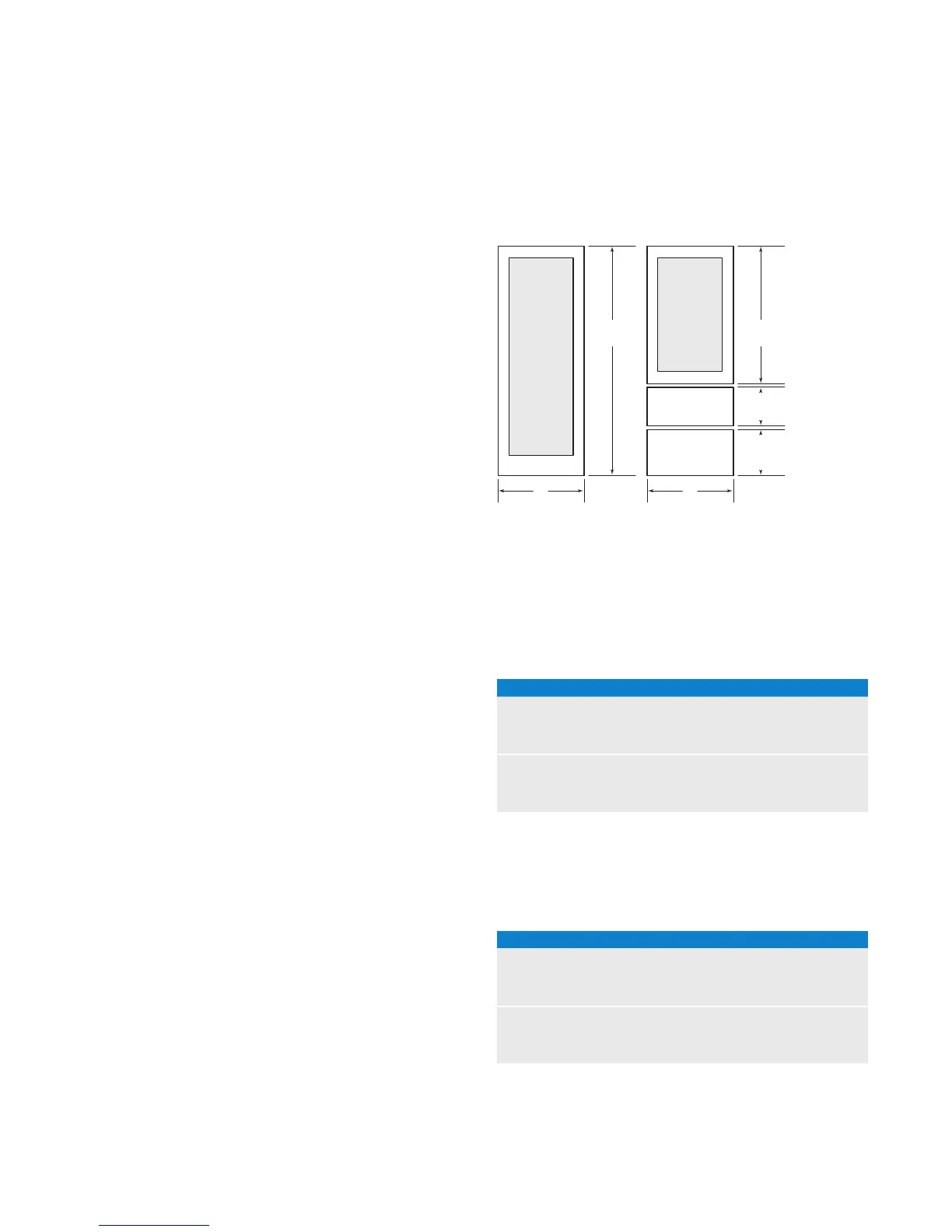

INTEGRATED PANEL DIMENSIONS
W
45
3
/8"
(1153)
13
9
/16"
(345)
16
11
/16"
(424)
W
75
7
/8"
(1927)
B
C
AA
B
C
AA
427G 427RG
Typical panel dimensions are based on an 80" (2032) overall
height, 4"
(102) toe kick and
1
/8" (3) reveals. Panel dimen-
sions must be adjusted accordingly for all other installations.
Refer to the illustration above for panel height and the chart
below for panel width.
PANEL WIDTH
MODEL W
427G 26
3
/4" (679)
427RG 26
3
/4" (679)
STILES / RAILS (MIN) A B C
427G 2
1
/4" (57) 3
3
/4" (95) 8" (203)
427RG 2
1
/4" (57) 3
3
/4" (95) 3" (76)
DUAL INSTALLATION
For dual installations, refer to the illustration above for panel
height and the chart below for panel width.
PANEL WIDTH—DUAL INSTALLATION
MODEL W
427G 26
13
/16" (681)
427RG 26
13
/16" (681)
STILES / RAILS (MIN) A B C
427G 2
1
/4" (57) 3
3
/4" (95) 8" (203)
427RG 2
1
/4" (57) 3
3
/4" (95) 3" (76)
