Models 427G and 427RG Installation 17
subzero.com
Models 427G and 427RG Installation
M
ake sure that the finished rough opening where the wine
storage unit is to be installed is properly prepared. Refer
to the opening dimensions illustrations for models 427G
and 427R on the previous page.
IMPORTANT NOTE: The floor under the wine storage unit
must be at the same level as the surrounding finished floor
to allow for removal of the unit for servicing.
IMPORTANT NOTE: To operate properly, the door must
open a minimum of 90°. Use a minimum 2"
(51) filler in
corner installations to assure a 90° door opening. Allow
enough clearance in front of the unit for full door swing.
IMPORTANT NOTE: The inside edges of the rough
opening, as well as the sides and a portion of the
backside of the decorative panels will need to be finished,
as they will be exposed when the doors are open.
TOOLS AND MATERIALS REQUIRED
• Appliance dolly able to support 500 lbs (227 kg) and
adequate manpower to handle the weight of the unit.
• Phillips and slotted screwdrivers.
• Allen, standard and crescent wrenches.
• Various sized pliers.
•
5
/16" hex bolt nut driver.
• Cordless drill and assorted drill bits.
• Level—2'
(.6 m) and 4' (1.2 m) recommended.
• Masonite, plywood, pressed fiberboard, cardboard or
other suitable material to protect finished flooring.
• Appropriate materials to cover and protect the home
and furnishings during installation.
IMPORTANT NOTE: The depth of each integrated model is
24"
(610) from the front of the unit to its back. Your design
may necessitate moving the unit back or cabinets forward to
achieve a flush fit. This will require a minimum rough opening
depth of 25"
(635).

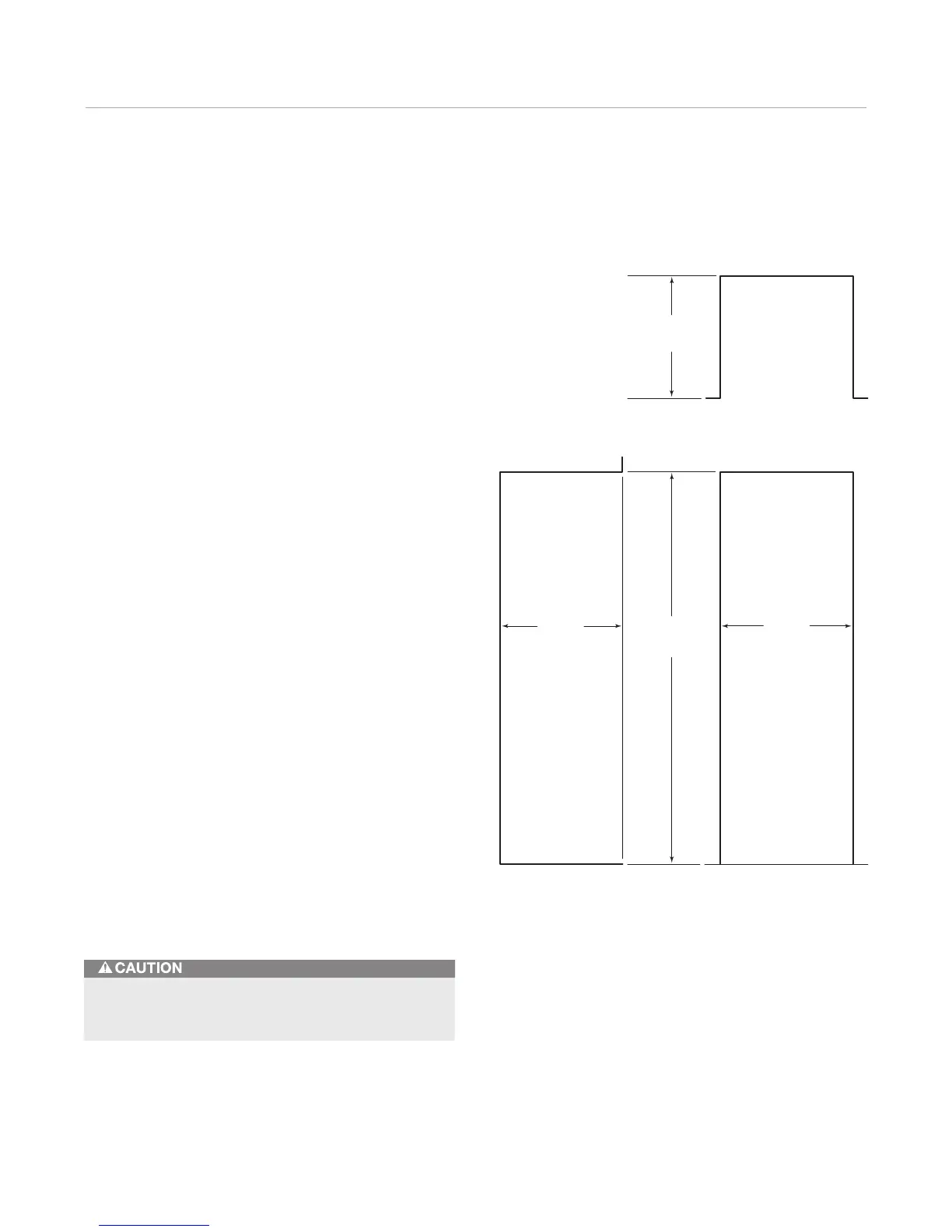

25" (
635)
OPENING
DEPTH
27" (686)
OPENING WIDTH
25" (635)
OPENING DEPTH
80" (2032)
O
PENING
HEIGHT
T
OP VIEW
FRONT VIEWSIDE VIEW
OPENING DIMENSIONS
Do not load wine into the wine storage unit until the
installation is complete.
