Component Access / Removal
#3758407 - Revision B - August, 2006

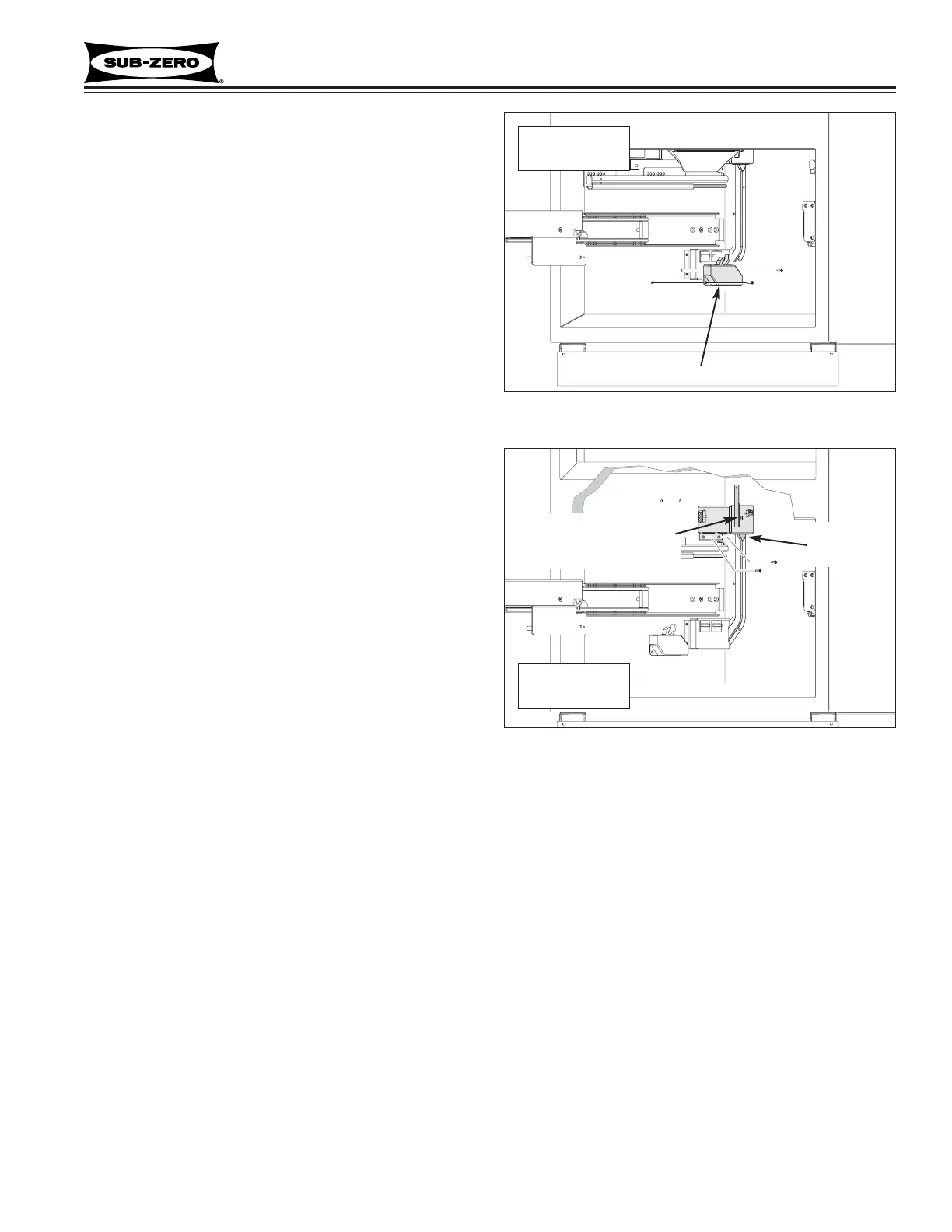

Figure 7-81. Drawer Closer
Drawer Closer
Starting w/Serial
#2354455
Freezer Drawer Closer Assembly
(611-2/611G-2,650-2/650G-2 Start w/Serial #2354455)
The drawer closer assembly is attached to the left side
wall with screws.
To access and remove a drawer closer assembly, first
remove the drawer front assembly and the lower freez-
er basket. Then, extract the screws that secure the
drawer closer to the side wall. (See Figure 7-81)
Freezer Ice Bucket (Icemaker) Switch
(611-2/611G-2,650-2/650G-2 Start w/Serial #2354455)
The ice bucket switch is in the upper switch enclosure,
which is attached to the side wall with screws.
To remove the ice bucket switch, first remove the draw-
er front assembly, lower and upper freezer baskets, and
the icemaker, then (See Figure 7-82):
1. Extract switch box mounting screws.
2. Flip the switch box over and disconnect switch elec-
trical leads.
3. Depress the tabs at back side of switch and push
switch from hole in switch box.
Freezer Compartment Thermistor
(611-2/611G-2,650-2/650G-2 Start w/Serial #2354455)
The freezer compartment thermistor is located inside
the upper switch enclosure.
To remove the compartment thermistor, first remove the
drawer front assembly, lower and upper freezer bas-
kets, and the icemaker, then (See Figure 7-82):
1. Extract screws securing switch enclosure to wall.
2. Lower enclosure, then disconnect thermistor wire
leads from wire harness.
NOTE: On newer models the thermistor is hard-
wired to the control board, so it will be necessary to
cut the thermistor wires to remove it.
3. Extract screw which secures thermistor to inside of
enclosure.
Figure 7-82. Ice Bucket Switch and
Compartment Thermistor
Ice Bucket
Switch
Compartment Thermistor
(Inside Enclosure)
Starting w/Serial
#2354455
