OVERLAY DOOR PANEL SPECIFICATIONS
All Refrigerator | All Freezer Overlay (O) Models
Model 601R W H
Refrigerator Overlay Panel 34
7
/16" (875) 59
1
/4" (1505)
Refrigerator Spacer Panel 33
1
/2" (851) 58
5
/16" (1481)
Refrigerator Backer Panel 34
1
/8" (867) 58
15
/16" (1497)
Model 601RG W H
Refrigerator Overlay Panel 34
7
/16" (875) 59
1
/4" (1505)
Refrigerator Spacer Panel 33
1
/2" (851) 58
5
/16" (1481)
Refrigerator Backer Panel 34
1
/8" (867) 58
15
/16" (1497)
Window Cut-out Dimensions 25
7
/16" (646) 41
1
/4" (1048)
Window Cut-out Location C) 4
1
/2" (114) D) 13
1
/2" (343)
Model 601F W H
Freezer Overlay Panel 34
7
/16" (875) 59
1
/4" (1505)
Freezer Spacer Panel 33
1
/2" (851) 58
5
/16" (1481)
Freezer Backer Panel 34
1
/8" (867) 58
15
/16" (1497)
IMPORTANT NOTE: Panel specifications are for Built-In overlay (O)
models. Panel specifications for framed models are on pages 20–21.
OVERLAY DOOR PANEL SPECIFICATIONS
Over-and-Under Overlay (O) Models
Model 611 W H
Refrigerator Overlay Panel 28
7
/16" (722) 48
7
/8" (1241)
Refrigerator Spacer Panel 27
1
/2" (699) 47
7
/16" (1205)
Refrigerator Backer Panel 28
1
/8" (714) 48
1
/16" (1221)
Freezer Overlay Panel 28
7
/16" (722) 18
11
/16" (475)
Freezer Spacer Panel 27
1
/2" (699) 17
3
/4" (451)
Freezer Backer Panel 28
1
/8" (714) 18
3
/8" (467)
Model 611G W H
Refrigerator Overlay Panel 28
7
/16" (722) 48
7
/8" (1241)
Refrigerator Spacer Panel 27
1
/2" (699) 47
7
/16" (1205)
Refrigerator Backer Panel 28
1
/8" (714) 48
1
/16" (1221)
Freezer Overlay Panel 28
7
/16" (722) 18
11
/16" (475)
Freezer Spacer Panel 27
1
/2" (699) 17
3
/4" (451)
Freezer Backer Panel 28
1
/8" (714) 18
3
/8" (467)
Window Cut-out Dimensions 19
7
/16" (494) 39
3
/8" (1000)
Window Cut-out Location C) 4
1
/2" (114) D) 5" (127)
Model 650 W H
Refrigerator Overlay Panel 34
7
/16" (875) 48
7
/8" (1241)
Refrigerator Spacer Panel 33
1
/2" (851) 47
7
/16" (1205)
Refrigerator Backer Panel 34
1
/8" (867) 48
1
/16" (1221)
Freezer Overlay Panel 34
7
/16" (875) 18
11
/16" (475)
Freezer Spacer Panel 33
1
/2" (851) 17
3
/4" (451)
Freezer Backer Panel 34
1
/8" (867) 18
3
/8" (467)
Model 650G W H
Refrigerator Overlay Panel 34
7
/16" (875) 48
7
/8" (1241)
Refrigerator Spacer Panel 33
1
/2" (851) 47
7
/16" (1205)
Refrigerator Backer Panel 34
1
/8" (867) 48
1
/16" (1221)
Freezer Overlay Panel 34
7
/16" (875) 18
11
/16" (475)
Freezer Spacer Panel 33
1
/2" (851) 17
3
/4" (451)
Freezer Backer Panel 34
1
/8" (867) 18
3
/8" (467)
Window Cut-out Dimensions 25
7
/16" (646) 39
3
/8" (1000)
Window Cut-out Location C) 4
1
/2" (114) D) 5" (127)
IMPORTANT NOTE: Panel specifications are for Built-In overlay (O)
models. Panel specifications for framed models are on pages 20–21.

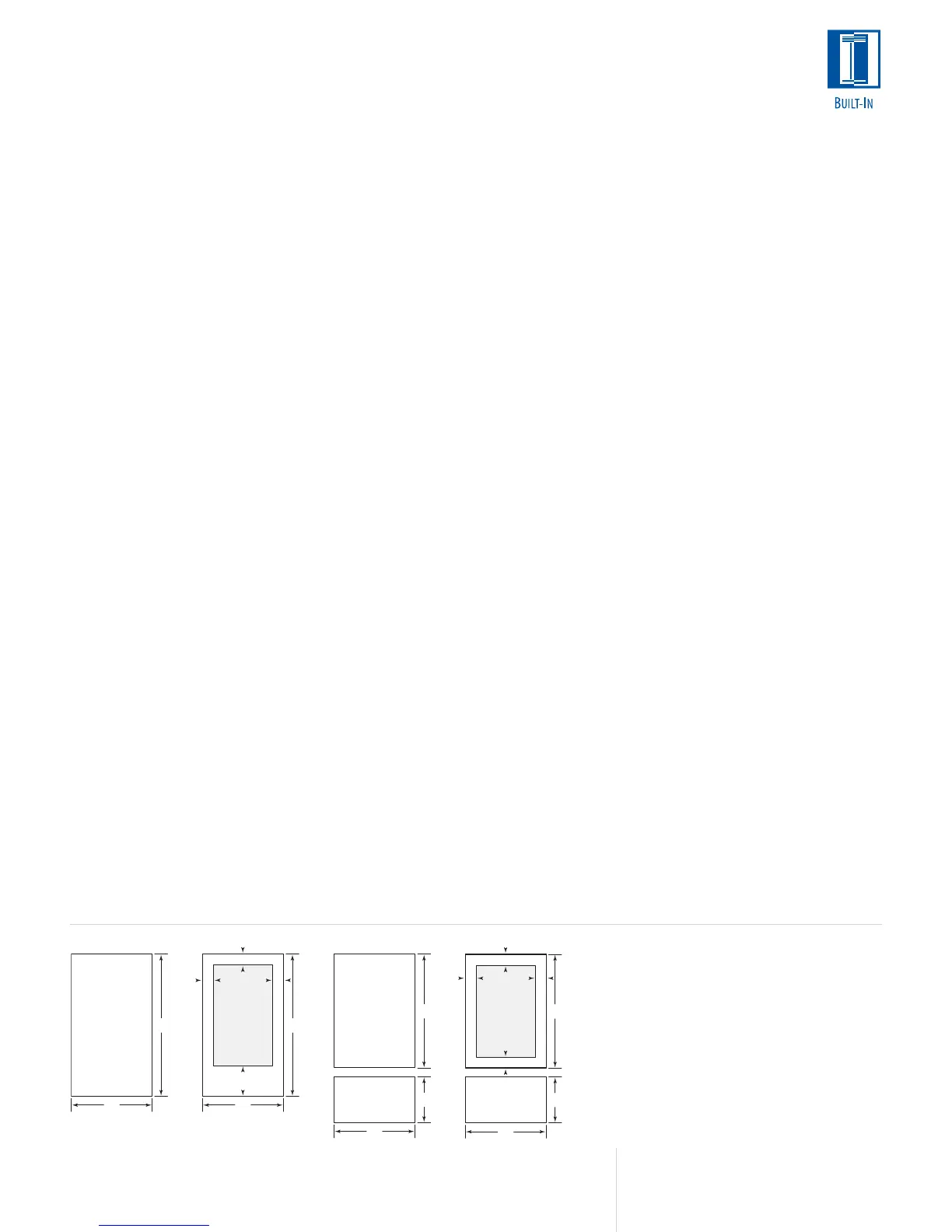

Models 611 and 650 Models 611G and
650G
Model 601RGModels 601R
and 601F
OVERLAY PANELS
Panel specifications
are for Built-In
overlay (O) models.
To install overlay
panels, see the
detailed procedures
outlined in the
Sub-Zero Built-In
Installation Guide.
Dimensions in parentheses are in
millimeters unless otherwise specified.
