Dimensions in parentheses are in
millimeters unless otherwise specified.
1
8
MIN.
(3)
REVEAL
3
4
PANEL
LINE OF INTERFERENCE
AT MAXIMUM DOOR OPENING
MOUNTING BRACKET SCREW
(19)
TO BACK
OF UNIT
24
(610)
SIDE MOLDING AND
INSTALLATION HARDWARE
PROVIDED BY SUB-ZERO
LINE OF INTERFERENCE
SUB-ZERO DOOR
25
7
8
(657)
APPLIANCE DOOR WIDTH
34
7
8
(886)
FOR MODEL 736TC(I)
IMPORTANT NOTE: The depth of each
Integrated model is 24" (610) from the
front of the unit to its back. Your
design may necessitate moving the
unit back or cabinets forward to
achieve a flush fit.
FRAMELESS CABINETRY
DOOR CLOSED

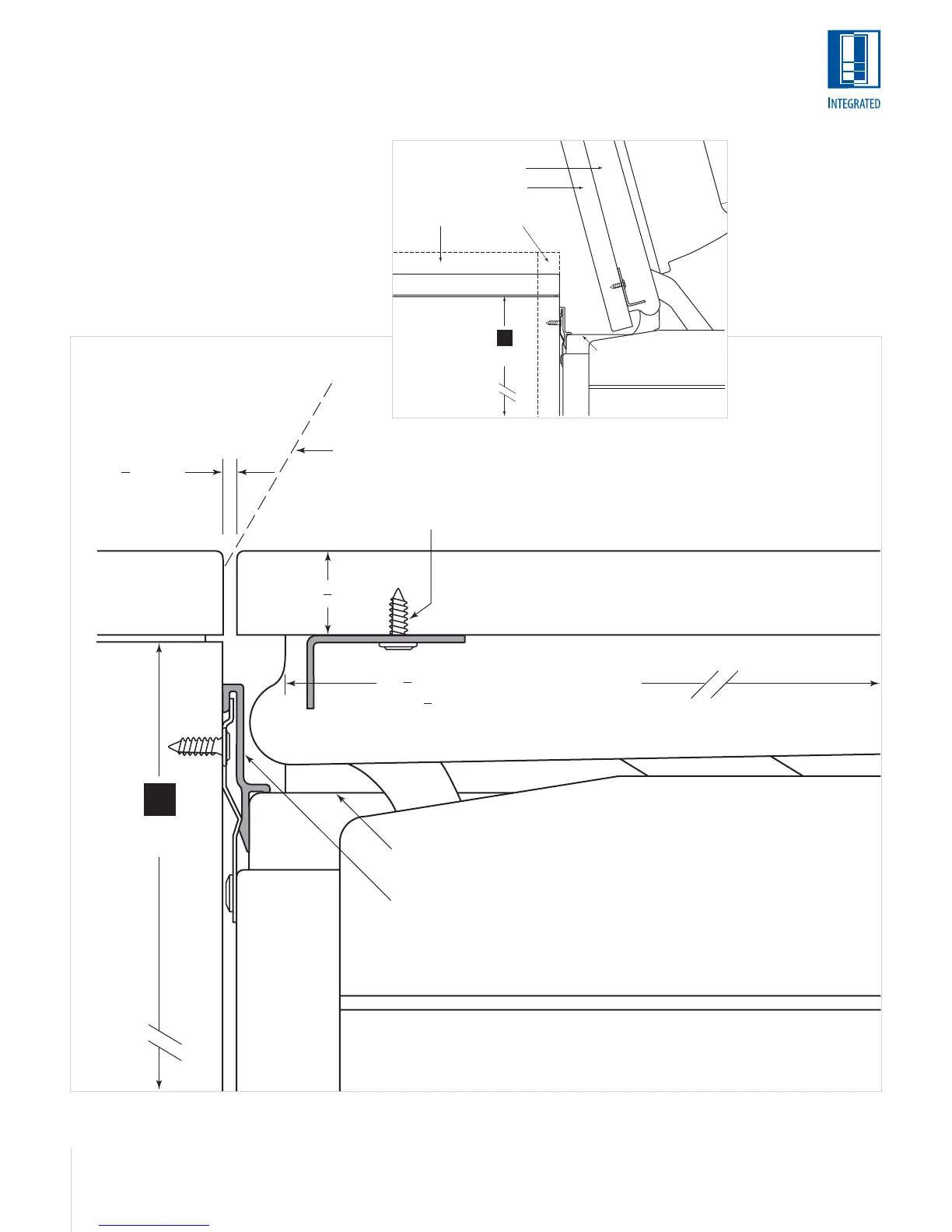

Full-scale (top view)
TO
WALL
24
(610)
LINE OF INTERFERENCE
SUB-ZERO DOOR
3
/4" (19) DOOR PANEL
SIDE PANEL
COUNTERTOP
105˚ MAXIMUM
DOOR OPENING
1/4 scale (top view)
Adjacent side panel and
countertop application.
