Electronic Control System
600 Series
(Prior to #1810000)
3-4
#3756270 - Revision B - January, 2006
Control Board Summary / Layout
The electrical connection points on the control board are labeled, indicating which components are connected at
which connection points. Below is a layout diagram of the control board, followed by a summary table.
NOTE: All components on the control board are non-replaceable.

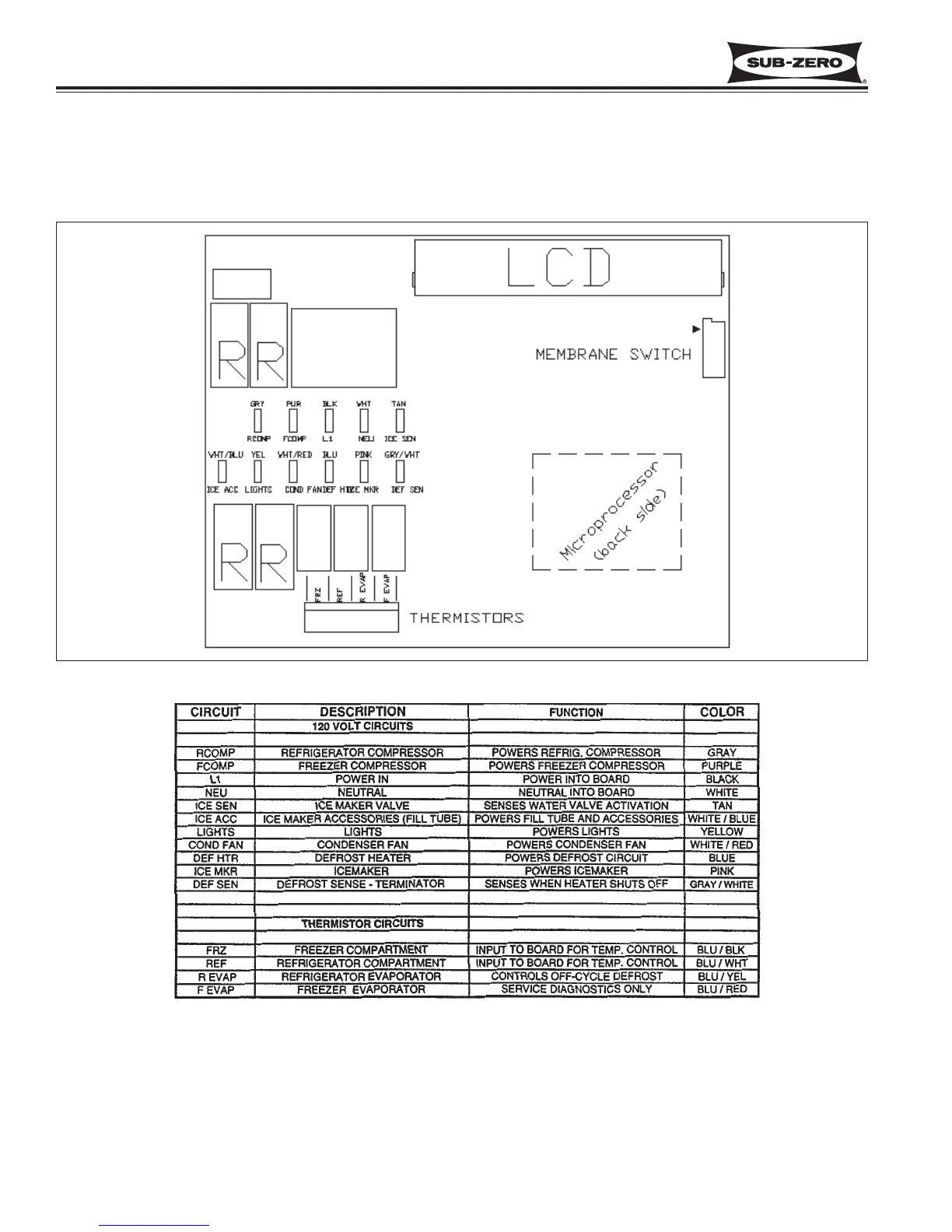

Figure 3-2. Control Board Diagram
Figure 3-3. Control Board Summary Table
