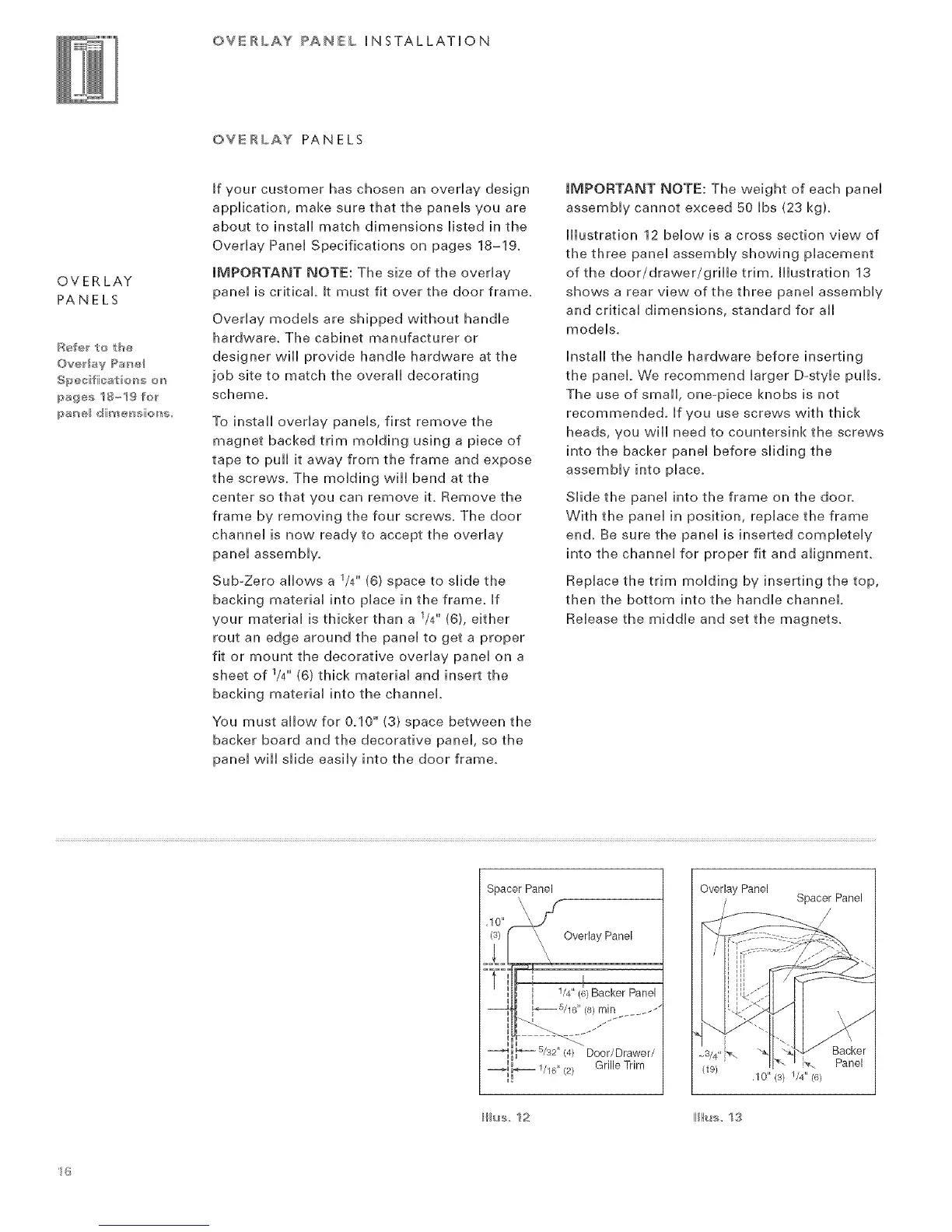

Sub-Zero 601R

OVERLAY PANEL iNSTALLATiON
OVERLAY PANELS
OVERLAY
PANELS
IRefe_ to t_e
OveHay Pa_e_
_)agea 18.19 for
If your customer has chosen an oveHay design
application, make sure that the paneis you are
about to install match dimensions Hsted in the
OveHay Panei Specifications on pages 18-19.
IMPORTANT NOTE: The size of the oveHay
panel is critical. It must fit over the door frame.
Overlay models are shipped without handle
hardware. The cabinet manufacturer or
designer will provide handle hardware at the
job site to match the overall decorating
scheme.
To install overlay panels, first remove the
magnet backed trim molding using a piece of
tape to pull it away from the frame and expose
the screws. The molding will bend at the
center so that you can remove it. Remove the
frame by removing the four screws. The door
channel is now ready to accept the overlay
panel assembly.
Sub-Zero allows a 1/4" (6) space to slide the
backing material into place in the frame. If
your material is thicker than a 1/4" (6), either
rout an edge around the panel to get a proper
fit or mount the decorative overlay panel on a
sheet of 1/4" (6) thick material and insert the
backing material into the channel.
You must allow for 0.10" (3) space between the
backer board and the decorative panel, so the
panel will slide easily into the door frame.
IMPORTANT NOTE: The weight of each panel
assembly cannot exceed 50 Ibs (23 kg).
illustration 12 below is a cross section view of
the three panel assembly showing placement
of the door/drawer/grille trim. Illustration 13
shows a rear view of the three panel assembly
and critical dimensions, standard for aii
models.
Install the handle hardware before inserting
the panel. We recommend larger D-style pulis.
The use of small, one_piece knobs is not
recommended. If you use screws with thick
heads, you will need to countersink the screws
into the backer panel before sliding the
assembly into place.
Slide the panel into the frame on the doon
With the panel in position, replace the frame
end. Be sure the panel is inserted completely
into the channel for proper fit and alignmenL
Replace the trim molding by inserting the top,
then the bottom into the handle channek
Release the middle and set the magnets.
Spacer Panel
Overlay Panel
1/4" (6) Backer Panel
i_ 5/16 '' (8) rnin ...... -"
Door/Drawer/
Grille Trirn
Overlay Panel
/
SpacerPanel
/
_. Panel
.10" (s) 1/4" (6)
_h_s 12 II_ua 13
16
