OVERLAY PANEL GRILLE
Overlay grille panels for the panel grille match
the design of the door panels. Overlay units,
except Models 601R, 601RG and 601F, come
standard with an 11" (279) panel grille. Optional
grilles are available in 1" (25) height increments
from 10" (254) to 15" (381). Overlay grille panel
specifications for the panel grille are listed on
page 26. Also refer to illustration 7 below for
additional overlay panel dimensions.
Do not exceed the panel dimensions listed
for the appropriate overlay grille panel you
are specifying. The decorative panel cannot
be any larger or it may restrict the airflow
to the compressor area and cause problems
with the operation of the Sub-Zero unit.
OVERLAY DOOR PANELS
If you are using an overlay door panel with
Model 601R, 601RG, 601F, 611, 611G, 650 or
650G, it is necessary to rout a space for the
unit‘s lower hinge plate so it does not strike the
door panel. Refer to illustration 5.
For Models 611, 611G, 650 and 650G, you will
minimize the reveal between the bottom of the
overlay door panel and the top of the overlay
drawer panel. Refer to illustration 6.
IMPORTANT NOTE: If you choose not to rout a
space for the lower hinge plate, you can reduce
the total height of the overlay panel (decorative
panel only) by
1
/2" (13).
For Models 685 and 695, the refrigerator door
panel must include a cut-out to accommodate
the glasswell and bezel. The thickness of the
panel in this area can range from
1
/4" (6) to a
maximum of 1
1
/8" (29). If the panel is thicker,
provisions must be made to rout out a space to
accommodate the decorative bezel surrounding
the glasswell. Refer to the Overlay Panel Specifi-
cations for Models 685 and 695 on page 26.
Overlay Panel
5
/16
"
(8)
17
/32
"
(13)
27
/32
"
(21)
Spacer Panel
Backer
Panel
1
/4 "(6) Backer Panel
Overlay Panel
3"
(76)
Bottom Edge –
Hinge Side
(rear view)
Spacer Panel
3
/8 " (10)
1
/2 "
(13)

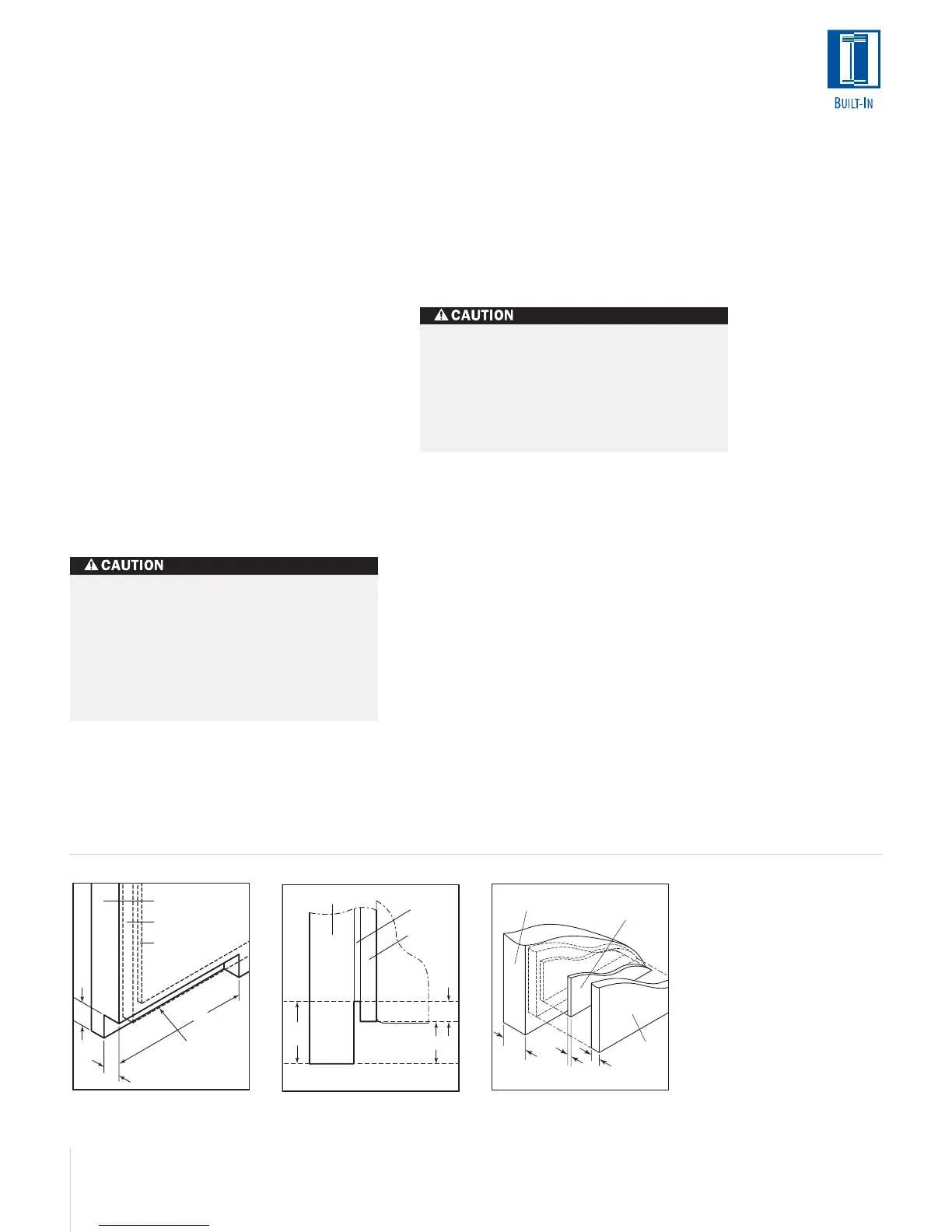

Illus. 5 Illus. 6
Do not exceed the overlay decorative panel
dimensions for Models 611, 611G, 650 or
650G listed on page 25. If you try to make
the reveal tighter between the door and
drawer panels, the panels may hit when
opening and closing, causing possible
damage to the panels and the Sub-Zero unit.
Spacer Panel
Overlay Panel
1
/ 4 " (6)
Backer
Panel
.10"
(3)
~
3
/ 4 "
(19)
Illus. 7
PANEL WEIGHT
The weight of each
door panel assembly
cannot exceed
50 lbs (23 kg).
PANEL
THICKNESS
The total thickness
of all panels for an
overlay model must
be a minimum of
5
/8" (16) thick.
