FULL-SCALE
TEMPLATES
The full-scale
illustrations on the
following pages
enable you to under-
stand some of the
unique situations
you may face as you
plan for the installa-
tion of the Built-In
models. Use these
illustrations as
templates for
panel and handle
hardware
considerations.
PANEL AND HANDLE PROFILE – FRAMED APPLICATION
1
1
/4"(32) PANEL
1"(25) PANEL
1
/4"(6) PANEL
1
/2"(13) PANEL
3
/4"(19) PANEL
OPTIONAL
EXTENDED
FULL-LENGTH
HANDLE
STANDARD
FULL-LENGTH
HANDLE
DOOR
1
/4"(6) FRAMED PANEL
1"
(25)
2"
(51)
3"
(76)

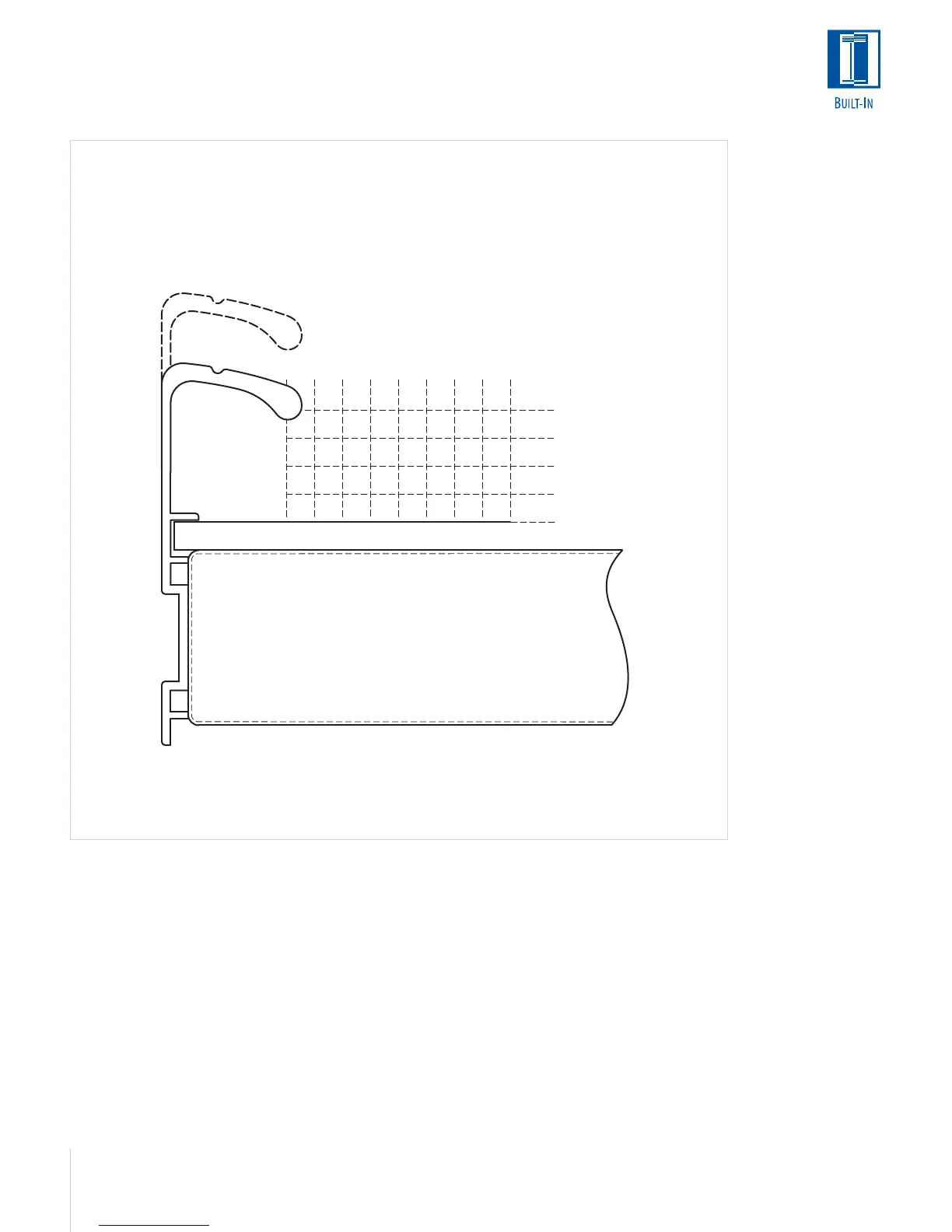

The full-scale illustration above shows
handle placement for the framed appli-
cation standard full-length handle and
the optional extended full-length handle
shown in the dashed line.
