Installation Notes
For framed and overlay models, you will be
adding door panels for a custom look. Overlay
models also allow you to match surrounding
cabinetry hardware and the panel grille
accepts custom panel inserts.
Complete installation specifications, including
panel sizes, can be found on our website,
subzero.com.
Unit dimensions may vary by ±
1
/
8
".
48"
(1219)
24"
(610)
84"
(2134)
23
7
/8"
(606)
BEHIND
FRAME
29
1
/4"
(743)
48"
(1219)
3
/8" (10)
FRAME EXTENSION
47
1
/4"
(1200)
Specifications
Overall Width 48"
Overall Height (with standard 11" grille) 84"
Overall Depth 24"
Door Swing Clearance 29
1
/4"
Refrigerator Capacity 18.9 cu ft
Freezer Capacity 9.8 cu ft
Opening Width 47
1
/2"
Opening Height 83
3
/4"*
Minimum Height Required 83"
Opening Depth 24"
Electrical Requirements 115 V AC, 60 Hz
15 amp dedicated circuit
Plumbing Requirements
1
/4" OD copper line
20–100 psi
Annual Energy Usage $62**
Shipping Weight Framed – 582 lbs
Overlay – 582 lbs
Stainless Steel – 630 lbs
*Height with standard 11" grille.
**Based on 9.06 cents per kilowatt hour.
83
3
/4"
(2127)
ROUGH
OPENING
HEIGHT
WITH
STANDARD
11" (279)
GRILLE
75
1
/2"
(1918)
7"
(178)
6"
(152)
47
1
/2"
(1207)
ROUGH OPENING WIDTH
24"
(610)
ROUGH
OPENING
DEPTH
E
3"
(76)
18"
(457)
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
LOCATE ELECTRICAL
WITHIN SHADED AREA
6"
(152)
SHUT-OFF
VALVE
EXTEND WATER LINE
APPROX. 36" (914)
FROM BACK WALL
FRONT VIEW
TOP VIEW

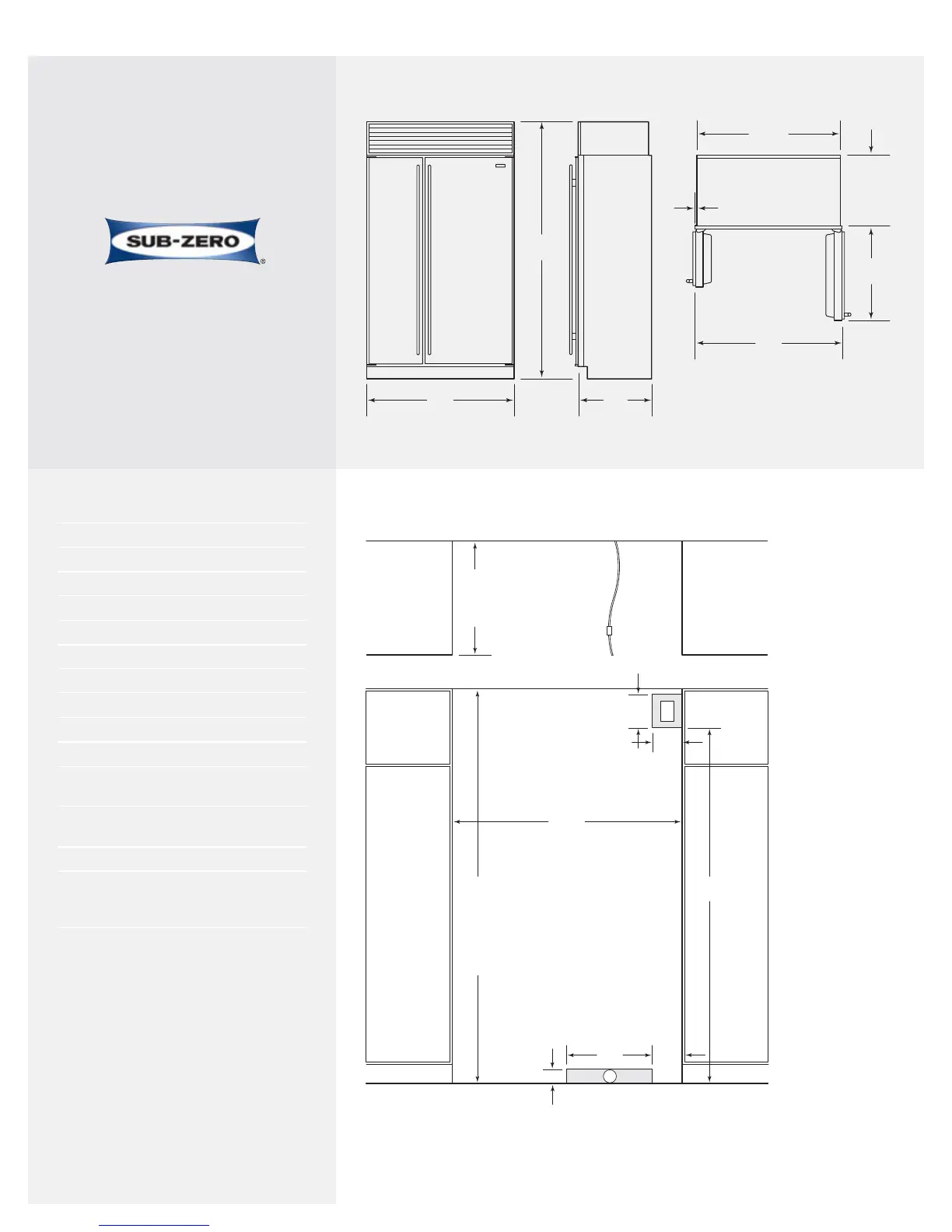

Installation Specifications
Overall Dimensions
Built-In Model 632
Side-by-Side
Dimensions in parentheses are in
millimeters unless otherwise specified.
