7
For Models 601R, 601RG and 601F (stainless steel), the
lower grille snaps out by pulling forward on the bottom of
the grille.
If you’re installing overlay Models 611, 611G, 650, 650G,
561, 661, 642, 685, 632 and 695, first remove the inner
grille panel assembly, as shown in illustration 4. Lift up, then
pull out at the bottom, pull the top section down and out of
the top key slot. Next, remove the five mounting screws
that hold the outer grille panel assembly to the top com-
partment. See illustration 5.
UNPACKING THE SUB-ZERO
Step 5: Uncrate the unit, remove its wood base and discard
the shipping bolts that hold the wood base to the bottom
of the refrigerator. Remove all packing materials and tape
as well. Do not discard the kickplate. Also, do not discard
the anti-tip kit and hardware, because you may need them
to block your installation. Next, retract the front leveler legs
to let you move the unit more easily during installation.
To reduce the possibility of the unit tipping forward, posi-
tion the front levelers flat on the floor. Extend these legs
when the unit is finally positioned.
REMOVING THE GRILLE

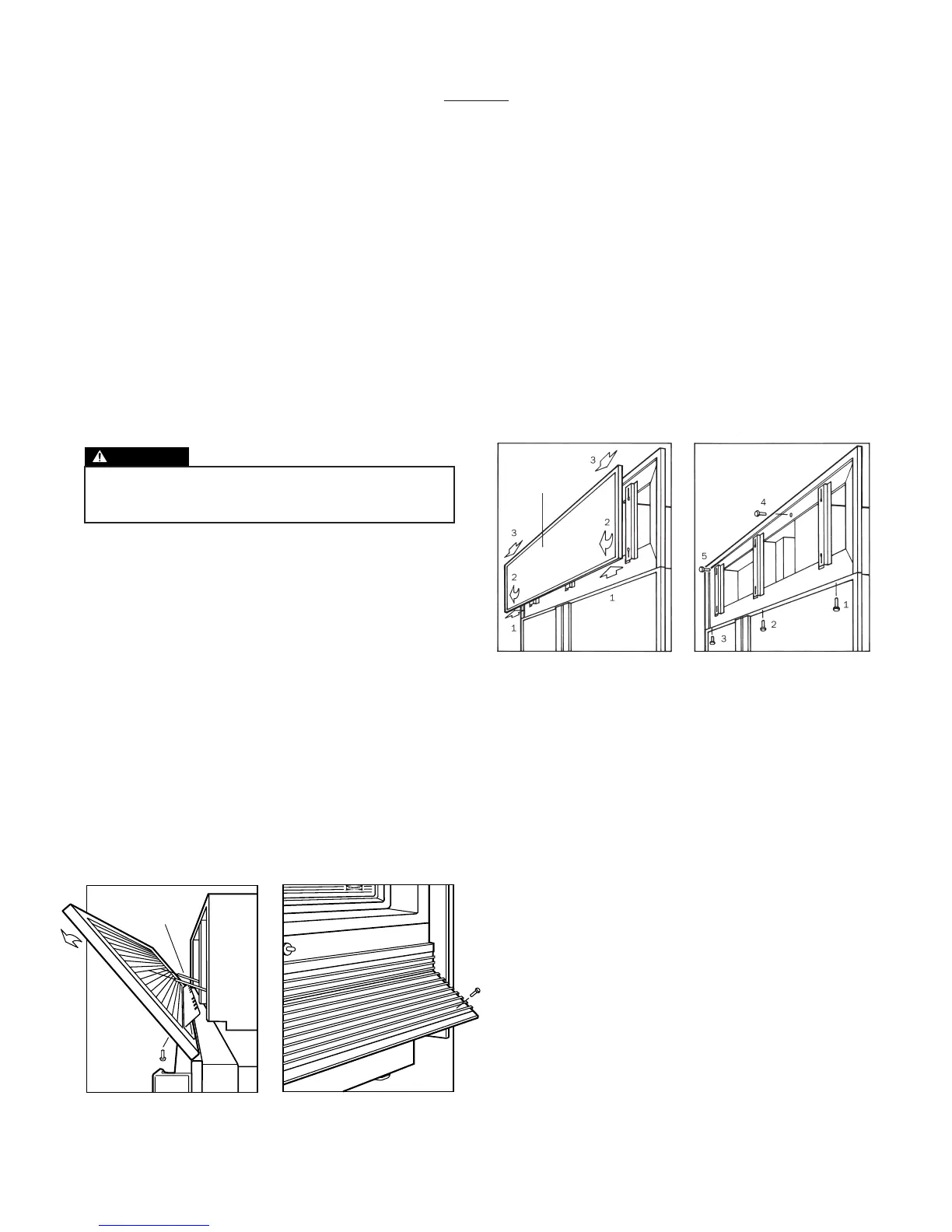

Step 6: Remove the grille in order to get to the power cord
and move the unit through doorways. For framed and stain-
less steel Models 611, 611G, 650, 650G, 561, 661, 642, 680,
685, 632, 690 and 695, remove three counter-sunk grille
screws at the bottom of the grille and cut the red nylon
shipping strap. NOTE: Grille screws are accessed with
door(s) open. Then tilt the grille forward and release the
springs from behind the grille. See illustration 2.
For Models 601R, 601RG and 601F (framed and overlay),
remove the two black screws in the lowest louver in the
grille. Tilt the bottom of the grille out and away. It’ll release
from the top of the grille. See illustration 3.
