22
OVERLAY DOOR PANELS
If you and your client have ordered an overlay
design model, you will be adding panels to give
the unit the custom Sub-Zero look. The overlay
panel design option is available on all Built-In
units except Models 648PRO and 648PROG.
For exact door panel dimensions for Built-In
overlay models, refer to the Overlay Panel Speci-
fications on pages 25–26.
The overlay design allows decorative panels to
cover the door trim for a more seamless
appearance that blends with the design of the
room. To achieve this look, the most common
way is to work with three panels—the decorative
overlay panel, a 0.10" (3) spacer panel and a
1
/4"
(6) backer panel. Depending on your cabinet
manufacturer, this could be one panel routed for
different dimensions or, more likely, three differ-
ent panels.
Regardless of the physical construction of the
panels (routing or three-panel assembly), you will
need to follow the Overlay Panel Specifications
on the following pages for exact sizing and panel
placement to ensure a proper fit.

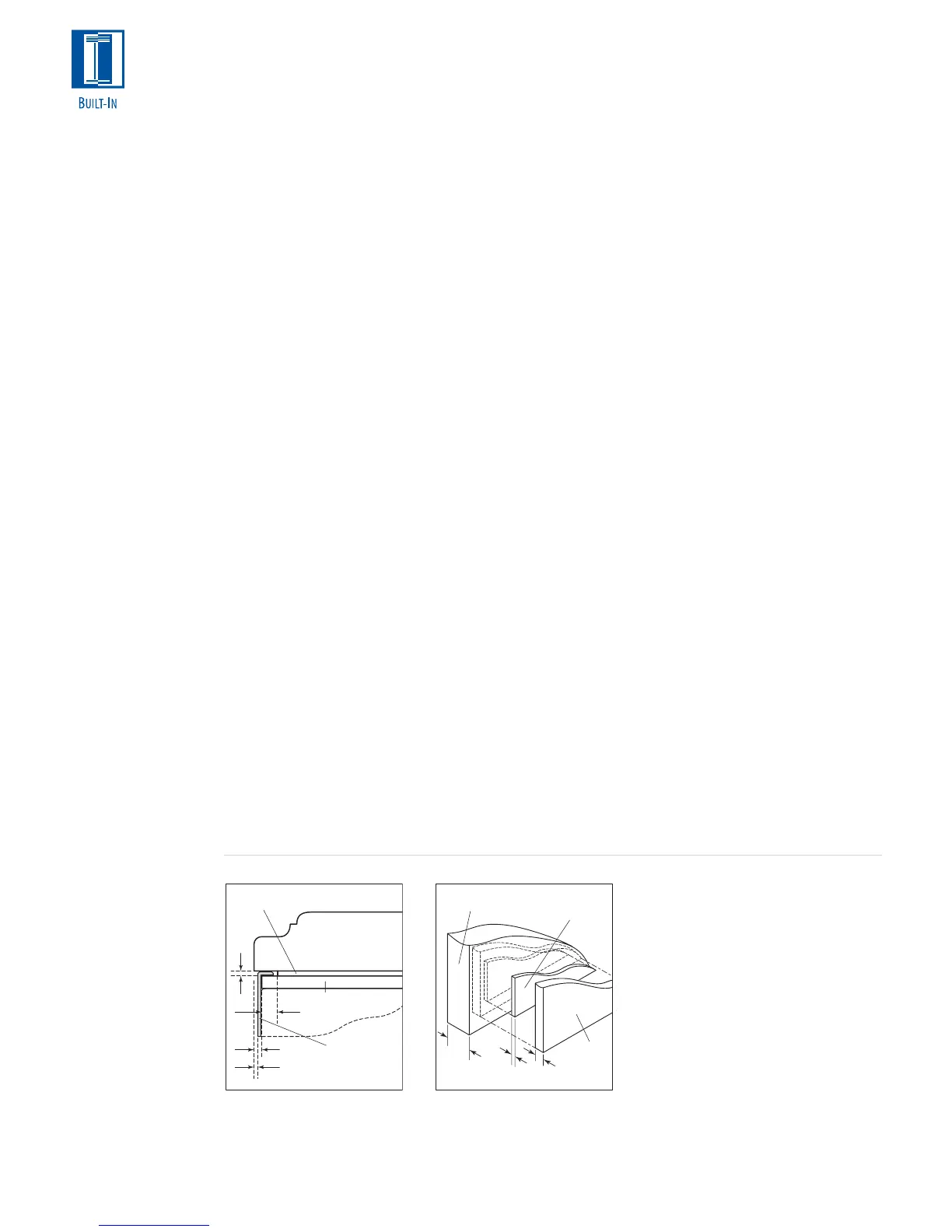

Illustration 3 is a cross section view of the three-
panel assembly showing placement of the door,
drawer or grille trim. Illustration 4 shows a rear
view of the three-panel assembly and critical
dimensions, standard for all models.
IMPORTANT NOTE: Keep in mind that the
Sub-Zero door panels have the potential for
hitting adjacent cabinets and/or countertops
when they are opened. You need to be aware of
your surrounding cabinetry and space limitations
when using the overlay models. Refer to the full-
scale illustrations at the end of this section.
For glass door Models 601RG, 611G and 650G,
the refrigerator door panel must include a cut-
out to accommodate the window. Refer to the
Overlay Panel Specifications for Models 601RG,
611G and 650G on page 25.
IMPORTANT NOTE: On glass door models, the
glass portion of the door must be exposed and
not covered by any part of the panel.
Spacer Panel
Overlay Panel
1
/
4
"
(6)
Backer
Panel
.10"
(3)
~
3
/
4
"
(19)
Door/Drawer/
Grille Trim
1
/
16
"
(2)
5
/
32
"
(4)
1
/
4
"
(6)
Backer Panel
5
/
16
"
(8)
min
.10"
(3)
Spacer Panel
Overlay Panel
Illus. 4Illus. 3
INSTALLATION
To install overlay
panels, see the
detailed procedures
outlined in the
Sub-Zero Built-In
Installation Guide.
PANEL WEIGHT
The weight of each
door panel assembly
cannot exceed
50 lbs (23 kg).
PANEL
THICKNESS
The total thickness
of all panels for an
overlay model must
be a minimum of
5
/8" (16) thick.
