Sub-Zero 632

Dimensions in parentheses are in
millimeters unless otherwise specified.
46

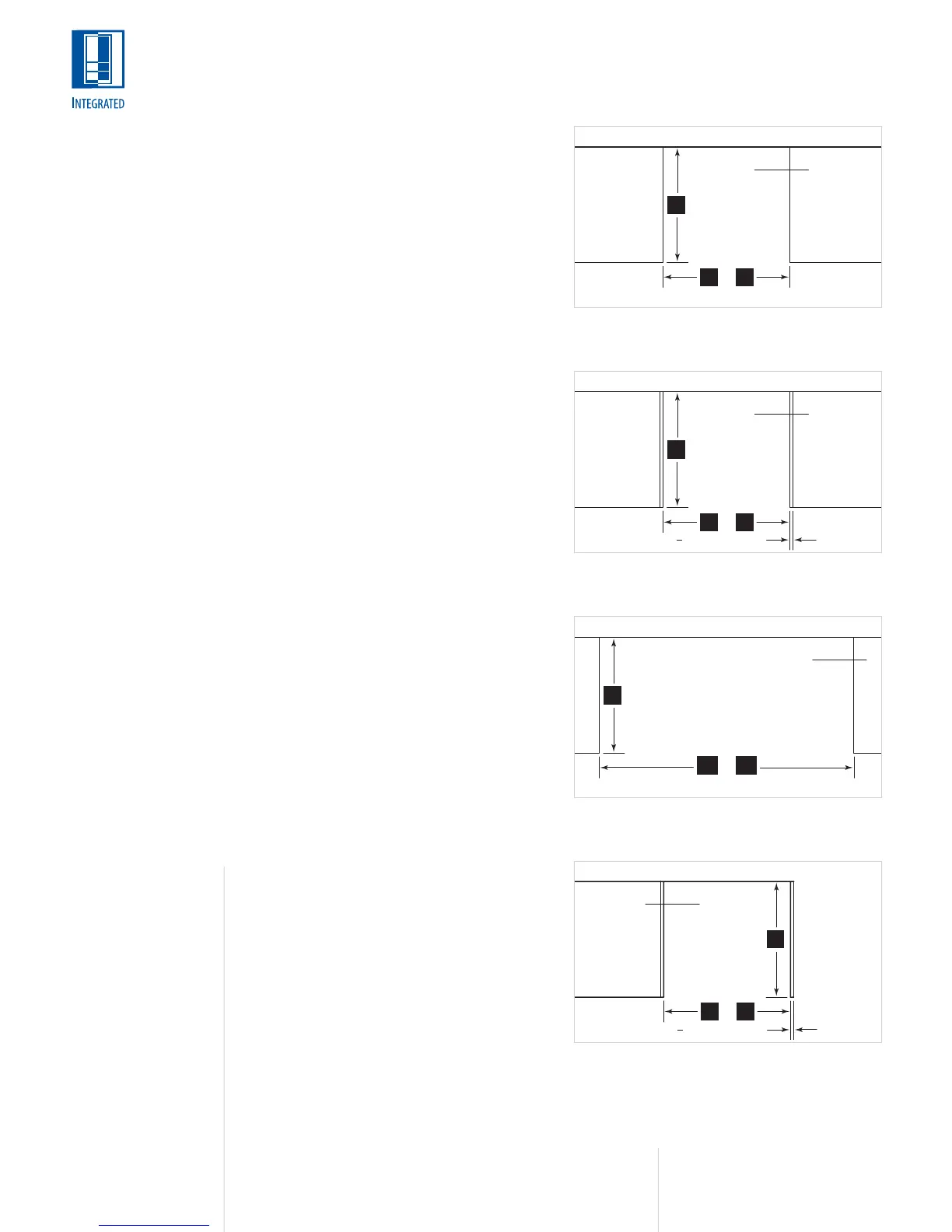

INSTALLATION OPTIONS
The illustrations show some typical installations
and their dimension considerations. The depth
dimension in the illustrations may vary depend-
ing on cabinet styles, treatment of countertops
or other design options.
IMPORTANT NOTE: The depth of each
Integrated model is 24" (610) from the front of
the unit to its back. Your design may necessitate
moving the unit back or cabinets forward to
achieve a flush fit. This will require a minimum
rough opening depth of 25" (635). Refer to the
illustrations.
NOTE: In the Installation Options illustrations,
the first width dimension shown is for 27" (686)
wide units and the second dimension is for the
Model 736TC(I).
DUAL INSTALLATIONS
If two or more Integrated models are installed
side by side where there is 2" (51) or less of
space between the units, a heater kit is recom-
mended—TTDUAL for two tall units installed side
by side and BBDUAL for base units. These
optional components are available through your
Sub-Zero dealer.
TOP VIEW
CABINETS
25
(635)
36
(914)
27
(686)
OR
Installation without side panels
Installation with side panels
Installation of two units side by side
Installation at end of run
SERVICE INFORMATION
Sub-Zero Freezer Co., Inc.
Customer Service Department
P. O. Box 44130
Madison, WI 53744-4130
Service line: 800-222-7820
E-mail: customerservice@subzero.com
Website: www.subzero.com
If service is necessary, contact customer
service by phone or e-mail and include
the model and serial number.
Make sure that product registration
forms are filled out and returned, to
assure that your information is in our
database.
INSTALLATION
To install integrated
panels, see the
detailed procedures
outlined in the
Sub-Zero Integrated
Installation Guide.
MINIMUM (16) SIDE PANELS
5
8
CABINETS
25
(635)
36
(914)
27
(686)
OR
TOP VIEW
CABINETS
72
(1829))
)
54
(1372)))
25
(635)
OR
MINIMUM (16) SIDE PANELS
5
8
CABINETS
25
(635)
36
(914)
27
(686)
OR
