INTEGRATING CABINETRY
Unless you are installing a stainless steel model,
you will need to provide a complete door panel
in the instance of a solid door model, or a frame
for the glass door application where wine will be
seen from the outside. If you order a stainless
steel unit, Models 424, 424FS and 430 will be
shipped with their panels and hardware installed
and you will merely install the Sub-Zero.
However, for Models 427 and 427R, you will
have to have the stainless steel panels and
handles installed.
Wine Storage solid door models are available as
a special order. You must allow 90 days from the
time of order until you can expect delivery.

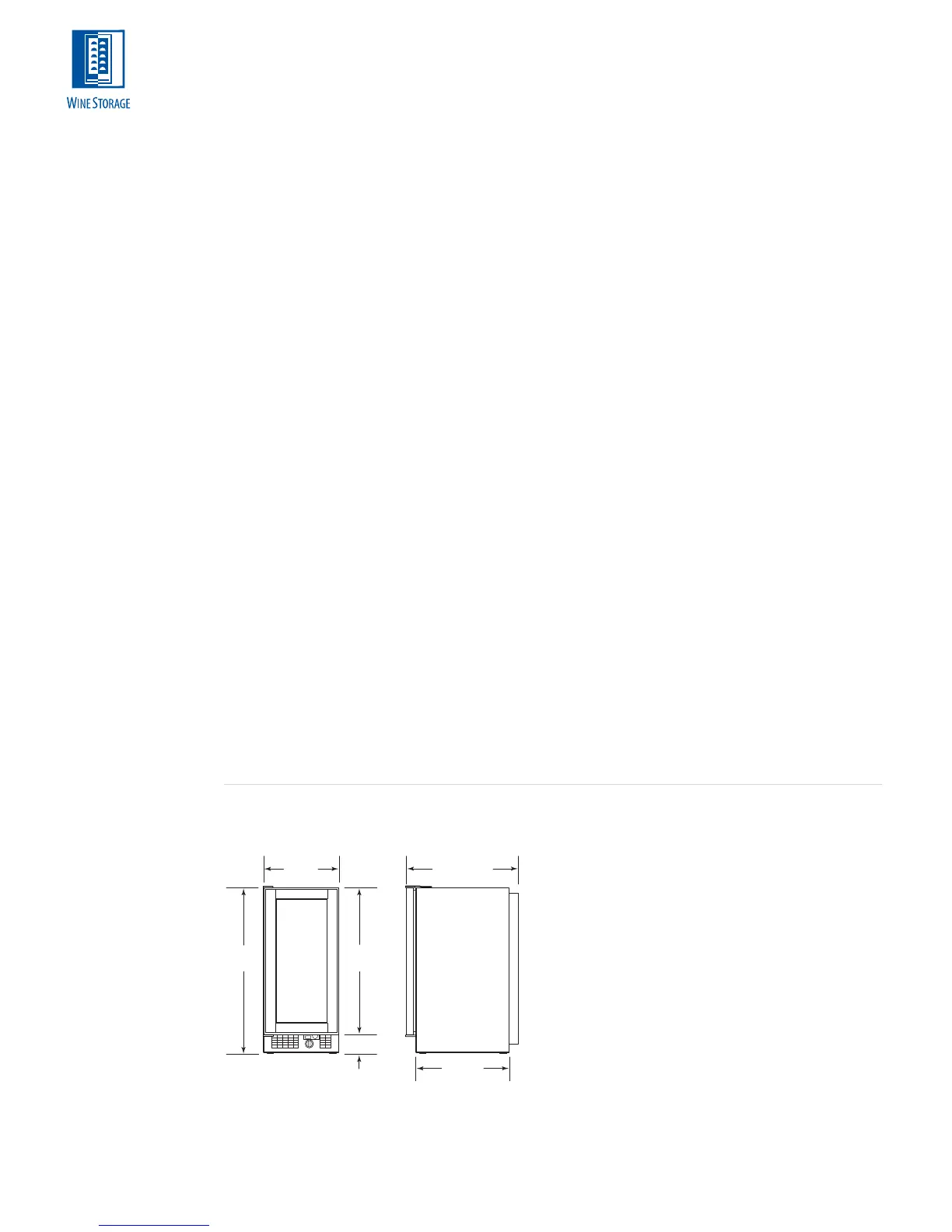

MODEL 424FS – FREE-STANDING
The free-standing Model 424FS does not require
any panels or surrounding cabinetry. It has a
beautiful classic stainless steel exterior, door
frame and handle. Refer to the Overall Dimen-
sions illustration for the Model 424FS.
15
1
/4"
(387)
22
3
/8" (568)
FRONT VIEW
34
1
/16"
(865)
30
1
/16"
(764)
4" (102)
19" (483)
SIDE VIEW
TOE
KICK
OVERLAY PANEL SPECIFICATIONS
Model 315W
Door Panel Width 15" (381)
Door Panel Height 30
1
/16" (764)
Min Width of Rails and Stiles 2
1
/4" (57)
Door Frame Panel Weight Limit 10 lbs (5 kg)
Min Panel Thickness
5
/8" (16)
CABINETRY DIMENSIONS
Model 315W
