Air Flow & Fan Blade Spacing
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
5-6
#3758407 - Revision B - August, 2006

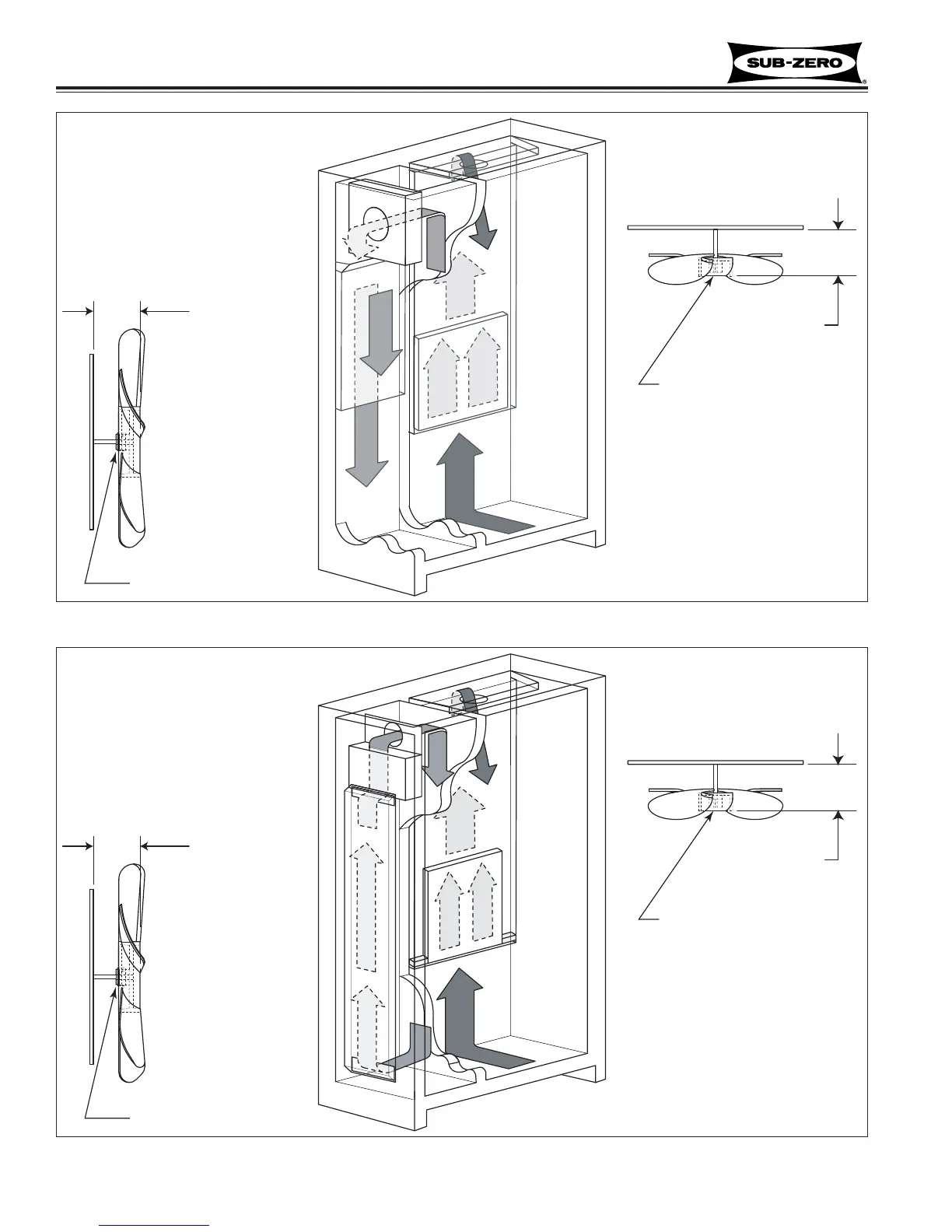

Figure 5-9. Air Flow and Fan Blade Spacing, Model 695-2 (Prior to Serial #2269189)
Clamp Down
REFRIGERATOR
FAN BRACKET TO FAN
BLADE HUB SPACING
Clamp Back
FREEZER
FAN BRACKET TO FAN
BLADE HUB SPACING
1-1/4" ± 1/16"
(31.75 mm ± 1.59 mm)
7/8" ± 1/16"
(22.23 mm ± 1.59 mm)
Figure 5-10. Air Flow/Fan Blade Space, 685-2 (Starting w/Serial #2271174), 695-2 (Starting w/Serial #2269189)
Clamp Down
REFRIGERATOR
FAN BRACKET TO FAN
BLADE HUB SPACING
Clamp Back
FREEZER
FAN BRACKET TO FAN
BLADE HUB SPACING
1-1/4" ± 1/16"
(31.75 mm ± 1.59 mm)
7/8" ± 1/16"
(22.23 mm ± 1.59 mm)
