FRAMED DOOR PANEL SPECIFICATIONS
All Refrigerator | All Freezer Framed (F) Models
Model 601R W H
Refrigerator Framed Panel 34
1
/8" (867) 58
15
/16" (1497)
Raised Panel Handle Recess Location –
Refrigerator Panel A) 29
15
/32" (749)
Model 601RG W H
Refrigerator Framed Panel 34
1
/8" (867) 58
15
/16" (1497)
Raised Panel Handle Recess Location –
Refrigerator Panel A) 29
15
/32" (749)
Window Cut-out Dimensions 25
3
/8" (645) 41
3
/16" (1046)
Window Cut-out Location C) 4
3
/8" (111) D) 13
3
/8" (340)
Model 601F W H
Freezer Framed Panel 34
1
/8" (867) 58
15
/16" (1497)
Raised Panel Handle Recess Location –
Freezer Panel A) 29
15
/32" (749)
IMPORTANT NOTE: Panel specifications are for Built-In framed (F)
models. Panel specifications for overlay models are on pages 25–26.
FRAMED DOOR PANEL SPECIFICATIONS
Over-and-Under Framed (F) Models
Model 611 W H
Refrigerator Framed Panel 28
1
/8" (714) 48
1
/16" (1221)
Freezer Framed Panel 28
1
/8" (714) 18
3
/8" (467)
Raised Panel Handle Recess Location –
Refrigerator Panel A) 24
1
/32" (610)
Freezer Panel B) 14
1
/16" (357)
Model 611G W H
Refrigerator Framed Panel 28
1
/8" (714) 48
1
/16" (1221)
Freezer Framed Panel 28
1
/8" (714) 18
3
/8" (467)
Raised Panel Handle Recess Location –
Refrigerator Panel A) 24
1
/32" (610)
Freezer Panel B) 14
1
/16" (357)
Window Cut-out Dimensions 19
3
/8" (492) 39
5
/16" (999)
Window Cut-out Location C) 4
3
/8" (111) D) 4
3
/8" (111)
Model 650 W H
Refrigerator Framed Panel 34
1
/8" (867) 48
1
/16" (1221)
Freezer Framed Panel 34
1
/8" (867) 18
3
/8" (467)
Raised Panel Handle Recess Location –
Refrigerator Panel A) 24
1
/32" (610)
Freezer Panel B) 17
1
/16" (433)
Model 611G W H
Refrigerator Framed Panel 34
1
/8" (867) 48
1
/16" (1221)
Freezer Framed Panel 34
1
/8" (867) 18
3
/8" (467)
Raised Panel Handle Recess Location –
Refrigerator Panel A) 24
1
/32" (610)
Freezer Panel B) 17
1
/16" (433)
Window Cut-out Dimensions 25
3
/8" (645) 39
5
/16" (999)
Window Cut-out Location C) 4
3
/8" (111) D) 4
3
/8" (111)
IMPORTANT NOTE: Panel specifications are for Built-In framed (F)
models. Panel specifications for overlay models are on pages 25–26.

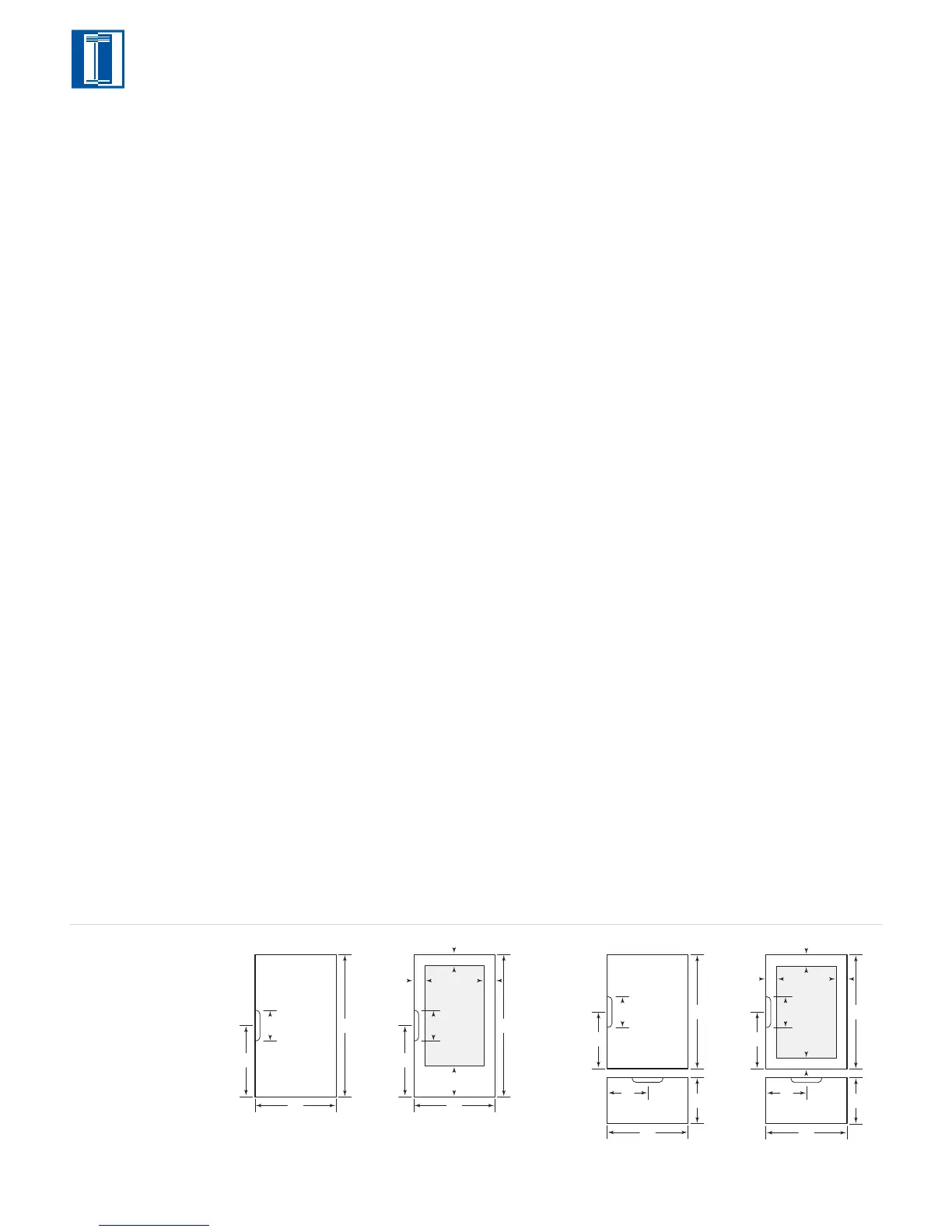

Models 601R
and 601F
Model 601RG
Models 611 and 650 Models 611G and 650G
C
W
H
A
C C
D
14"(356)
W
H
A
14"(356)
FRAMED PANELS
Panel specifications
are for Built-In
framed (F) models.
To install framed
panels, see the
detailed procedures
outlined in the
Sub-Zero Built-In
Installation Guide.
