INSTALLING SIDE PANELS
If you’re installing a unit with side panels, check with your
installer or use one of the side panel installation options
shown in illustration 22.
Drill three holes equidistant in a vertical section of the alu-
minum frame, and install pan head screws. Do not drill
through model and serial number plate. Anchor the side
panel with decorative screws or finishing nails from a local
hardware store. Do not use adhesives. See illustration 21.
The dimensions given in illustration 22 are for typical wood
side panels. If a 1/4" (6) or less panel is used and inserted
into the return channel extrusion, then a 24-1/4" (616) size
is necessary for width. The sheet must also be notched for
grille and other brackets or screws that are in the return
channel. This is only necessary on this application.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
The overall height on the side panel will vary with the
height of the grille being used. Make sure you know your
finished height before cutting any panels.
16
600
SERIES
24" (610)
24" (610)
24
1
/4" (616)
FRAME

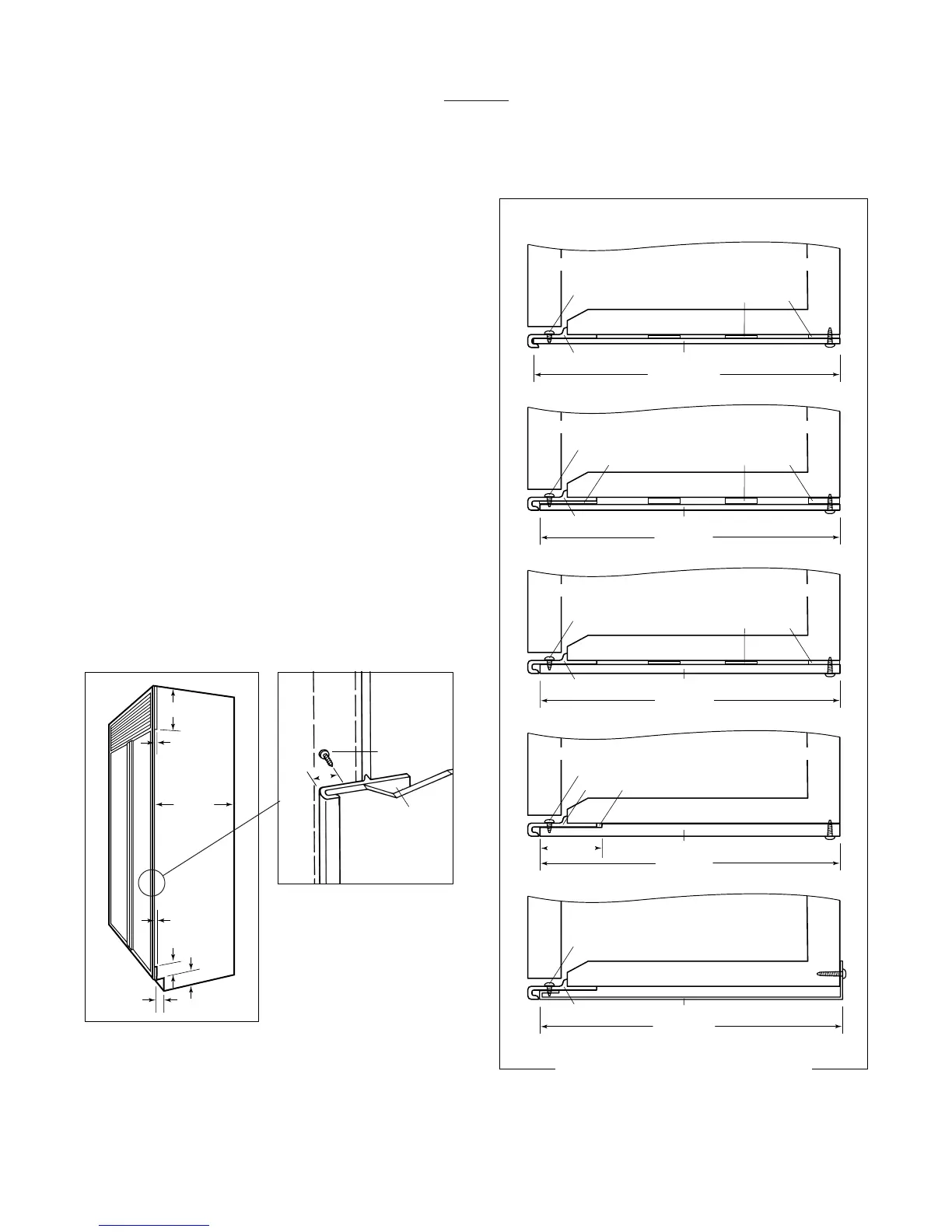

1/4" (6) THICK SIDE PANEL FITTED IN TO UNIT FRAME
600 SERIES SIDE PANEL OPTIONS (top view)
1/8" (3) THICK BATTENS
DOOR PAN HEAD SCREW
SIDE OF SUB-ZERO UNIT
1/4" (6) SIDE PANEL MATERIAL
FRAME
3/8" (10) THICK SIDE PANEL FITTED UP TO UNIT FRAME
1/8" (3) THICK BATTENS
DOOR PAN HEAD SCREW
SIDE OF SUB-ZERO UNIT
3/8" (10) SIDE PANEL MATERIAL
24" (610)
FRAME
METAL SIDE PANEL FITTED UP TO UNIT FRAME
DOOR PAN HEAD SCREW
SIDE OF SUB-ZERO UNIT
METAL SIDE PANEL MATERIAL
24" (610)
FRAME
1/2" (13) THICK SIDE PANEL FITTED UP TO UNIT FRAME
1/8" (3) ROUT
DOOR PAN HEAD SCREW
SIDE OF SUB-ZERO UNIT
1/2" (13) SIDE PANEL MATERIAL
NOTE: Dimensions in parentheses are in millimeters.
FRAME
1/4" (6)
THICK BATTENS
DOOR PAN HEAD SCREW
SIDE OF SUB-ZERO UNIT
1/4" (6) SIDE PANEL MATERIAL
1/4" (6) THICK SIDE PANEL FITTED UP TO UNIT FRAME
1/8" (3) THICK BACK-UP
2
1
/
2
"
(64)
