Dual Installation 37
subzero.com/specs
Grille panel dimensions listed are for standard 84" (2134)
nominal finished height. For 83" (2108) finished height,
subtract 1"
(25) from grille panel height dimensions. For 88"
(2235) finished height, add 4" (102) to grille panel. Width
dimensions do not vary.
Models BI-30U and BI-30UG
REFRIGERATOR WH
Flush Inset Panel 30
1
/2" (775) 50
1
/8" (1273)
Spacer Panel 29
1
/8" (740) 49
5
/16" (1253)
Backer Panel 29
3
/4" (756) 49
15
/16" (1268)
FREEZER WH
Flush Inset Panel 30
1
/2" (775) 19" (483)
Spacer Panel 29
1
/8" (740) 18
1
/16" (459)
Backer Panel 29
3
/4" (756) 18
11
/16" (475)
GRILLE WH
Flush Inset Panel 30
1
/2" (775) 9
1
/4" (235)
Spacer Panel 29
1
/8" (740) 8
5
/16" (211)
Backer Panel 29
3
/4" (756) 8
15
/16" (227)
BI-30UG WH
Window Cut-Out 19" (483) 39
5
/8" (1006)
AB
Cut-Out Location 5
3
/4" (146) 5
1
/4" (133)
Models BI-36R, BI-36RG and BI-36F
REFRIGERATOR / FREEZER WH
Flush Inset Panel 36
1
/2" (927) 69
3
/4" (1772)
Spacer Panel 35
1
/8" (892) 68
15
/16" (1751)
Backer Panel 35
3
/4" (908) 69
9
/16" (1767)
GRILLE WH
Flush Inset Panel 36
1
/2" (927) 9
1
/4" (235)
Spacer Panel 35
1
/8" (892) 8
5
/16" (211)
Backer Panel 35
3
/4" (908) 8
15
/16" (227)
BI-36RG WH
Window Cut-Out 25" (635) 54
1
/8" (1375)
AB
Cut-Out Location 5
3
/4" (146) 10
3
/8" (264)
Models BI-36U and BI-36UG
REFRIGERATOR WH
Flush Inset Panel 36
1
/2" (927) 50
1
/8" (1273)
Spacer Panel 35
1
/8" (892) 49
5
/16" (1253)
Backer Panel 35
3
/4" (908) 49
15
/16" (1268)
FREEZER WH
Flush Inset Panel 36
1
/2" (927) 19" (483)
Spacer Panel 35
1
/8" (892) 18
1
/16" (459)
Backer Panel 35
3
/4" (908) 18
11
/16" (475)
GRILLE WH
Flush Inset Panel 36
1
/2" (927) 9
1
/4" (235)
Spacer Panel 35
1
/8" (892) 8
5
/16" (211)
Backer Panel 35
3
/4" (908) 8
15
/16" (227)
BI-36UG WH
Window Cut-Out 25" (635) 39
5
/8" (1006)
AB
Cut-Out Location 5
3
/4" (146) 5
1
/4" (133)

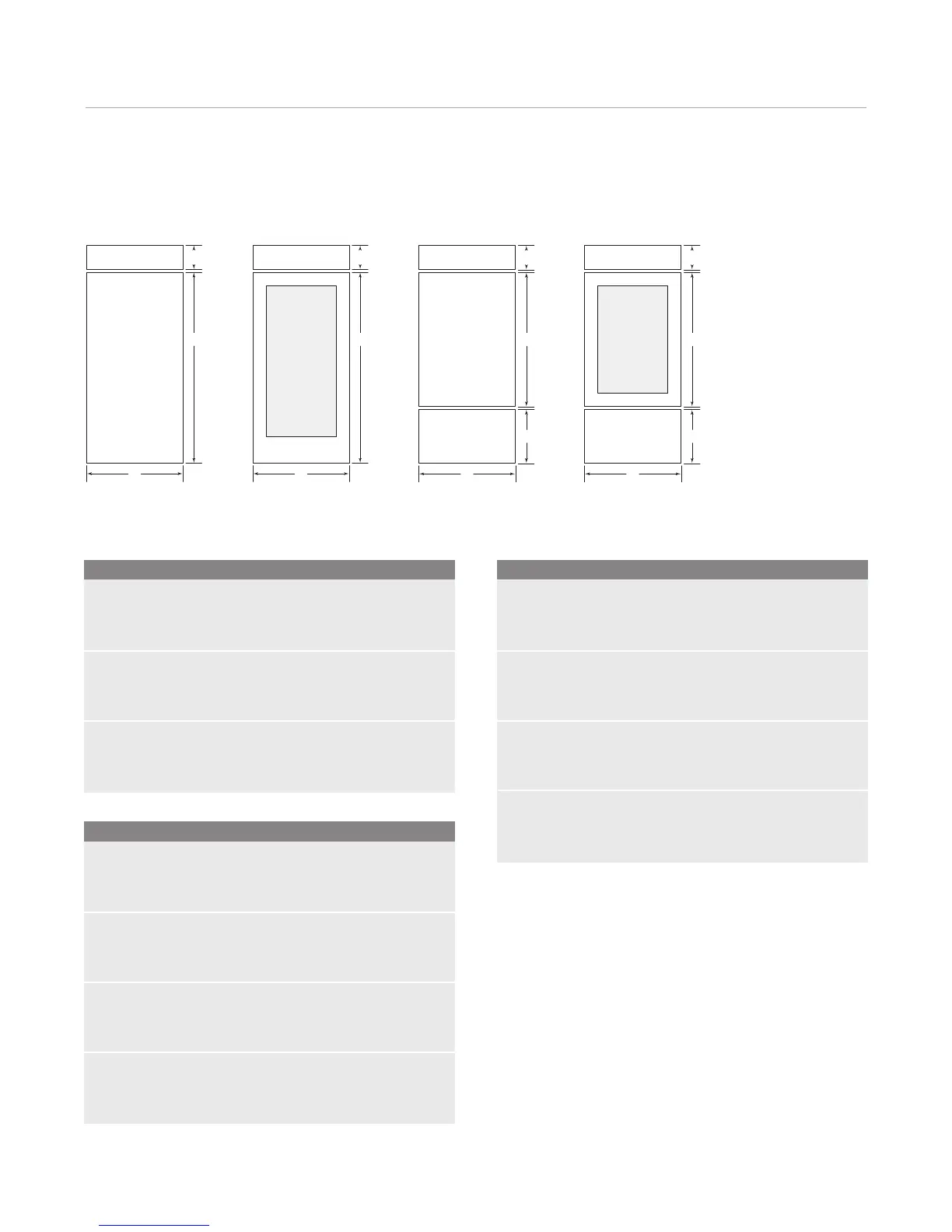

Dual Installation—Flush Inset Panel Specifications
BI-36R / BI-36F BI-36RG BI-30U / BI-36U BI-30UG / BI-36UG
