Extended Height Grille 4

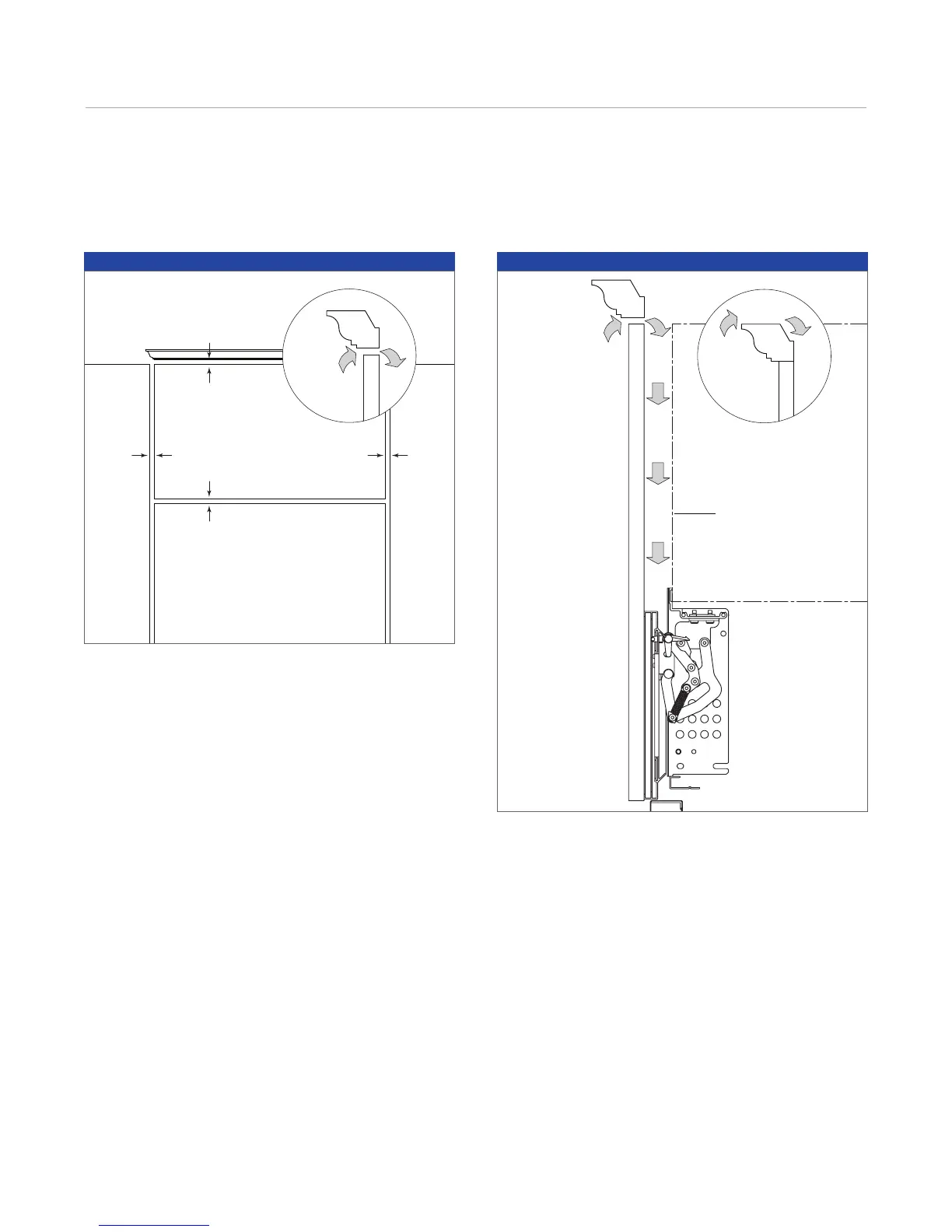

Air Flow Requirements
1
/2" (13) MIN SPACE ALL SIDES
FRONT VIEW
SIDE VIEW
AIR FLOW
Allow for at least
1
/2" (13) space on all four sides of the
grille panel for proper air flow to the refrigeration system.
For overlay models, this is behind the outer grille frame.
For flush inset models, this is around the sides, top and
bottom of the decorative grille panel.
AIR FLOW
ABOVE
MOLDING
CABINETRY
AIR FLOW
Space must be maintained between decorative grille panel
and surrounding cabinetry for air flow.
IMPORTANT NOTE: If space is not provided directly above
the top of the grille panel, it must be provided above the
upper molding of the elevation as shown in the inset
illustration.
SIDE VIEW
