BUILT-IN PRO 48 INTEGRATED WINE
Electrical
International models from the factory designed without a
transformer require a 220-240 V AC, 50/60 Hz electrical
supply, fused at the correct rating for the unit. If required
by local or national codes, the power cord can be easily
replaced using the power inlet device.

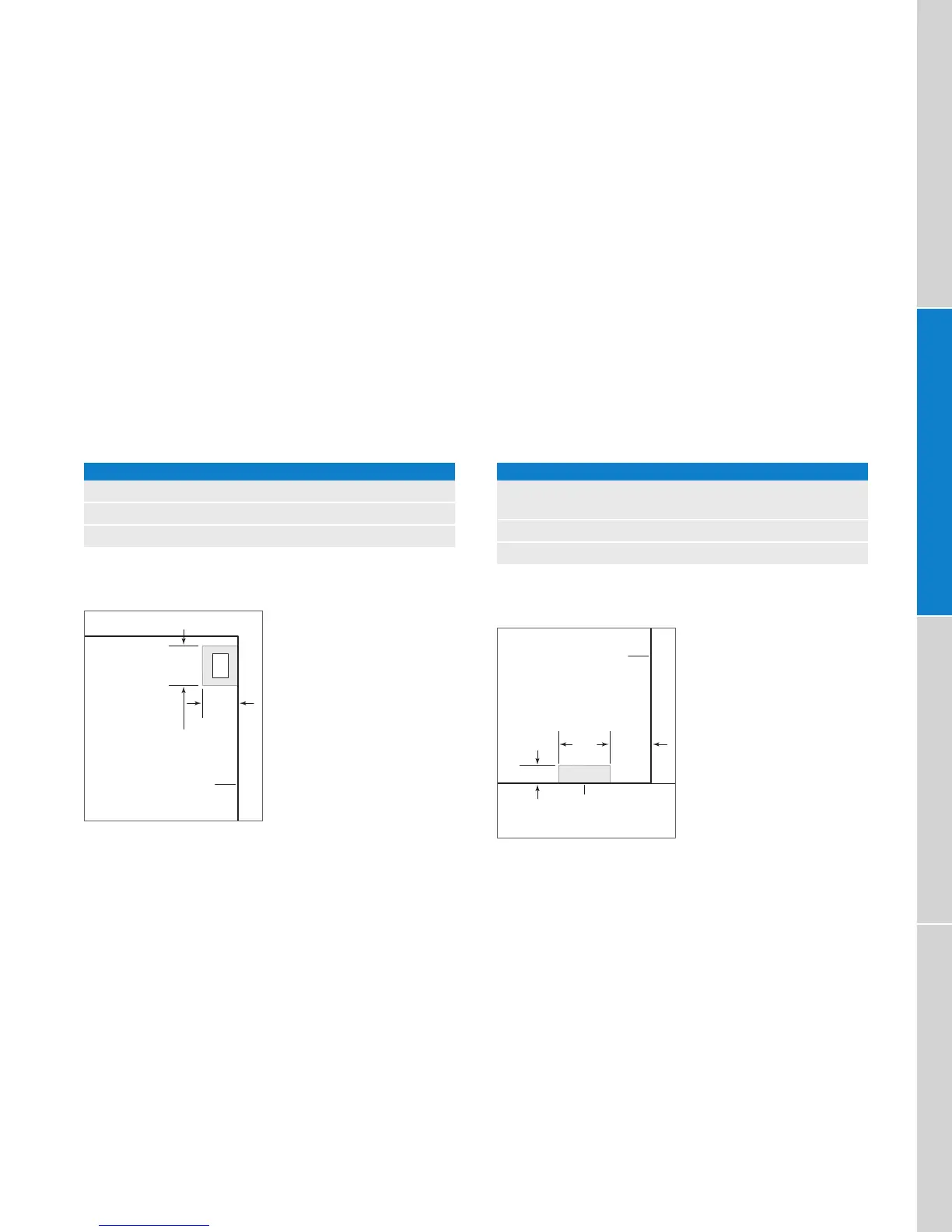

The electrical supply should be located within the shaded
area shown in the illustration below. A separate circuit, ser-
vicing only this appliance is required. A ground fault circuit
interrupter (GFCI) is not recommended and may cause inter-
ruption of operation.
Installation must comply with all applicable electrical codes.
ELECTRICAL REQUIREMENTS
Power Supply 220-240 V AC, 50/60 Hz
Circuit Breaker 1 amp
Receptacle grounding-type (earthed)
Plumbing
The water supply line should be located within the shaded
area shown in the illustration below. The water supply line
should be connected to the house supply with an easily
accessible shut-off valve. Do not use self-piercing valves.
The water supply line must not interfere with installation of
the anti-tip bracket.
A reverse osmosis system can be used provided there
is constant water pressure of 2.4–8.3 bar supplied to the
unit at all times. A copper line is not recommended for this
application.
Installation must comply with all applicable plumbing codes.
PLUMBING REQUIREMENTS
Water Supply 6.35 mm OD copper line,
braided stainless steel, or PEX tubing
Water Pressure 2.4–8.3 bar
Excess Water Line for Connection .9 m
PRO 48 REFRIGERATION
1918 mm
FROM FLOOR
178
mm
E
152
mm
RIGHT SIDE
OF OPENING
Electrical supply location.
76 mm
152
mm
132
mm
RIGHT SIDE
OF OPENING
AREA EXTENDS 13 mm
FORWARD ON FLOOR
Water supply location.
