BUILT-IN PRO 48 INTEGRATED WINE
WINE STORAGE
Opening Dimensions
INTEGRATED WINE STORAGE
OPENING DIMENSIONS
COLUMN W H
ICBIW-18 457 mm 2134 mm
ICBIW-24 610 mm 2134 mm
ICBIW-30 762 mm 2134 mm
TALL W H
ICBIW-30R 762 mm 2134 mm
The depth of each integrated (ICBIW) model is 610 mm.
Allow for panel thickness when planning the nished
opening depth. A minimum 89 mm nished return is
required on all sides of the opening. Framed cabinets will
require additional nished ller material behind the face
frame for a proper installation. Refer to the illustration.
DUAL INSTALLATION
The unit can be installed next to an integrated refrigera-
tion model or another integrated wine storage model in a
dual installation. When installing two units side by side, the
opening width is the width of the two units added together.
A dual installation kit will be required for this installation. If a
dual installation kit is not specied, a minimum 51 mm ller
strip is required between units.
Dual installation kits are available through an authorized
Sub-Zero dealer. For questions regarding the installation,
contact your authorized Sub-Zero dealer.

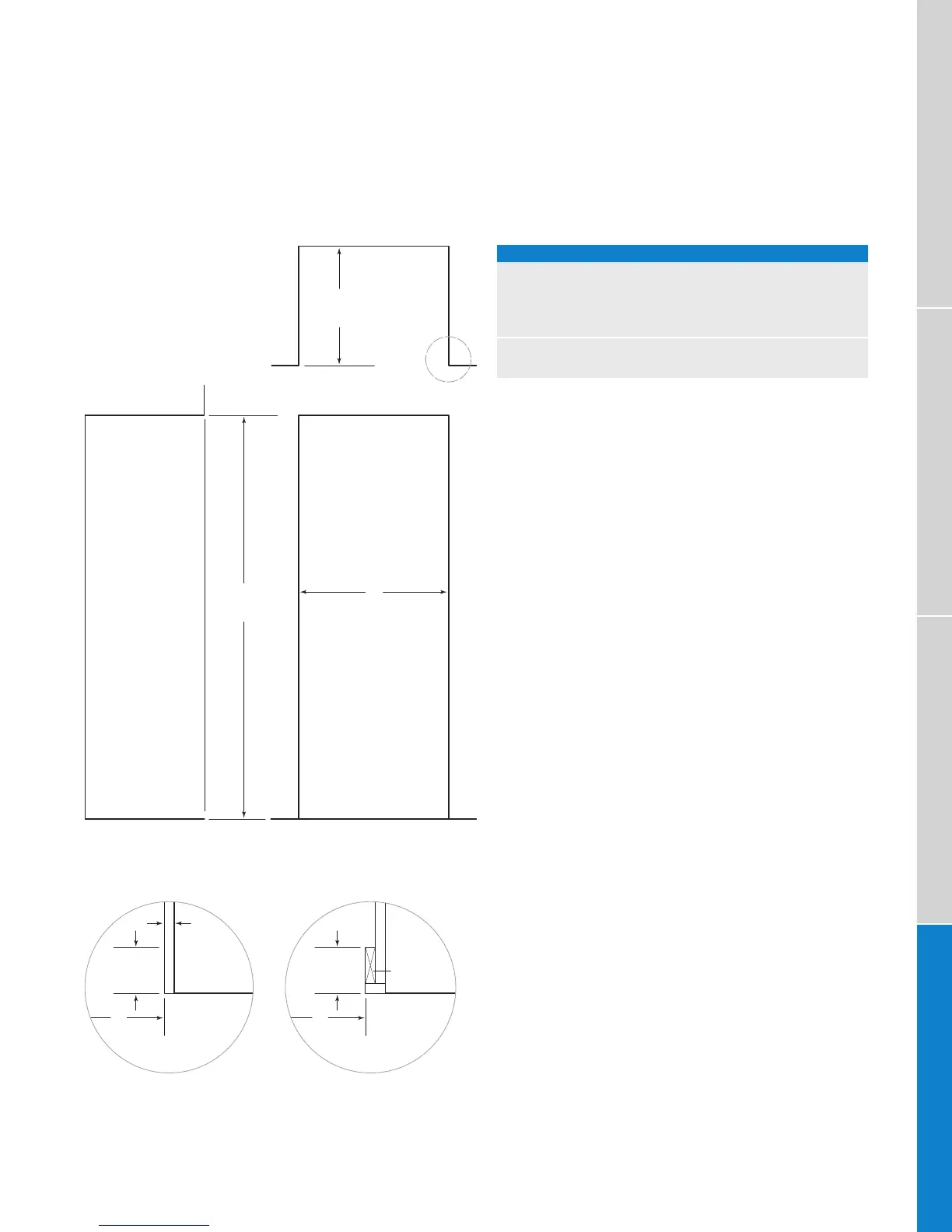

635 mm
OPENING
DEPTH
W
OPENING WIDTH
H
OPENING
HEIGHT
NOTE: 89 mm
finished returns will be visible and should be finished to match cabinetry.
SIDE
VIEW
TOP VIEW
FRONT VIEW
89 mm
FINISHED
RETURN
FRAMELESS CABINETRY
19
mm
TYPICAL
89 mm
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W W
