subzero.com | 51
BUILT-IN PRO 48 INTEGRATED WINE
WINE STORAGE

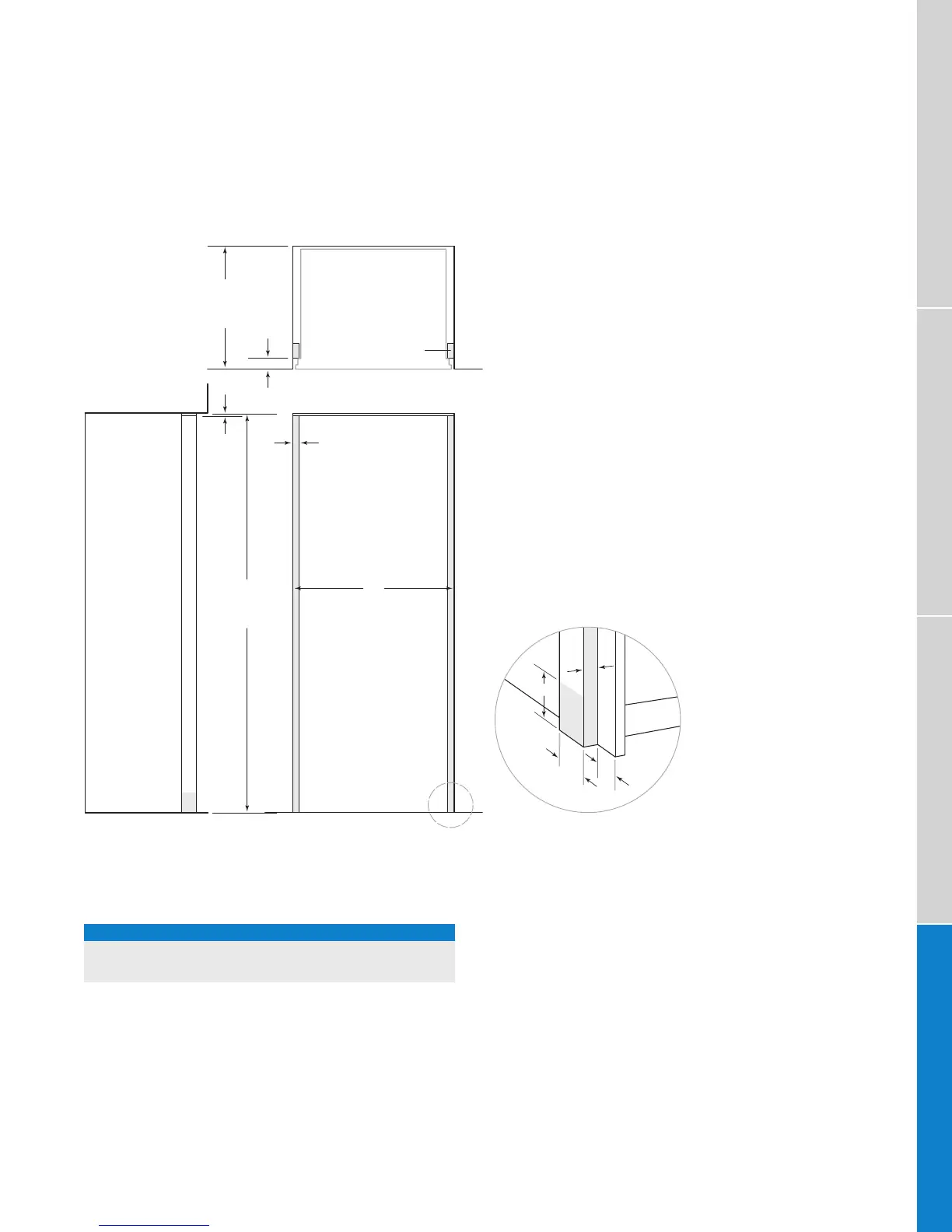

Opening Dimensions
MODEL ICBWS-30 FLUSH INSET INSTALLATION
FLUSH INSET WIDTH
MODEL W
ICBWS-30 813 mm
Dimensions assume a 19 mm panel thickness.
If a 2108 mm grille height is specied, the ush inset height
must be decreased by 22 mm. If a 2235 mm grille height is
specied, the ush inset height must be increased by 102
mm.
If two units are installed side by side, refer to page 53 for
dual ush inset installations.
2134 mm
FLUSH
INSET
HEIGHT
6 mm
665 mm
FLUSH
INSET
DEPTH
56
mm
*
76 mm typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with
19 mm panel.
FRONT VIEW
SIDE
VIEW
TOP VIEW
FINISHED
CLEATS*
32 mm
W
FLUSH INSET WIDTH
102 mm
32
mm
56
mm
76
mm*
TYPICAL
