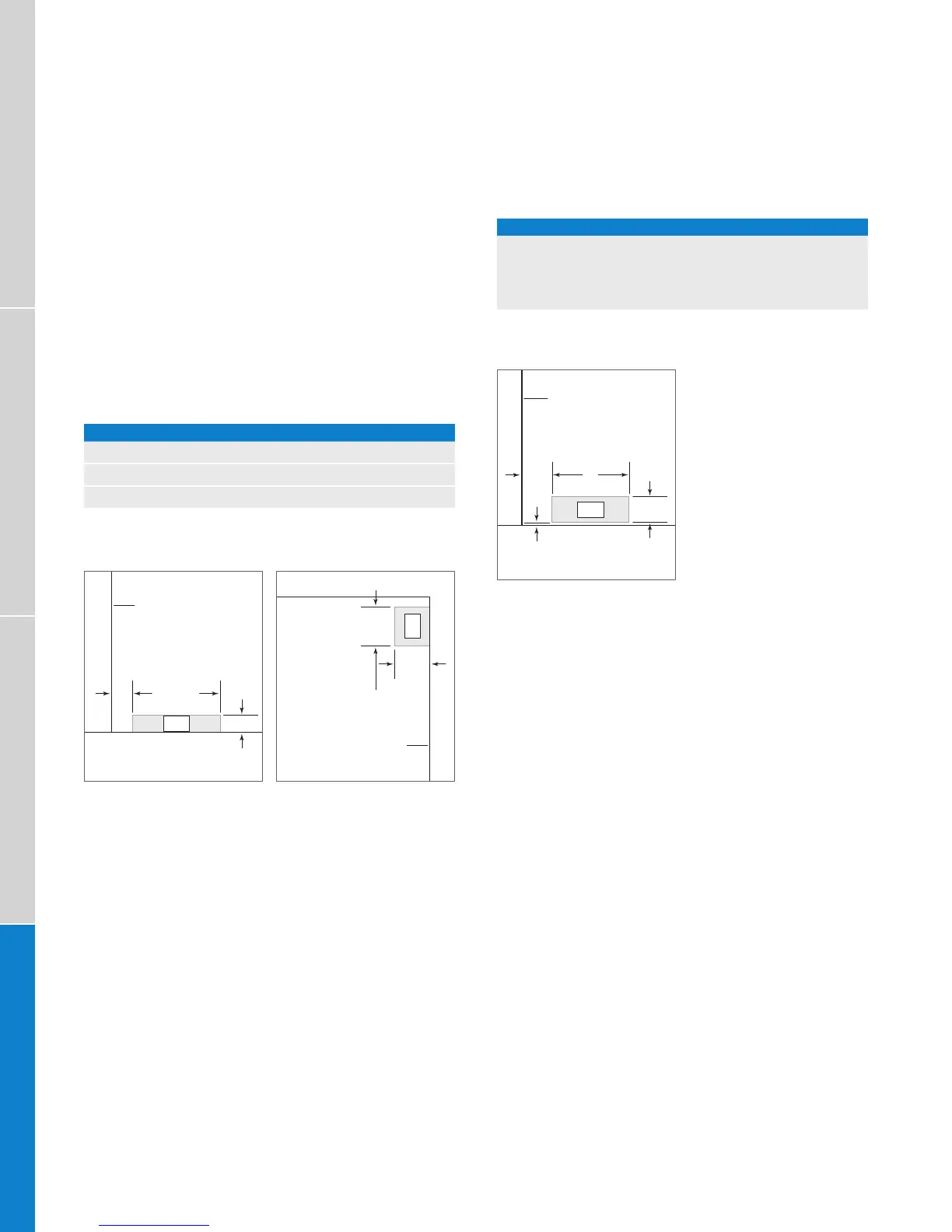

ELECTRICAL SUPPLY LOCATION
MODEL A
ICBIW-18 152 mm
ICBIW-24 241 mm
ICBIW-30, ICBIW 30R 318 mm
Electrical
The electrical supply must be located within the shaded
area shown in the illustration for your specic model.
For integrated (ICBIW) models, also refer to the chart. A
separate circuit, servicing only this appliance is required. A
ground fault circuit interrupter (GFCI) is not recommended
and may cause interruption of operation.
If the unit will be connected to a home security system,
allow 914 mm of excess wiring for proper connection.
Installation must comply with all applicable electrical codes.
ELECTRICAL REQUIREMENTS
Power Supply 220-240 V AC, 50/60 Hz
Circuit Breaker 10 amp
Receptacle grounding-type (earthed)
WINE STORAGE
76 mm
394 mm
51
mm
LEFT SIDE
OF OPENING
FLOOR
E
1918 mm
FROM FLOOR
178
mm
E
152
mm
RIGHT SIDE
OF OPENING
Model ICB424G.
Model ICBWS-30.
A
6 mm
108
mm
114
mm
FLOOR
LEFT SIDE
OF OPENING
E
Integrated (ICBIW) models.
WINE INTEGRATED PRO 48 BUILT-IN
